Bianco Summit VMS1-130 Solar AC/DC Vertical Multistage Variable Speed Packaged Pump Station with Flexi-Solar Controller (Max 40LPM/1190kPa)

The Bianco Summit VMS1-130 Solar Packaged Pump Station is a high-pressure, solar-compatible water boosting solution engineered for precise, energy-efficient performance in off-grid and hybrid applications. Delivering up to 40 litres per minute at an impressive 1190kPa, this system is ideal for installations requiring significant pressure lift—such as high-elevation water transfer, long-line reticulation, or high-pressure irrigation.

Built around the Bianco VMS1-130 vertical multistage pump, the system features 304 stainless steel construction throughout for exceptional corrosion resistance and mechanical durability. The unit comes fully assembled on a galvanised base (single, double, or triple as required) and includes a 304 stainless steel manifold, WaterMarked spring check valve, stainless steel isolation ball valve, counter flanges (DN25–DN65) with fibre gaskets, a 30-bar liquid-filled pressure gauge, and a 10-bar rated stainless steel pressure tank with isolator valve.

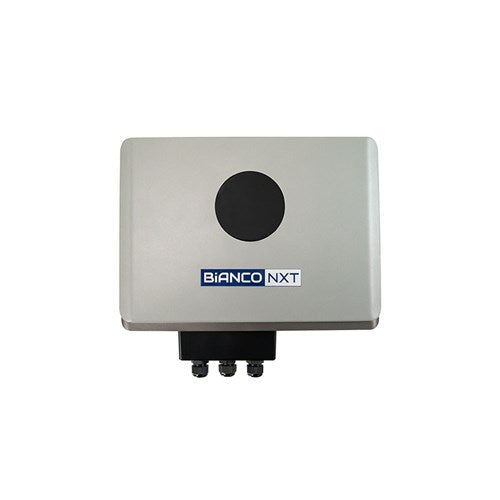

Control and efficiency are provided by the Flexi-Solar Controller, supporting both AC mains and DC solar input. The integrated Variable Frequency Drive (VFD) allows soft starting, dynamic speed adjustment, and constant pressure output based on real-time demand. Paired with a 4–20mA pressure transducer, the system ensures smooth, stable operation even under fluctuating solar conditions.

FEATURES

• Complete solar AC/DC variable speed pressure pump station
• Flexi-Solar Controller allows off-grid, hybrid, or grid-tied power supply
• Stainless steel Bianco VMS10-20 multistage pump (Max 210LPM/230kPa)
• 304 stainless steel manifold, check valve, and isolation ball valve
• Counter flanges (DN25 to DN65) and fibre gaskets included
• 30-bar pressure gauge and pressure tank included
• Pre-assembled on galvanised base and fully function-tested
• Operates with liquid temperatures up to 120°C
• Smooth, efficient starts via integrated VFD
• 4–20mA pressure transducer for precise control and efficiency

APPLICATIONS

• Off-grid and hybrid solar water supply systems
• Agricultural irrigation with solar automation
• Remote pump stations and livestock watering
• Solar-powered building or facility water boosting
• Pressure boosting for rural and semi-urban solar setups

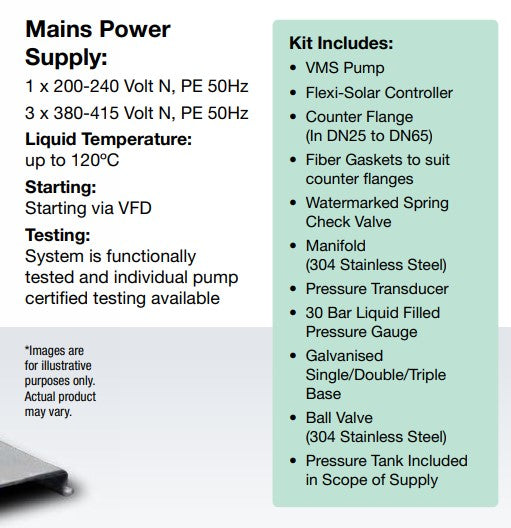

KIT INCLUDES

• VMS Pump
• Flexi-Solar Controller
• Counter Flange (In DN25 to DN65)
• Fiber Gaskets to suit counter flanges
• Watermarked Spring Check Valve
• Manifold (304 Stainless Steel)
• Pressure Transducer
• 30 Bar Liquid Filled Pressure Gauge
• Galvanised Single/Double/Triple Base
• Ball Valve (304 Stainless Steel)
• Pressure Tank Included in Scope of Supply
