Davey VM3 Series 304 Stainless Steel Vertical Multistage Pumps Three Phase (Max 75LPM)

The VM5 Series 304 Stainless Steel Vertical Multistage Pumps Three Phase offers a high level of corrosion and abrasion resistance with low maintenance and easy installation. This centrifugal pump range is ideal for pumping clean, non-aggressive liquids without any suspended fibers.

Our vertical multistage pumps save valuable floor space and feature quality stainless-steel construction for extended durability. With a high efficiency impeller design, these pumps offer low operating costs and optimal performance with fewer stages required.

The VM5 Series is compliant and has been verified to meet the AS/NZS 4020 standard. This standard ensures that products in contact with drinking water do not alter its taste or appearance, impede the growth of micro-organisms, or discharge harmful compounds or metals into the water.

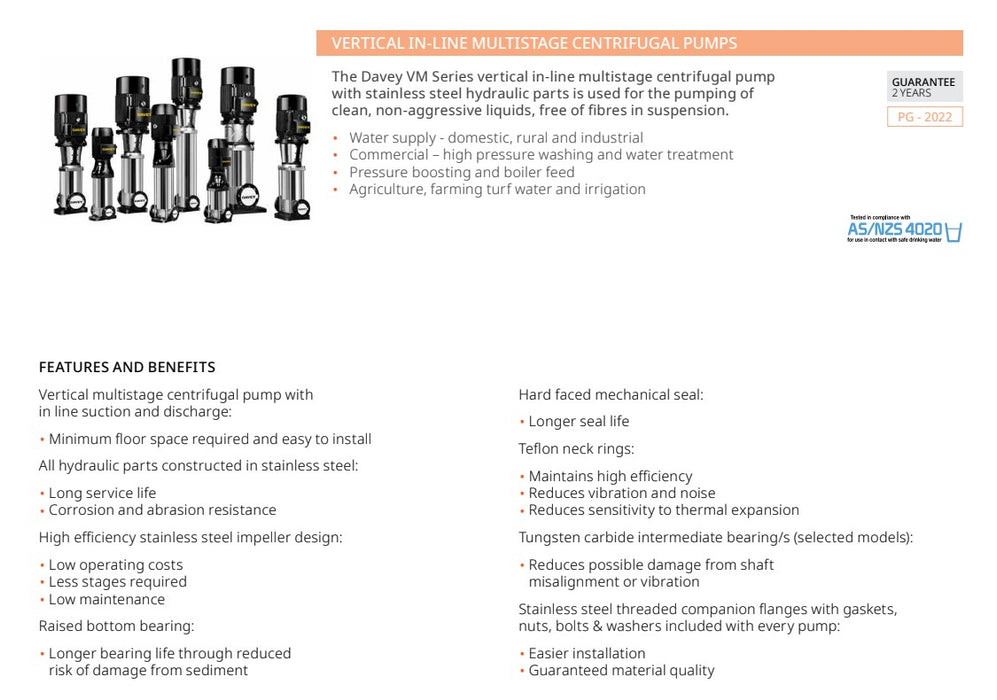

FEATURES

• Minmum floor space required and easy to install
• Long service life
• Corrosion and abrasion resistance
• Low operating costs
• Less stages required
• Low maintenance
• Longer bearing life through reduced risk of damage from sediment
• Tungsten carbide intermediate bearings reduces possible damage from shaft misalignement

SPECIFICATIONS

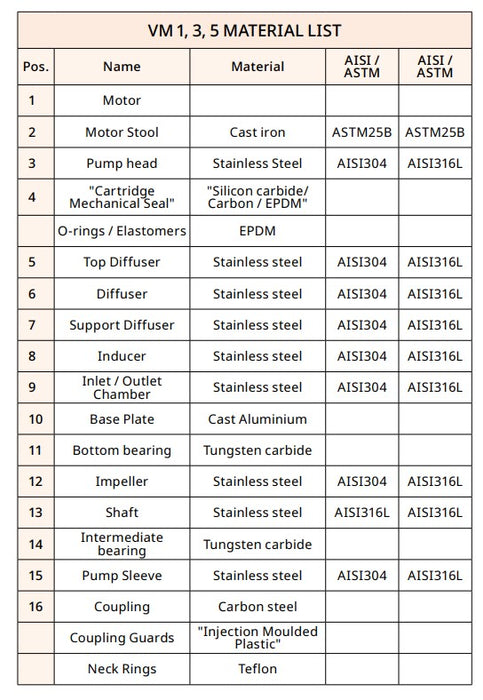

• All stainless-steel pump ends; hydraulic parts are 304SS grade and shafts are 316SD grade for better corrosion and abrasion resistance
• Operational in temperatures between -15c - +70c
• Suitable for outdoor applications with an IP55 rating
• Teflon neck rings provide less vibration, noise and sensitivity to thermal expansion, to help maintain high efficiency
• Raised bottom bearings to reduce any risk of damage from sediment
• Threaded 304SS companion flanges with gaskets, nuts, bolts and washers are included with every pump

APPLICATIONS

• Water supply - domestic, rural and indstrial
• Commercial - high pressure washing and water treatment
• Pressure boosting and boiler feed
• Agricu;true, farming turf water and irrigation
