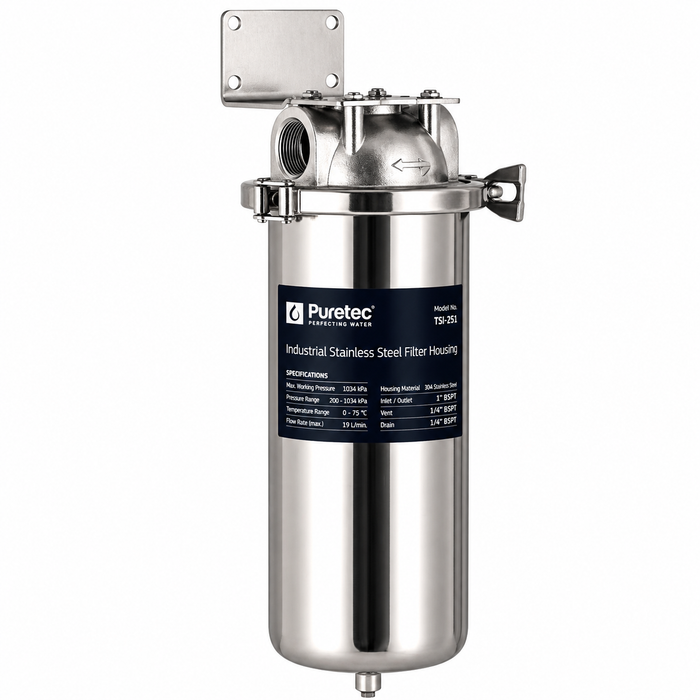

Puretec TSI-251 25mm Industrial 304 Stainless Steel 10" Water Filter Housing

The Puretec TSI-251 is a heavy-duty industrial stainless steel filter housing designed for high-demand water filtration applications where durability, flow capacity, and long-term reliability are essential. Featuring a 25mm (1") BSP connection, this model delivers improved flow performance compared to smaller housings, making it ideal for commercial, agricultural, and industrial systems requiring consistent water supply.

Constructed from premium 304 stainless steel, the TSI-251 offers excellent corrosion resistance and strength, ensuring dependable operation in harsh environments. Its polished internal and external surfaces promote hygienic performance, while the robust clamp design allows for fast and easy cartridge servicing—minimising downtime in critical systems.

FEATURES

• Heavy-duty 304 stainless steel construction for long service life
• 25mm (1") BSP inlet/outlet for higher flow capacity
• Suits standard 10" x 2.5" filter cartridges
• Flow rate up to 19 LPM (cartridge dependent)
• Suitable for hot and cold water up to 75°C
• Quick-release clamp for fast and easy maintenance
• Corrosion-resistant polished finish inside and out
• Designed for rugged commercial and industrial installations


APPLICATIONS

• Commercial water filtration
• Industrial process water filtration
• Agricultural and farm water systems
• Sediment filtration
• Chlorine and taste reduction
• Pre-filtration for UV systems
• Pre-filtration for reverse osmosis systems
• Food service and hospitality water treatment

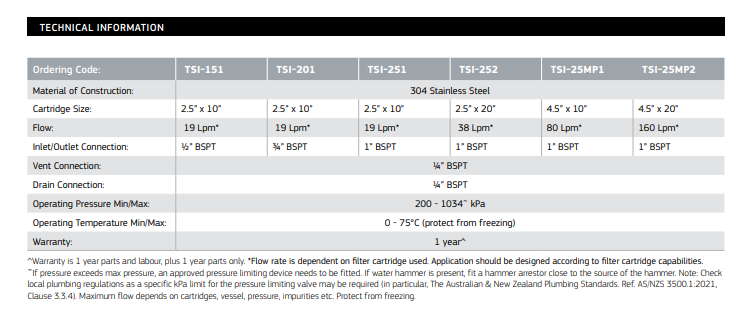

SPECIFICATIONS

• Model: TSI-251
• Housing Material: 304 Stainless Steel
• Cartridge Size: 10" x 2.5"
• Maximum Flow Rate: 19LPM*
• Connection Size: 1" BSPT
• Vent Connection: ¼" BSPT
• Drain Connection: ¼" BSPT
• Pressure Range: 200 – 1034kPa
• Temperature Range: 0 – 75°C
