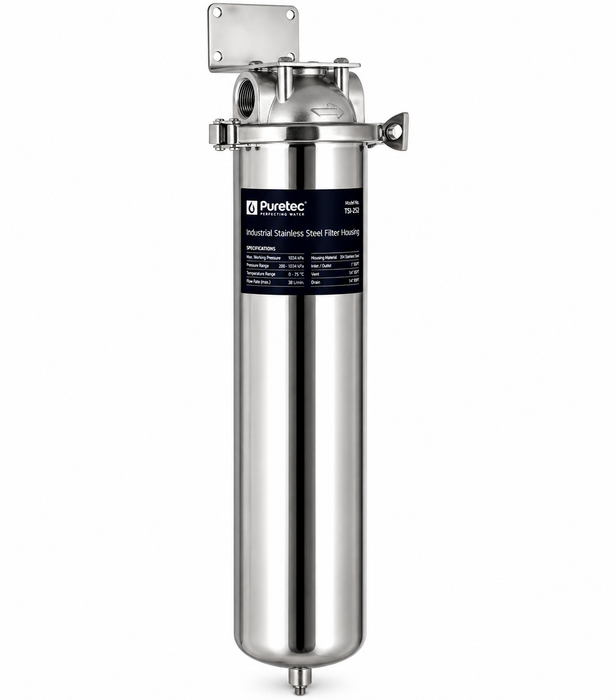

Puretec TSI-252 25mm Industrial 304 Stainless Steel 20" Water Filter Housing

The Puretec TSI-252 is a high-capacity industrial stainless steel filter housing designed for applications requiring greater flow rates and extended filtration capacity. Featuring a 20" x 2.5" cartridge size and 25mm (1") BSP connections, this model is ideal for commercial, agricultural, and industrial systems where maintaining flow and reducing cartridge change frequency is critical.

Constructed from durable 304 stainless steel, the TSI-252 delivers excellent corrosion resistance and long-term reliability in harsh environments. Its polished internal and external surfaces ensure hygienic operation, while the heavy-duty clamp design allows for quick and easy servicing—minimising downtime.

FEATURES

• Heavy-duty 304 stainless steel construction for durability
• Suits standard 20" x 2.5" filter cartridges
• 25mm (1") BSP inlet/outlet for strong flow performance
• High flow rate up to 38 LPM (cartridge dependent)
• Suitable for hot and cold water up to 75°C
• Quick-release clamp for easy cartridge servicing
• Polished internal and external finish for hygienic use
• Designed for rugged commercial and industrial environments


APPLICATIONS

• Commercial water filtration
• Industrial process water filtration
• Agricultural and farm water systems
• Sediment filtration
• Chlorine and taste reduction
• Pre-filtration for UV systems
• Pre-filtration for reverse osmosis systems
• Food service and hospitality water treatment

SPECIFICATIONS

• Material: 304 Stainless Steel
• Cartridge Size: 20" x 2.5"
• Flow Rate: Up to 38 LPM (cartridge dependent)
• Inlet/Outlet: 1" BSPT (25mm)
• Pressure Range: 200 – 1034 kPa
• Temperature Range: 0 – 75°C
• Vent Connection: ¼" BSPT
• Drain Connection: ¼" BSPT
