Puretec UFC746 50mm Industrial 316 Stainless Steel Multi Cartridge Filter Housing

The Puretec UFC746C 50mm Industrial 316 Stainless Steel Multi Cartridge Filter Housing (55L) is a high-capacity, heavy-duty filtration system designed for large-scale commercial and industrial applications where maximum flow and reliability are critical. Constructed from premium 316 stainless steel, this housing offers superior corrosion resistance, making it ideal for harsh environments including coastal, chemical, and high-mineral water conditions.

Engineered for high-flow performance, the UFC746C features a multi-cartridge design accommodating 7 x 40” standard 2.5” cartridges, dramatically increasing filtration surface area while reducing pressure loss. This ensures efficient removal of sediment, chlorine, and general contaminants across high-demand systems while maintaining consistent flow rates.

With a maximum flow rate of up to 466 litres per minute (28 m³/hr), the UFC746C is one of the highest-capacity housings in the UFC range, making it ideal for industrial processing plants, agriculture, food production, and large commercial facilities.

Designed for versatility, the housing is compatible with a wide range of standard DOE (double open end) cartridges, allowing you to tailor filtration performance to suit your water quality requirements. The heavy-duty construction and clamp-style access ensure quick cartridge replacement and minimal downtime, while the 50mm (2”) BSPM connections allow seamless integration into existing pipework systems.

FEATURES

• Premium 316 stainless steel construction for superior corrosion resistance
• Multi-cartridge design (7 x 40”) for maximum filtration capacity
• High flow rate up to ~466LPM for large-scale industrial systems
• Suits standard 2.5” DOE cartridges for flexible filtration options
• Ideal for sediment, chlorine, and general water treatment
• Heavy-duty clamp design for fast and easy cartridge replacement
• 50mm (2”) BSPM connections for easy installation
• Polished finish for hygiene and long service life

APPLICATIONS

• Commercial water filtration
• Industrial process water filtration
• Schools and institutions
• Restaurants and hospitality venues
• Agricultural and farm water treatment
• Sediment filtration systems
• Chlorine reduction systems
• Pre-filtration for UV and RO systems

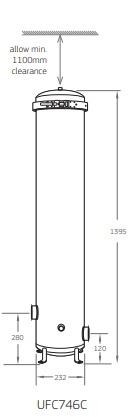

SPECIFICATIONS

• Model: UFC746C
• Material: 316 Stainless Steel
• Connection Size: 50mm (2” BSPM)
• Cartridge Capacity: 7 x 40” (2.5” diameter)
• Vessel Volume: ~55 Litres
• Maximum Flow Rate: 466 litres per minute
• Maximum Pressure: 1034 kPa
• Maximum Temperature: Up to 75°C
• Cartridge Type: DOE (Double Open End)
