Puretec Z18 Quick-Twist Undersink Water Filter System with High Loop Faucet (5LPM)

0.1 Micron Ultra Z Filtration for Beautiful, Fresh-Tasting Drinking Water

The Puretec Z18 is a premium Quick-Twist undersink water filtration system engineered to provide clean, safe and great-tasting drinking water straight from the included high loop ceramic faucet. Featuring Ultra Z 0.1-micron filtration, the Z18 significantly reduces chlorine, pesticides, bad taste, odours, organic chemicals, bacteria, dirt, rust and 99.9% of Giardia and Cryptosporidium cysts, delivering abundant crystal-clear water any time of day.

Designed specifically for mains and town water, the Z18’s compact housing allows vertical or horizontal installation without needing cupboard shelf cut-outs. The system includes a chrome-plated brass multifunction control valve, providing pressure reduction, anti–water hammer protection and dual check valve safety. Filter replacement is quick and hygienic thanks to the valve-in-head Quick-Twist mechanism, which automatically shuts off the water supply — no mess, no tools required.

Perfect for homes, offices, cafés, refrigerators with ice makers, coffee machines, vending machines and water coolers, the Z18 is a versatile, long-lasting filtration solution backed by Puretec’s impressive 10-year warranty.

FEATURES

• Filtration down to 0.1 micron* for exceptional water purity
• Reduces chlorine, pesticides, taste, odours, organic chemicals, bacteria, dirt & rust
• Removes 99.9% Giardia & Cryptosporidium cysts
• Premium DFU180 high loop faucet included
• Quick-Twist hygienic cartridge change
• Multifunction control valve (pressure limiting, anti–water hammer, dual check)
• DIY-friendly installation with all plumbing fittings included
• Compact design installs horizontally OR vertically
• Suitable for mains/town water
• 10-year warranty^

BENEFITS

• Provides cleaner, safer and noticeably better-tasting drinking water
• Advanced cyst & bacteria protection for peace of mind
• Ideal for kitchens, offices, appliances, fridges and coffee machines
• Quick, tool-free filter changes minimise maintenance time
• Dual check valve & anti-hammer protection increase plumbing lifespan
• Long warranty ensures confidence and long-term performance
• No bench-top clutter — filtered water dispensed from a stylish faucet

SPECIFICATIONS

• Model Z18

• Faucet Model DFU180

• Replacement Cartridge Puretec Z1-R

• Micron Rating 0.1 micron*

• Flow Rate 0–5 L/min

• Capacity 23,000 litres

• Min/Max Temperature 0–38°C

• Min/Max Pressure 172–520 kPa

• Connection Size ½” BSP (15 mm)

• Tap Hole Size 12.5 mm diameter

• Compliance AS/NZS 3497 – WaterMark WM74617

• Warranty 10 years^ (1 year labour + 9 years parts only)

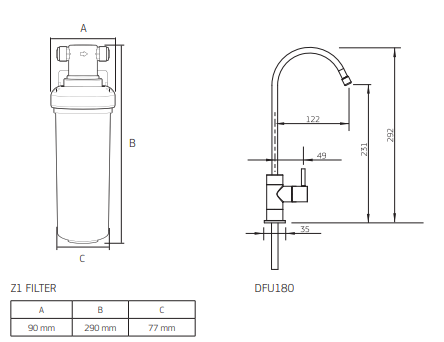

• Filter Dimensions (A/B/C) 90 mm × 290 mm × 77 mm (diagram page 1)

APPLICATIONS

• Drinking water for kitchens, break rooms and offices
• Pre-filtration for fridges with ice makers
• Water coolers, vending machines, and coffee machines
• Homes wanting premium filtration with compact installation
• Safe water supply for cooking, beverages & hydration
