Waterboy 3HRH400 Submersible Helical Solar Bore Pump Kit with 4x Solar Panels & 40m Cable

The WaterBoy 3HRH400 is the most powerful model in the 3” Helical Rotor solar pump series, delivering impressive performance for higher-lift applications. Engineered for reliable water delivery at heads up to 70 metres, it’s ideal for remote livestock watering, high-set tank filling, and off-grid pumping where strong vertical lift is required. This complete solar pump kit provides a daily output of up to 11,520 litres—making it a trusted solution for farmers and property owners seeking solar independence without sacrificing performance.

With a high-efficiency stainless steel pump, a 500W brushless DC motor, and an integrated MPPT controller, the 3HRH400 is built for the Australian outback. The system comes with 4 x 140W mono crystalline solar panels, 40 metres of prewired cabling, and either a bore cap or dam float depending on your installation. It’s a plug-and-play, low-maintenance setup designed to work where grid power can’t.

APPLICATIONS

• Stock watering on mid to large rural properties
• High-head tank filling from bores or dams
• Off-grid domestic water supply for remote homes
• Medium-depth bore water extraction
• Agricultural water transfer where high lift is needed

FEATURES

• 3” stainless steel helical rotor pump for high pressure delivery
• 500W brushless DC motor with long service life
• MPPT solar controller with integrated protections
• Adjustable speed and timer restart control
• Dry run protection (bore kits only) via low water sensor
• Cyclone-rated solar panel mount included
• Simple plug-and-play design — no app or technician required

PUMP PERFORMANCE

CONTROL BOX FEATURES

• Integrated MPPT controller to maximise solar performance
• Soft start and speed adjustment dial for flow control
• Timer dial for low water restart delay (0–30 minutes)
• LED indicators for system status, pump operation, and errors
• Terminals for:
  • Low water sensor (COM1 + WH, NC)
  • Tank full / pressure switch (COM2 + TH, NO)
• Voltage and surge protection

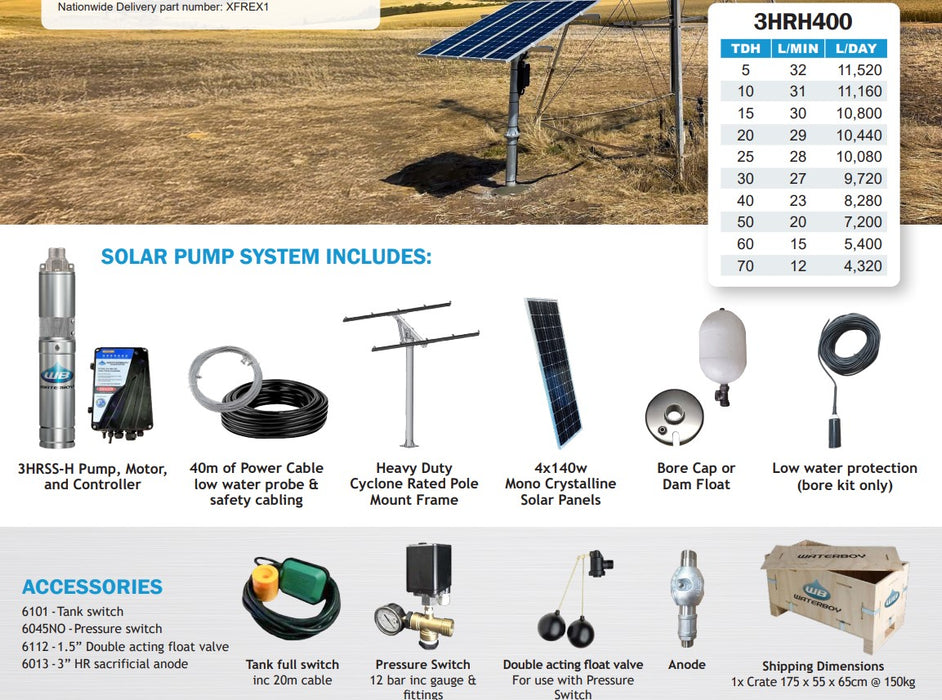

INCLUSIONS

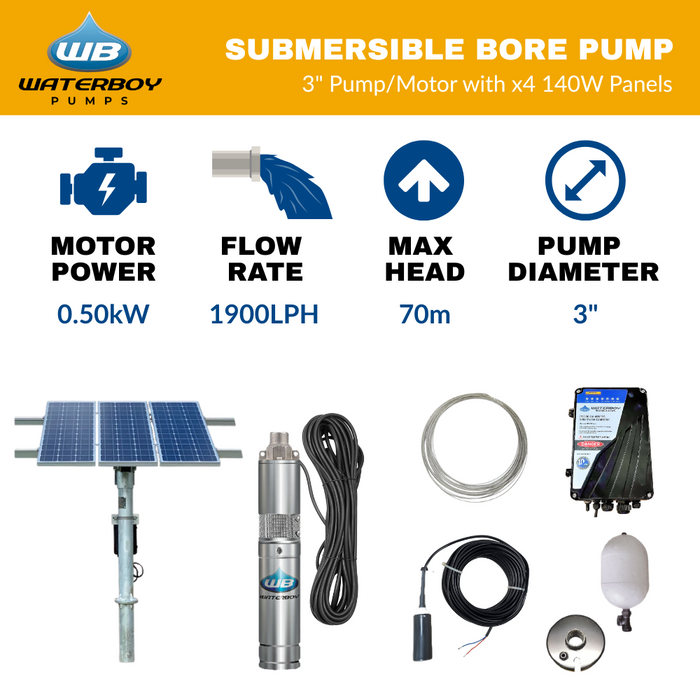

• WaterBoy 3HRH400 Submersible Pump, Motor & MPPT Controller
• x4 140W Mono Crystalline Solar Panels (Total 560W)
• Heavy Duty Cyclone-Rated Pole Mount Frame
• 40m Power Cable with Stainless Steel Safety Cable
• Bore Cap (or Dam Float for dam installations)
• Low Water Probe (included in bore kits)
• User manual and installation guide
• 4-Year Warranty on Complete System

OPTIONAL ACCESSORIES (SOLD SEPARATELY)

• 6101 – Tank Float Switch with 20m Cable
• 6045NO – Pressure Switch with 12 bar rating, gauge, and fittings
• 6112 – 1.5” Double Acting Float Valve (for use with pressure switch)
• 6013 – 3” HR Sacrificial Anode (recommended for hard or mineral-rich water)

EXCLUSIONS

• Poly pipe, fittings, and plumbing hardware
• Installation services or trenching works
• Concrete pad or ground anchors
• Additional cabling beyond 40m (available separately)

FREIGHT

• Packed in 1x crate: 175 x 55 x 65cm @ 150kg
• Nationwide delivery available (Part No. XFREX1)
• Shipping to be quoted

WARRANTY

• 4-Year back-to-base warranty on complete system
• Less than 1.5% historical warranty return rate
• Technical support available via BW Solar Australia
• Installation manual and wiring diagrams included
