Waterboy 4C7313000 3.00kW High Head Submersible Centrifugal Solar Bore Pump Complete Kit with x8 450W Solar Panels & 40m Cable (Max 100LPM/2000kPa)
Sale
Sale
Original price
$14,025.00
-
Original price
$14,025.00
Original price
$14,025.00
$14,025.00
-
$14,025.00
Current price
$14,025.00
| /
Waterboy 4C7313000 3.00kW High Head Submersible Centrifugal Solar Bore Pump Complete Kit with x8 450W Solar Panels
The WaterBoy 4C7313000 is one of the most powerful high-head 4” centrifugal solar pumping systems available, purpose-built for applications requiring substantial lift and consistent water delivery over long distances. Delivering up to 43,560 litres per day and capable of pumping to 200 metres TDH, this heavy-duty pump is ideal for deep bores, steep elevation changes, and high-pressure water supply.
Powered by a 3.00kW brushless DC motor with integrated MPPT and soft start, the 4C7313000 delivers maximum efficiency and long service life. Supplied as a complete kit with 8 x 450W mono crystalline solar panels (3.6kW total), a cyclone-rated mounting frame, 40m of cable, and your choice of bore cap or floating dam intake, it’s a reliable, maintenance-free solution for remote and demanding environments.
APPLICATIONS
- Deep bore pumping for high-elevation tank sites
- Agricultural water supply where high head is required
- Irrigation systems needing sustained high pressure
- Off-grid high-pressure water transfer systems
- Replacement for large diesel or mains-powered pumps in remote areas
FEATURES
- 4” stainless steel centrifugal submersible pump
- 3.00kW brushless DC motor with soft start and MPPT controller
- Adjustable speed and timer control for tailored water delivery
- All stainless steel pump construction for durability
- High-efficiency design for maximum water output
- Built for harsh Australian environments
- Simple plug-and-play installation with minimal maintenance
PUMP PERFORMANCE
| Total Dynamic Head (TDH) |
Flow Rate (L/min) |
Flow Rate (L/day) |
| 50m |
100 |
36,000 |
| 60m |
93 |
33,480 |
| 70m |
88 |
31,680 |
| 80m |
85 |
30,600 |
| 90m |
80 |
28,800 |
| 100m |
75 |
27,000 |
| 110m |
70 |
25,200 |
| 120m |
63 |
22,680 |
| 130m |
58 |
20,880 |
| 140m |
53 |
19,080 |
| 150m |
42 |
15,120 |
| 160m |
38 |
13,680 |
| 170m |
28 |
10,080 |
| 180m |
24 |
8,640 |
| 190m |
16 |
5,760 |
| 200m |
8 |
2,880 |
CONTROL BOX FEATURES
- Integrated MPPT for optimal solar performance
- Soft start to protect motor and pump components
- Adjustable speed and timer controls
- Status and fault indicator lights
- Low water probe input (bore kit only)
- Tank float or pressure switch input

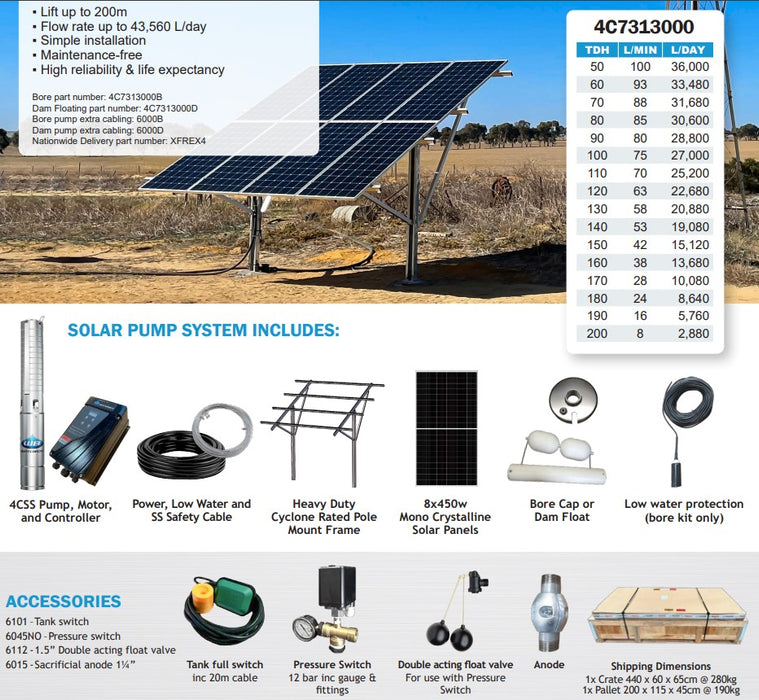

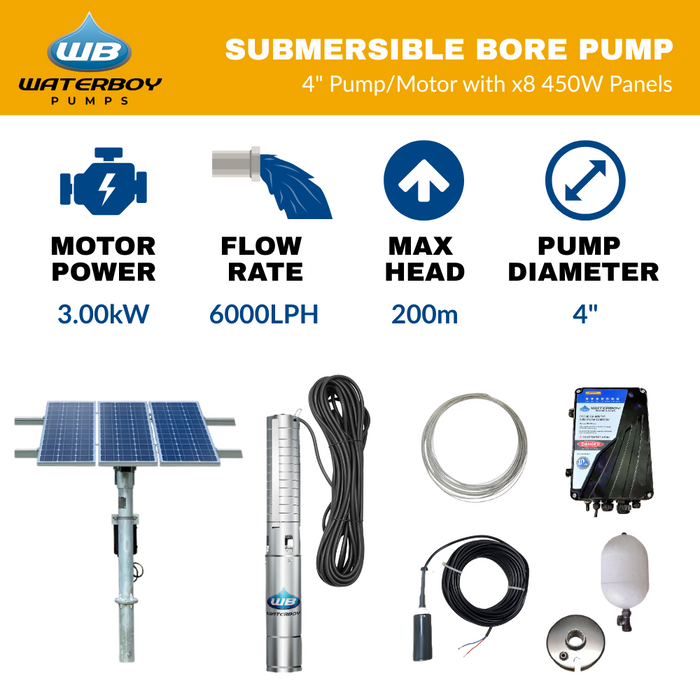

INCLUSIONS
- WaterBoy 4C7313000 Pump, Motor & Controller
- x8 450W Mono Crystalline Solar Panels (Total 3.6kW)
- Heavy Duty Cyclone-Rated Pole Mount Frame
- Bore Cap (or optional Dam Float)
- 40m Power Cable with Stainless Steel Safety Cable
- Low Water Probe (bore kits only)
- Installation & Wiring Guide
- 4-Year Back-to-Base Warranty
OPTIONAL ACCESSORIES (SOLD SEPARATELY)
- 6101 – Tank Float Switch with 20m Cable
- 6045NO – Pressure Switch (12 bar) with gauge & fittings
- 6112 – 1.5” Double Acting Float Valve
- 6015 – 1¼” Sacrificial Anode for corrosion protection
EXCLUSIONS
- Pipework and fittings for installation
- Site preparation, concrete base, or frame anchoring
- Additional cable beyond supplied 40m
FREIGHT
- Shipping Crate Dimensions: 440 x 60 x 65cm @ 280kg
- Pallet Dimensions: 200 x 115 x 45cm @ 190kg
- Nationwide Delivery Code: XFREX4
- Flat Rate Shipping: $300+GST
WARRANTY
- 4-Year Warranty on Complete System
- Designed and supported in Australia
- Extremely low warranty claim rate (<1.5%)
- Full technical support and replacement parts available
