Waterboy 4HR400 1.00kW Submersible Helical Rotor Solar Bore Pump Complete Kit with x4 140W Solar Panels

The WaterBoy 4HR400 is the entry-level model in WaterBoy’s 4” Helical Rotor solar pumping range—purpose-built for mid-range water supply solutions where you need dependable performance and moderate lift. Designed for applications with up to 40 metres of total head, this system delivers between 6,480 and 16,920 litres of water per day, depending on site conditions and sunlight hours.

Supplied as a complete plug-and-play kit, the 4HR400 includes a powerful 1.0kW DC motor paired with a 4” stainless steel helical rotor pump, four 140W solar panels (560W total), a cyclone-rated array frame, 40 metres of power and safety cable, and either a bore cap or dam float for flexible installation. Whether you’re tank filling, watering livestock, or transferring water on your rural property, the 4HR400 gives you reliable, maintenance-free performance powered by the sun.

APPLICATIONS

• Rural tank filling for homes, sheds, or troughs
• Mid-depth bore water pumping
• Small to mid-scale stock watering systems
• Off-grid water transfer from dams or rivers
• Solar replacement for AC or windmill setups

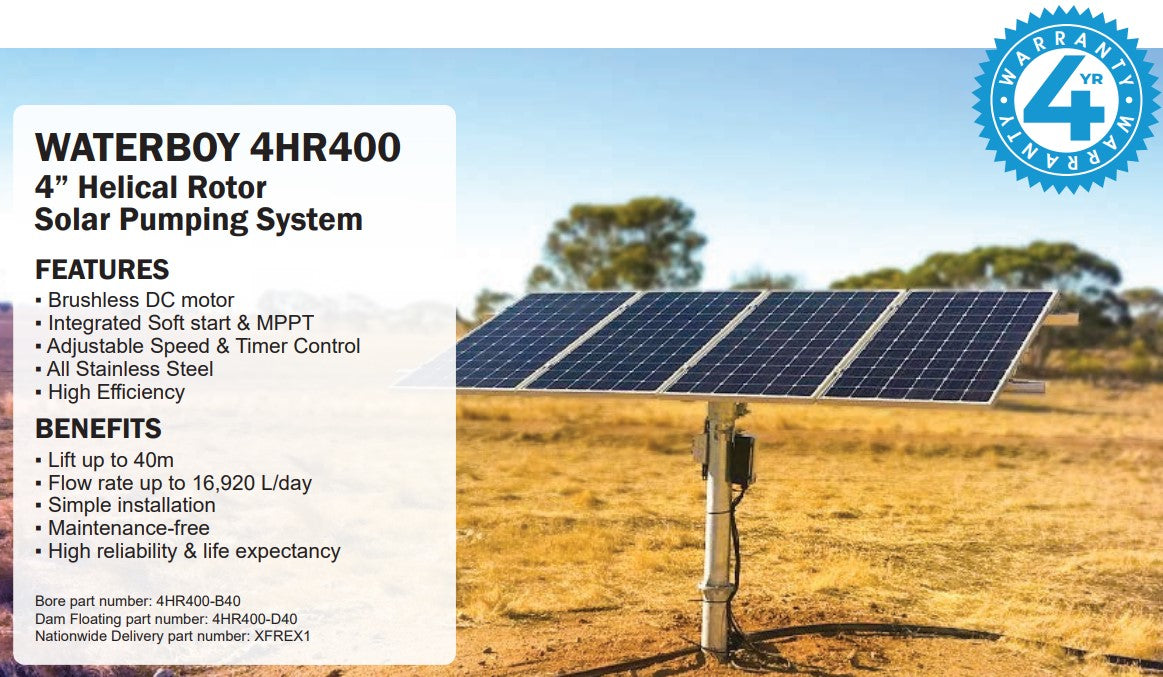

FEATURES

• 4” stainless steel helical rotor submersible pump
• High-efficiency 1.00kW brushless DC motor
• Integrated MPPT controller with soft start
• Speed and timer control dials for precise tuning
• Built-in dry run protection (bore version)

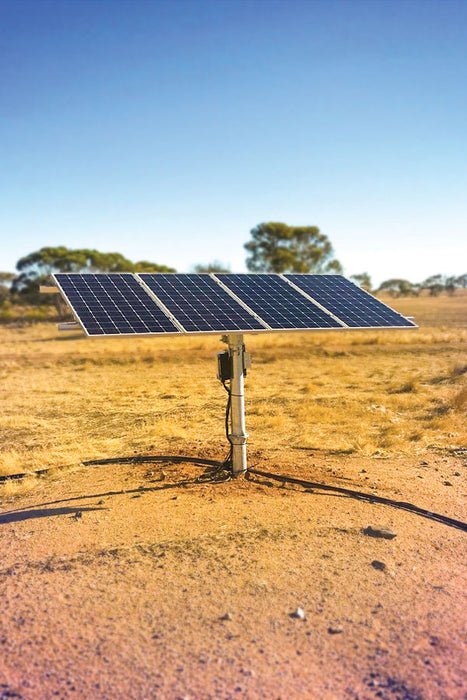

• Tough cyclone-rated pole mount solar frame
• Plug-and-play installation with no software or apps required

PUMP PERFORMANCE

CONTROL BOX FEATURES

• MPPT solar controller with over-voltage protection
• Soft start system to protect pump during startup
• Speed control dial to manage flow rate
• Timer control dial (0–30 min) for low-water restart delay
• System LED indicators for pump, MPPT, error, and status
• Terminal block for:
  • Low water sensor (COM1 + WH, NC)
  • Tank full or pressure switch (COM2 + TH, NO)

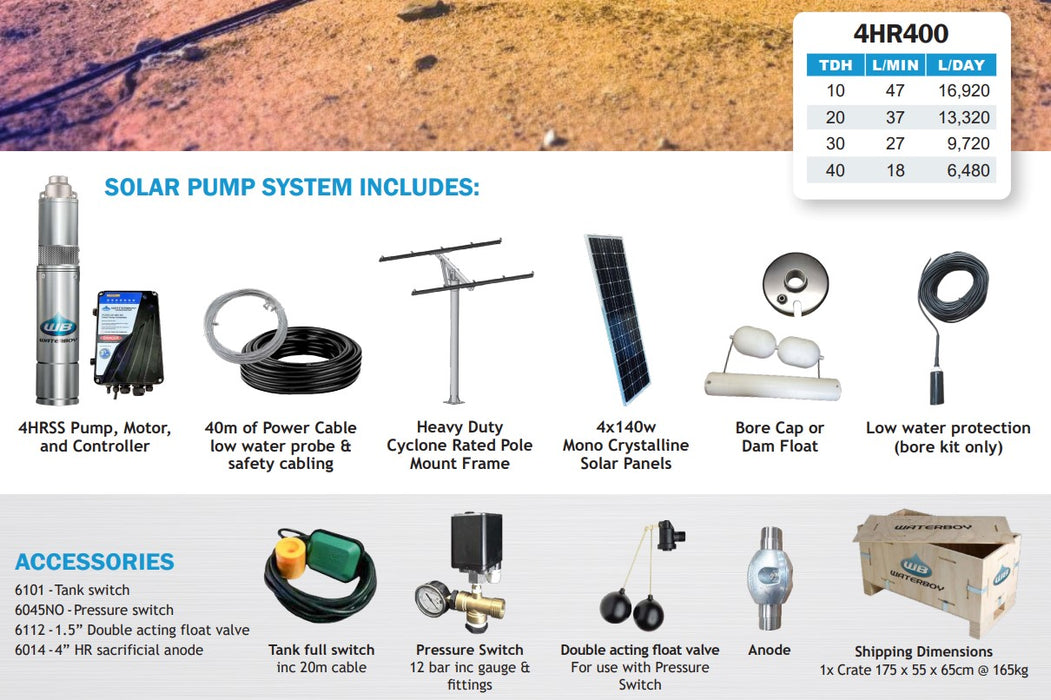

INCLUSIONS

• WaterBoy 4HR400 Submersible Pump, Motor & MPPT Controller
• x4 140W Mono Crystalline Solar Panels (Total 560W)
• Heavy Duty Cyclone-Rated Pole Mount Frame
• 40m Power Cable with Stainless Steel Safety Cable
• Bore Cap (or Dam Float alternative)
• Low Water Probe (for bore kits)
• Installation Manual & Wiring Diagrams
• 4-Year System Warranty

OPTIONAL ACCESSORIES (SOLD SEPARATELY)

• 6101 – Tank Float Switch with 20m Cable
• 6045NO – 12 Bar Pressure Switch with gauge & fittings
• 6112 – 1.5” Double Acting Float Valve
• 6014 – 4” HR Sacrificial Anode (recommended for mineral-heavy or corrosive water)

EXCLUSIONS

• Poly pipe, fittings, and plumbing hardware
• Installation services or trenching works
• Concrete pad or ground anchors
• Additional cabling beyond 40m (available separately)

FREIGHT

• Packed in 1x crate: 175 x 55 x 65cm @ 165kg
• Nationwide delivery available (Part No. XFREX1)
• Shipping cost: $300+GST

WARRANTY

• 4-Year back-to-base warranty on complete system
• Less than 1.5% historical warranty return rate
• Technical support available via BW Solar Australia
• Installation manual and wiring diagrams included
