Waterboy 4HRH1100 1.00kW Submersible Helical Rotor Solar Bore Pump Complete Kit with x4 370W Solar Panels & 40m Cable (Max 51LPM/1200kPa)
Sale
Sale
Original price
$8,735.00
-
Original price
$8,735.00
Original price
$8,735.00
$8,735.00
-
$8,735.00
Current price
$8,735.00
| /
Waterboy 4HRH1100 1.00kW Submersible Helical Rotor Solar Bore Pump Complete Kit with x4 370W Solar Panels

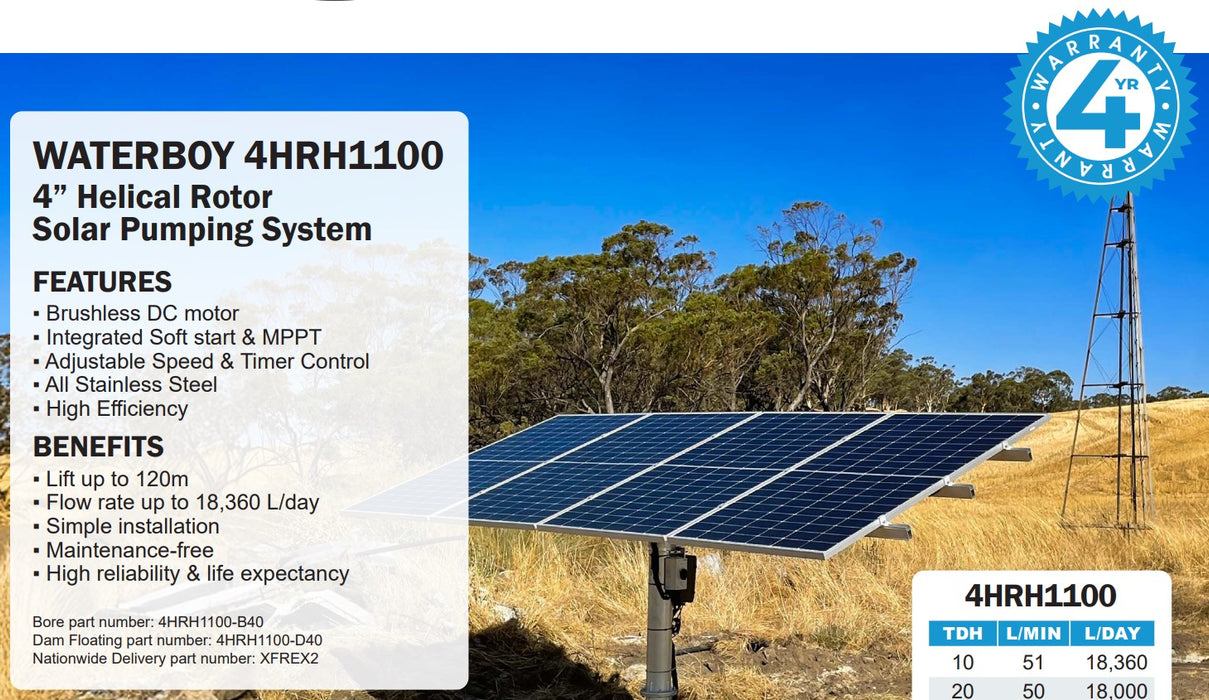

The WaterBoy 4HRH1100 is a powerful and efficient solar pumping system engineered for deep bore and high-head water transfer applications. With the capacity to lift water up to 120 metres and deliver as much as 18,360 litres per day, this system is ideal for remote farms, high-set tanks, and long-distance rural water supply.
Featuring a rugged 4” stainless steel helical rotor pump and high-efficiency 1.00kW brushless DC motor with integrated MPPT controller, the 4HRH1100 is built to withstand the harshest Australian conditions. Supplied as a complete plug-and-play kit, it includes 4 x 370W mono crystalline solar panels (1.48kW total), a cyclone-rated solar frame, 40m of power cable, and either a bore cap or dam float. Whether you're managing livestock, servicing a homestead, or replacing a fuel-powered pump, the 4HRH1100 delivers unmatched performance and durability—powered entirely by the sun.
APPLICATIONS
- Deep bore water extraction up to 120m
- High-lift tank filling for remote infrastructure
- Mid- to large-scale rural water transfer
- Solar-powered stock watering for expansive properties
- Replacement for diesel or windmill systems
FEATURES
- 4” stainless steel helical rotor submersible pump
- High-performance 1.00kW brushless DC motor
- MPPT controller with integrated soft start & protections
- Speed and delay timer dials for system fine-tuning
- Built-in dry run protection (bore kits only)
- Includes cyclone-rated pole mount frame
- Plug-and-play system with no software or apps required
PUMP PERFORMANCE
| Total Dynamic Head (TDH) |
Flow Rate (L/min) |
Daily Output (L/day) |
| 10m |
51 L/min |
18,360 L/day |
| 20m |
50 L/min |
18,000 L/day |
| 30m |
47 L/min |
16,920 L/day |
| 40m |
46 L/min |
16,560 L/day |
| 50m |
44 L/min |
15,840 L/day |
| 60m |
42 L/min |
15,120 L/day |
| 70m |
39 L/min |
14,040 L/day |
| 80m |
36 L/min |
12,960 L/day |
| 90m |
33 L/min |
11,880 L/day |
| 100m |
28 L/min |
10,080 L/day |
| 110m |
25 L/min |
9,000 L/day |
| 120m |
20 L/min |
7,200 L/day |
CONTROL BOX FEATURES
- Advanced MPPT controller with automatic solar input tracking
- Soft start system to extend motor life
- Speed control dial for adjustable flow
- Restart delay timer (0–30 mins) for bore recovery
- LED indicators for system status, faults, and power state
- Terminals for:
- Low water sensor (COM1 + WH, NC)
- Tank full float or pressure switch (COM2 + TH, NO)

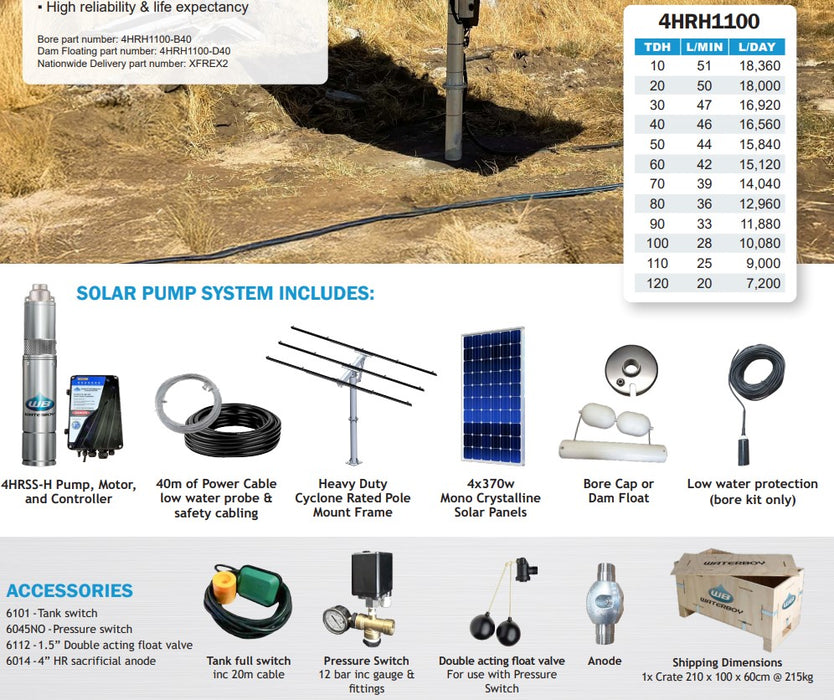

INCLUSIONS
- WaterBoy 4HRH1100 Submersible Pump, Motor & MPPT Controller
- x4 370W Mono Crystalline Solar Panels (Total 1.48kW)
- Heavy Duty Cyclone-Rated Pole Mount Frame
- 40m Power Cable with Stainless Steel Safety Cable
- Bore Cap (or optional Dam Float)
- Low Water Probe (bore version only)
- Full Installation Manual
- 4-Year Back-to-Base Warranty
OPTIONAL ACCESSORIES (SOLD SEPARATELY)
- 6101 – Tank Float Switch with 20m Cable
- 6045NO – 12 Bar Pressure Switch with gauge & fittings
- 6112 – 1.5” Double Acting Float Valve
- 6014 – 4” HR Sacrificial Anode (recommended for mineral-heavy or corrosive water)
EXCLUSIONS
- Poly pipe, fittings, and plumbing hardware
- Installation services or trenching works
- Concrete pad or ground anchors
- Additional cabling beyond 40m (available separately)
FREIGHT
- Packed in 1x crate: 210 x 100 x 60cm @ 215kg
- Nationwide delivery available (Part No. XFREX2)
- Shipping cost: $300+GST
WARRANTY
- 4-Year Warranty on Complete Pump System
- Designed and supported by WaterBoy’s Australian team
- Extremely low warranty claim rate (<1.5%)
- Technical support and replacement parts readily available
