Waterboy 4HRH800 1.00kW Submersible Helical Rotor Solar Bore Pump Complete Kit with x3 370W Solar Panels

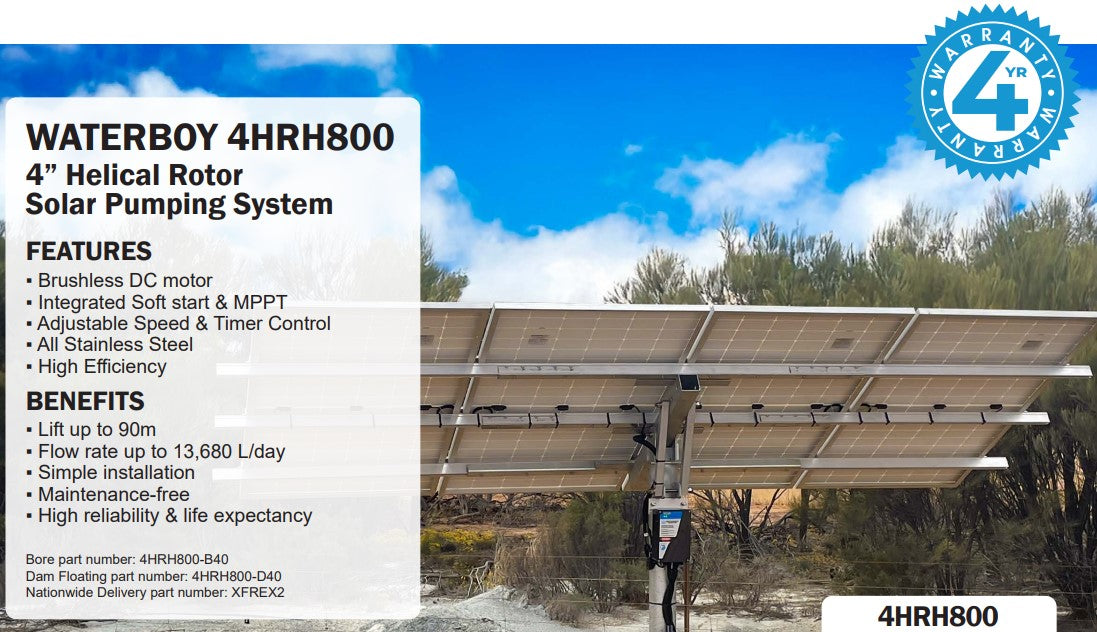

The WaterBoy 4HRH800 is a powerful mid-range 4” Helical Rotor solar pump system, engineered for deep bore and high-lift water supply applications. With the capacity to lift water up to 90 metres and deliver up to 13,680 litres per day, this system is ideal for rural properties that require efficient, off-grid water delivery to high-set tanks or long-distance transfer points.

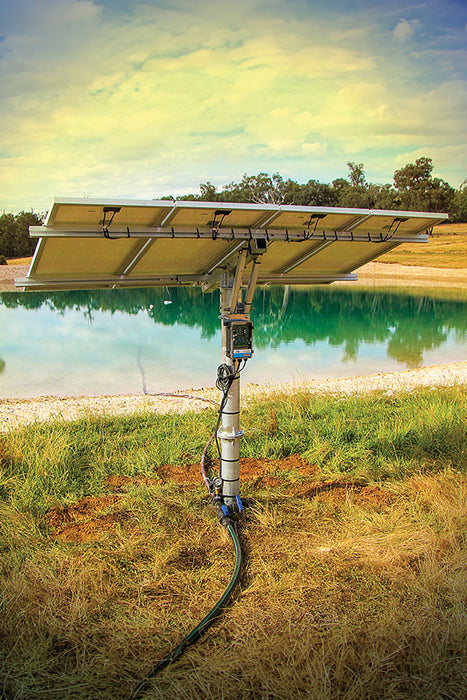

This complete plug-and-play solar pumping kit includes a durable 4” stainless steel helical rotor pump powered by a 1.00kW brushless DC motor and MPPT controller. Supplied with three 370W mono crystalline solar panels (1.11kW total), cyclone-rated mounting frame, and 40 metres of prewired cable, the 4HRH800 is designed for maximum solar performance and long-term reliability in the field. Whether you’re managing livestock, irrigating, or replacing a diesel pump, this system provides hassle-free water—wherever the sun shines.
APPLICATIONS
- High-lift tank filling for stock or domestic use
- Off-grid bore water extraction up to 90m
- Rural irrigation from deep bores or remote dams
- Mid-scale agricultural or horticultural water delivery
- Solar-powered replacement for windmill or AC pumps
FEATURES
- High-lift 4” stainless steel helical rotor submersible pump
- Efficient 1.00kW brushless DC motor with soft start
- MPPT solar controller with speed and timer controls
- Built-in dry run protection (bore kits only)
- Heavy duty cyclone-rated pole mount solar frame
- True plug-and-play setup—no app, Wi-Fi, or electrician required
PUMP PERFORMANCE
| Total Dynamic Head (TDH) |
Flow Rate (L/min) |
Daily Output (L/day) |
| 10m |
38 L/min |
13,680 L/day |
| 20m |
37 L/min |
13,320 L/day |
| 30m |
36 L/min |
12,960 L/day |
| 40m |
34 L/min |
12,240 L/day |
| 50m |
33 L/min |
11,880 L/day |
| 60m |
30 L/min |
10,800 L/day |
| 70m |
28 L/min |
10,080 L/day |
| 80m |
26 L/min |
9,360 L/day |
| 90m |
15 L/min |
5,400 L/day |
CONTROL BOX FEATURES
- Integrated MPPT controller with automatic voltage regulation
- Soft start functionality to protect motor and pump
- Speed adjustment dial to reduce flow when needed
- Restart timer dial (0–30 minutes) for bore recharge delay
- LED status indicators for power, pump operation, and system health
- Compatible with:
- Low water probe (COM1 + WH, NC)
- Tank full float or pressure switch (COM2 + TH, NO)
INCLUSIONS
- WaterBoy 4HRH800 Submersible Pump, Motor & MPPT Controller
- x3 370W Mono Crystalline Solar Panels (Total 1.11kW)
- Heavy Duty Cyclone-Rated Pole Mount Frame
- 40m Power Cable with Stainless Steel Safety Cable
- Bore Cap (or Dam Float depending on setup)
- Low Water Probe (included in bore kits)
- Full Installation Manual
- 4-Year Back-to-Base Warranty
OPTIONAL ACCESSORIES (SOLD SEPARATELY)
- 6101 – Tank Float Switch with 20m Cable
- 6045NO – 12 Bar Pressure Switch with gauge & fittings
- 6112 – 1.5” Double Acting Float Valve
- 6014 – 4” HR Sacrificial Anode (recommended for mineral-heavy or corrosive water)
EXCLUSIONS
- Poly pipe, fittings, and plumbing hardware
- Installation services or trenching works
- Concrete pad or ground anchors
- Additional cabling beyond 40m (available separately)
FREIGHT
- Packed in 1x crate: 210 x 100 x 55cm @ 195kg
- Nationwide delivery available (Part No. XFREX1)
- Shipping cost: $300+GST
WARRANTY
- 4-Year Warranty on Complete System
- Supported by WaterBoy’s experienced Australian team
- Low failure rate with robust, field-tested components
- Technical support available for installation and troubleshooting
