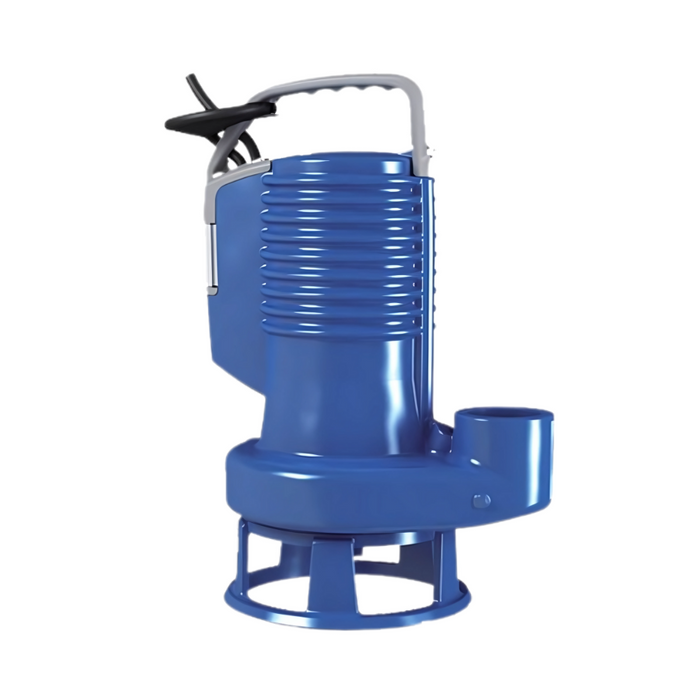

Zenit DG Blue PRO 150 Series 1.10kW 240v Cast Iron Heavy Duty Vortex Drainage Pump (Max 600LPM/120kPa)

The Zenit DG BluePRO 150 is a high-capacity, heavy-duty vortex drainage pump designed for demanding soiled wastewater and sewage applications in both domestic and professional installations. Delivering up to 600 litres per minute with a maximum head of 12 metres, this robust pump is ideal for biological wastewater, rainwater drainage, seepage handling, and residential or commercial pits where solids handling is essential.

Built with a durable cast iron hydraulic body, the DG BluePRO 150 features a set-back vortex impeller, wide free passage, and large oil chamber for extended mechanical seal life. Certified to IECEx Zone 2, it’s safe for operation in potentially explosive atmospheres, including car parks, truck stops, vehicle workshops, bus depots, and garages.

FEATURES

• IECEx Zone 2 Certified — Compliant with IECEx standards for safe use in explosive atmospheres (Ex nA IIC T3 Gc)
• Heavy-Duty Cast Iron Hydraulics — Casing and impeller built from EN-GJL 250 cast iron for maximum durability

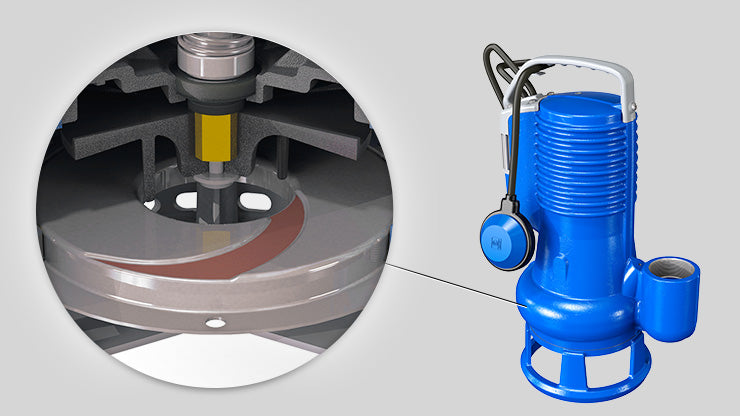

• Set-Back Vortex Impeller — Handles solids up to 40 mm, ensuring free passage and minimal clogging
• Stainless Steel Shaft (AISI 431) — Corrosion-resistant shaft with secure tapered coupling

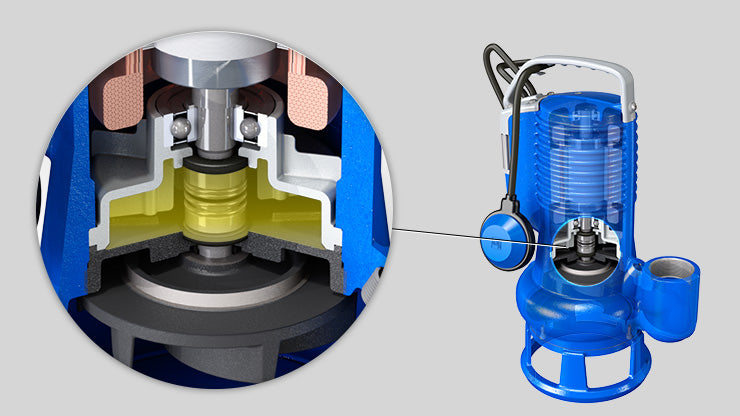

• Dual Silicon Carbide Mechanical Seals (2SiC) — Placed in a large, inspectable oil chamber for longer life
• Leakage Detection — Oil sump with sensor monitors seal condition and protects the motor
• Twin O-Ring Cable Gland System — Guarantees tight sealing against moisture and mechanical stress

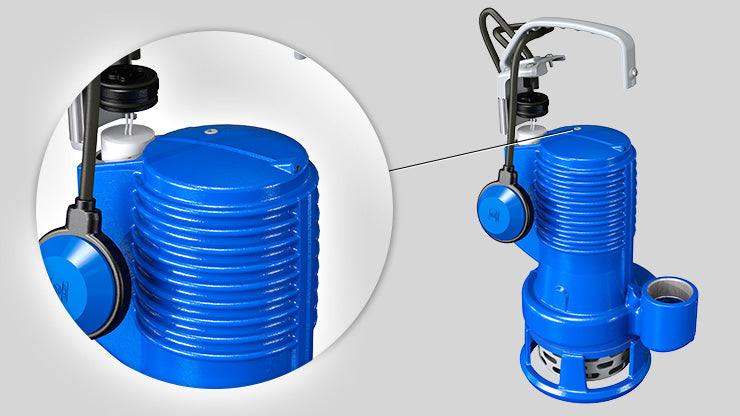

• Technopolymer Handle — Ergonomic lifting handle with adjustable clip for float switch (where fitted)

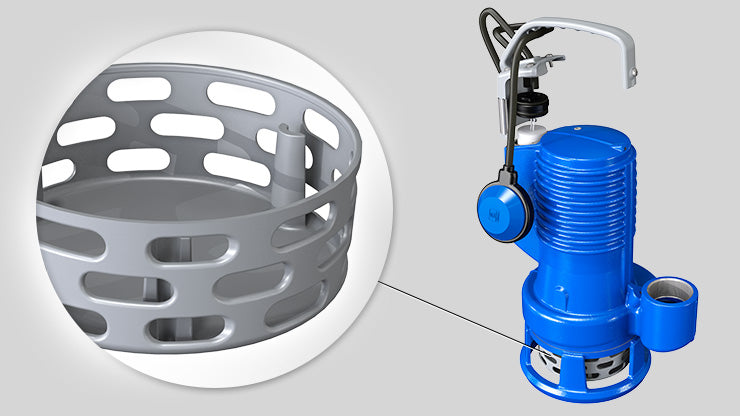

• Impact-Resistant Polypropylene Support Foot — Provides stable installation in pits and sumps
• Quiet Operation — Runs below 70 dB when submerged

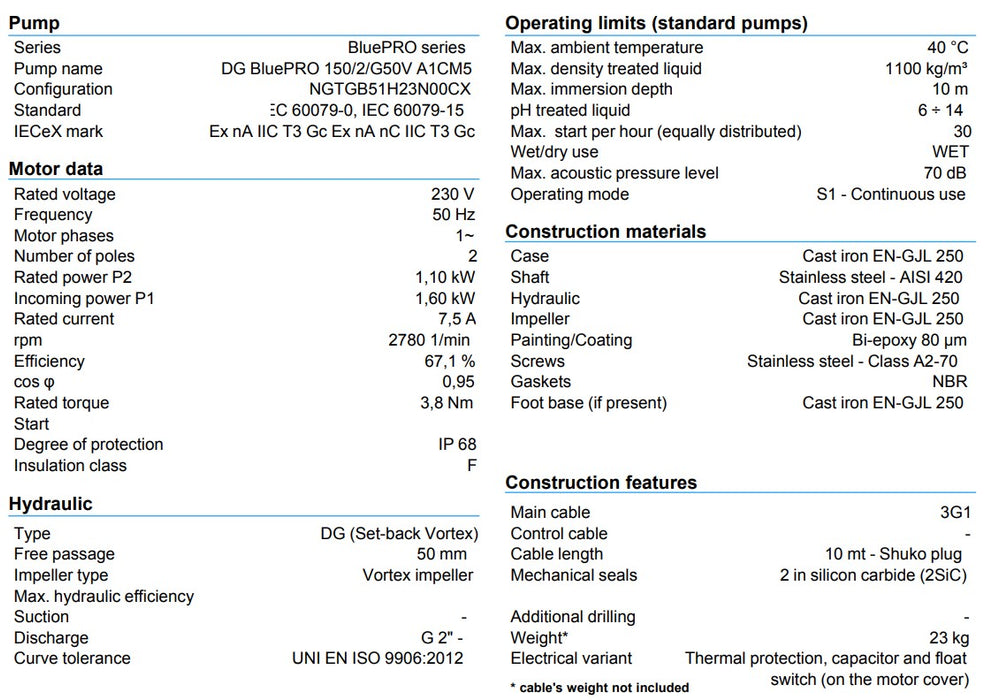

SPECIFICATIONS

• Brand: Zenit Pumps
• Series: BluePRO – DG Heavy Duty Vortex
• Product Type: Vortex Submersible Pump
• Suitable For: Soiled wastewater and dirty water with solids
• Power Supply: 240 V, 50 Hz (Single-phase)
• Rated Power (P2): 1.10 kW / 1.5 HP

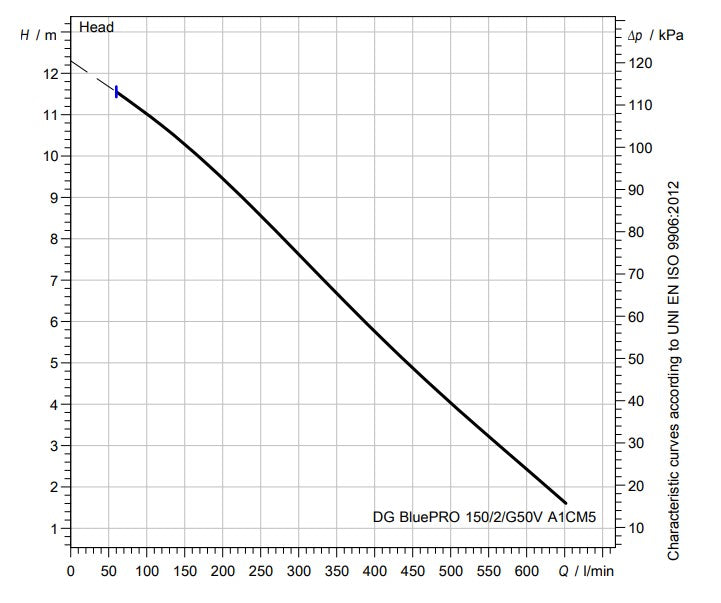

• Max Flow Rate: 600 L/min (10 L/s)
• Max Head: 12 m (1.2 bar / 120 kPa)
• Outlet Size: G 2” BSPF (DN 50)
• Impeller Type: Set-back vortex impeller

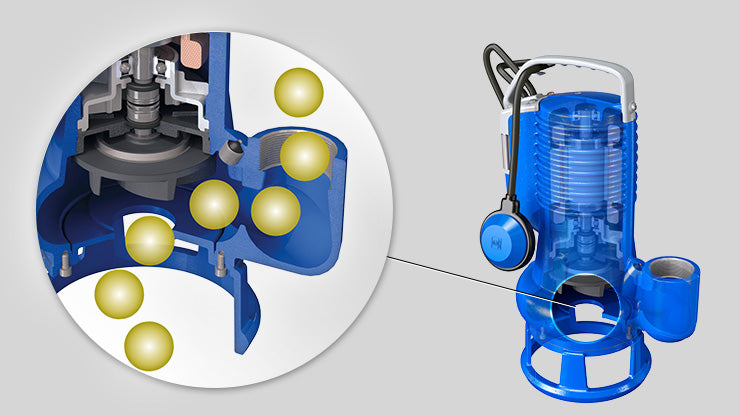

• Free Passage: 50 mm
• Motor Poles: 2 Pole (~2780 RPM)
• Motor Type: Dry asynchronous motor with thermal protection, internal capacitor, float switch on the cover
• Duty Cycle: Continuous (S1)
• Max Liquid Temperature: 40°C
• Max Immersion Depth: 10 m
• pH Range: 6 – 14
• Max Fluid Density: 1100 kg/m³
• Max Starts per Hour: 30
• Hydraulic Efficiency: Up to 67.1%
• Noise Level: <70 dB (submerged)
• Ingress Protection: IP68
• Insulation Class: F
• Cable: 10 m (3G1) with Shuko plug
• Weight: ~23 kg (excluding cable & accessories)
• Certification: IECEx Ex nA IIC T3 Gc, Ex nA nC IIC T3 Gc
• Warranty: 24 Months (Parts & Labour)

APPLICATIONS

• Soiled biological wastewater and sewage transfer
• Dirty water drainage in residential and commercial pits
• Underground carparks and vehicle washdown areas
• Rainwater pits with suspended solids
• Industrial sumps where safe solids handling is required
