Zenit DG Blue PRO 200 Series 1.50kW 240v Cast Iron Heavy Duty Vortex Drainage Pump (Max 690LPM/150kPa)

The Zenit DG BluePRO 200 is the powerhouse of the DG BluePRO range — built for demanding heavy-duty applications involving soiled biological wastewater, sewage, rainwater, and seepage. Delivering an impressive maximum flow of 690 litres per minute with a head of up to 15 metres, this robust pump is the trusted choice for large residential pits, lift stations, commercial sumps, vehicle depots, and workshops.

Equipped with a rugged cast iron casing, a large free passage, and a set-back vortex impeller, the DG BluePRO 200 easily handles large solids while maintaining clog-free performance under tough conditions. Certified to IECEx Zone 2, it ensures safe operation in hazardous areas where flammable vapours, gases, or combustible dusts could be present.

FEATURES

• IECEx Zone 2 Certified — Compliant with IECEx standards for safe use in explosive atmospheres (Ex nA IIC T3 Gc)
• Heavy-Duty Cast Iron Hydraulics — Casing and impeller built from EN-GJL 250 cast iron for maximum durability
• Set-Back Vortex Impeller — Handles solids up to 40 mm, ensuring free passage and minimal clogging
• Stainless Steel Shaft (AISI 431) — Corrosion-resistant shaft with secure tapered coupling
• Dual Silicon Carbide Mechanical Seals (2SiC) — Placed in a large, inspectable oil chamber for longer life
• Leakage Detection — Oil sump with sensor monitors seal condition and protects the motor
• Twin O-Ring Cable Gland System — Guarantees tight sealing against moisture and mechanical stress
• Technopolymer Handle — Ergonomic lifting handle with adjustable clip for float switch (where fitted)
• Impact-Resistant Polypropylene Support Foot — Provides stable installation in pits and sumps
• Quiet Operation — Runs below 70 dB when submerged

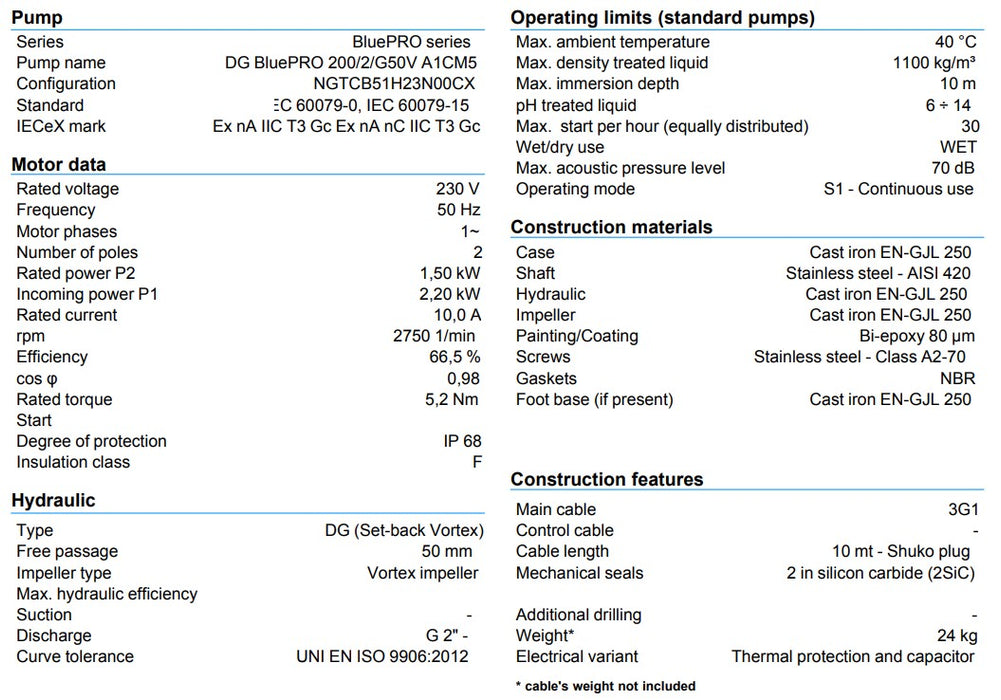

SPECIFICATIONS

• Brand: Zenit Pumps
• Series: BluePRO – DG Heavy Duty Vortex
• Product Type: Submersible Vortex Pump
• Suitable For: Soiled wastewater and dirty water with solids
• Power Supply: 240 V, 50 Hz (Single-phase)
• Rated Power (P2): 1.50 kW / 2.0 HP

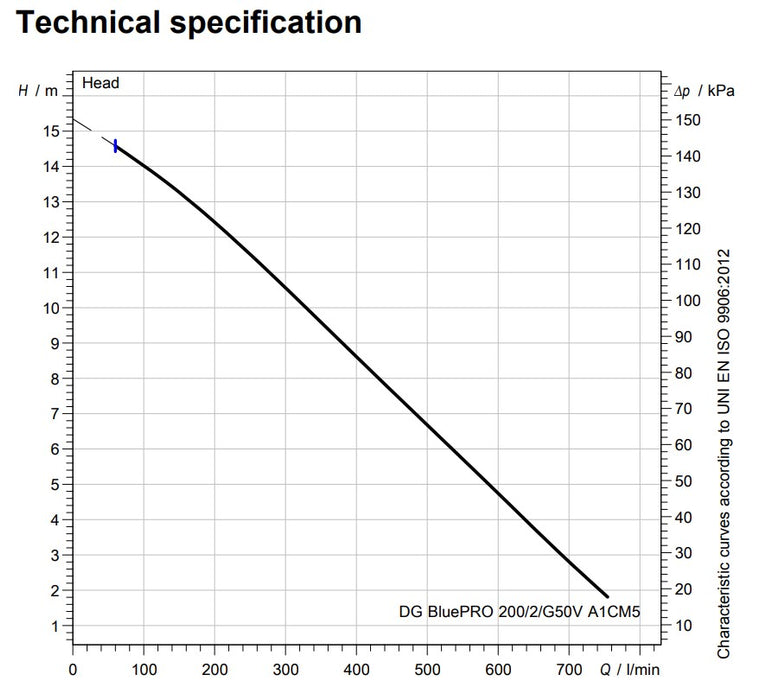

• Max Flow Rate: 690 L/min (11.5 L/s)
• Max Head: 15 m (1.5 bar / 150 kPa)
• Outlet Size: G 2” BSPF (DN 50)
• Impeller Type: Set-back vortex impeller
• Free Passage: 50 mm solids handling
• Motor Poles: 2 Pole (~2750 RPM)
• Motor Type: Dry asynchronous motor with thermal protection, internal capacitor
• Duty Cycle: Continuous (S1)
• Max Liquid Temperature: 40°C
• Max Immersion Depth: 10 m
• pH Range: 6 – 14
• Max Fluid Density: 1100 kg/m³
• Max Starts per Hour: 30
• Hydraulic Efficiency: Up to 66.5%
• Noise Level: <70 dB (submerged)
• Ingress Protection: IP68
• Insulation Class: F
• Cable: 10 m (3G1) with Shuko plug
• Weight: ~24 kg (excluding cable & fixing system)
• Certification: IECEx Ex nA IIC T3 Gc, Ex nA nC IIC T3 Gc
• Warranty: 24 Months (Parts & Labour)

APPLICATIONS

• Soiled biological wastewater and sewage transfer
• Dirty water drainage in residential and commercial pits
• Underground carparks and vehicle washdown areas
• Rainwater pits with suspended solids
• Industrial sumps where safe solids handling is required
