Zenit DRG 1000 7.50kW 415v Cast Iron 2 Pole Drainage Pump (Max 2700LPM/350kPa)

The Zenit DRG 1000 is the largest and most powerful model in the Zenit Grey Series, purpose-built for high-capacity, heavy-duty drainage and wastewater transfer in industrial and civil installations. Delivering a maximum flow of 2700 litres per minute and a total head of up to 35 metres, this pump handles tough conditions with reliable solids handling and continuous-duty performance.

Featuring a multi-channel open impeller and robust ATEX-certified cast iron construction, the DRG 1000 is ideal for lifting stormwater, process water, sewage, and liquids with suspended solids in demanding applications. ATEX Ex d flameproof certification ensures safe operation in potentially explosive atmospheres.

FEATURES

• ATEX Certified Ex d — Flameproof for safe use in explosive atmospheres (II 2G Ex db IIB T4 Gb, Ex h IIB T4 Gb)
• Massive Flow & High Head — Up to 2700 L/min (45 L/s) and 35 m max head
• Multi-Channel Open Impeller — Efficiently passes solids up to 40 mm
• Rugged Cast Iron Construction (EN-GJL 250) — Impeller and casing designed for harsh wastewater conditions
• Stainless Steel Shaft (AISI 431) — Corrosion-resistant, strong, and tapered coupling to the impeller
• Dual Silicon Carbide Mechanical Seals (2SiC) — Isolated in a large oil chamber with leakage sensor for protection
• Leakage Detection System — Monitors the oil chamber to protect mechanical seals and motor
• Universal GAS Thread Cable Gland — Accepts protective sheathing for cable safety
• Factory Pressure Tested — Each pump undergoes pressurised leak testing for reliability
• Base Plate Installation — Vertical discharge with base plate for stable operation
• Three-Phase Protection Required — Must be used with external contactor and overload protection relay

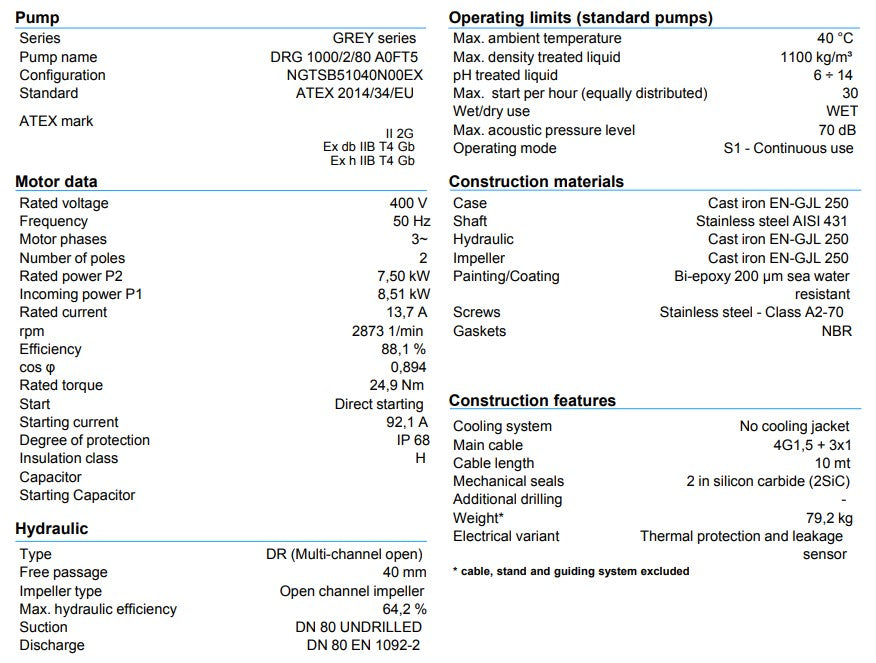

SPECIFICATIONS

• Brand: Zenit Pumps
• Series: Grey – DRG Multi-Channel
• Power Supply: 415 V, 50 Hz (Three-phase)
• Rated Power (P2): 7.50 kW / ~10 HP
• Max Flow Rate: 2700 L/min (45 L/s)
• Max Head: 35 m (3.5 bar / 350 kPa)
• Current Draw: 13.7 A
• Starting Current: 92.1 A (direct start)
• Outlet Size: DN 80 (EN 1092-2 Flanged)
• Impeller Type: Multi-channel open impeller
• Free Passage: 40 mm
• Motor Poles: 2 Pole (~2873 RPM)
• Motor Type: Dry asynchronous motor with thermal protection and leakage sensor
• Duty Cycle: Continuous (S1)
• Max Liquid Temperature: 40°C
• pH Range: 6 – 14
• Max Fluid Density: 1100 kg/m³
• Max Starts per Hour: 30
• Noise Level: <70 dB (submerged)
• Ingress Protection: IP68
• Insulation Class: F
• Hydraulic Efficiency: Up to 64.2%
• Cable: 10 m (4G1.5 + 3x1)
• Weight: ~79.2 kg (excluding base stand and guide rails)
• Certification: ATEX Ex db IIB T4 Gb, Ex h IIB T4 Gb
• Warranty: 12 Months (Parts & Labour)

APPLICATIONS

• Stormwater drainage and wastewater treatment plants
• Civil sewage lift stations
• Livestock farms and agricultural wastewater
• Industrial wastewater systems
• Underground carparks and stormwater pits
• Pumping low or medium-density activated sludge or liquids with solids and fibres
