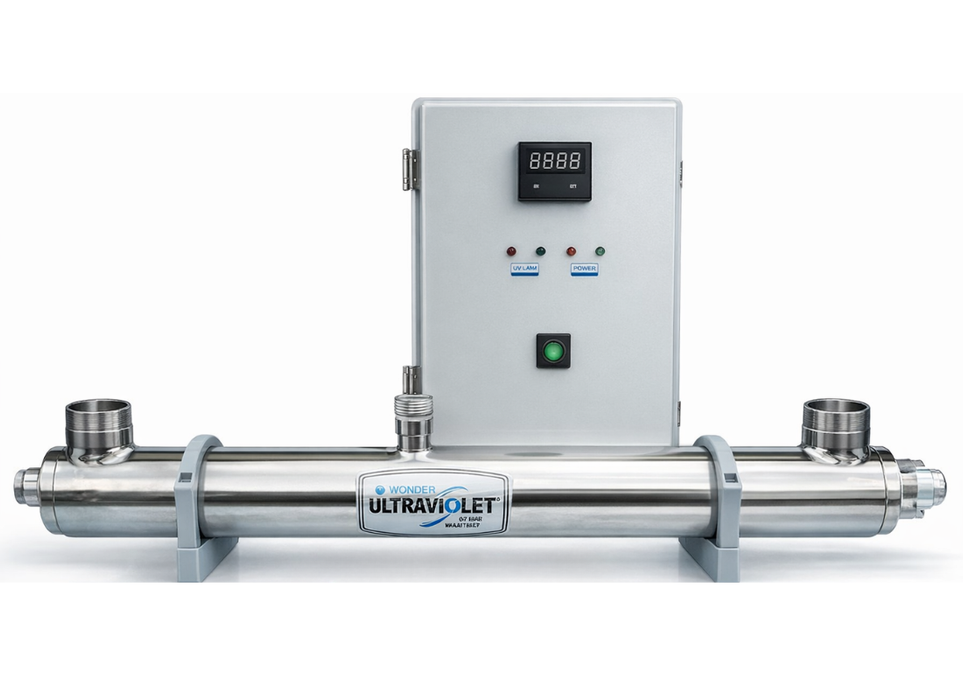

Aquacorp UV EB Series UVEB45 Multi-Lamp UV Water Steriliser Systems for Commercial & Light Industrial Applications (10.2m³/hr)

The Aquacorp UV EB Series UVEB45 is a high-capacity multi-lamp ultraviolet water steriliser designed for reliable, chemical-free disinfection in commercial and light industrial applications. Utilising advanced 254nm germicidal UV technology, the system effectively neutralises bacteria, viruses and other harmful microorganisms while preserving the natural taste, odour and composition of your water.

Built for higher demand environments, the UVEB45 features a heavy-duty stainless steel reactor chamber available in 304 or 316L construction. Each chamber is electro-chemically passivated and hand polished to ensure long-term durability and excellent corrosion resistance. With an increased flow capacity of 10.2m³/hr, this system is ideal for commercial buildings, processing facilities, and multi-outlet water systems requiring consistent, high-volume disinfection.

The UVEB45 is supplied as a complete system including multiple UV lamps, quartz sleeves, Viton O-rings, mounting brackets and a fan-cooled PVC control box with integrated hour counter. The control system provides reliable operation, real-time monitoring and audible/visual alarms, ensuring optimal performance and simplified maintenance.

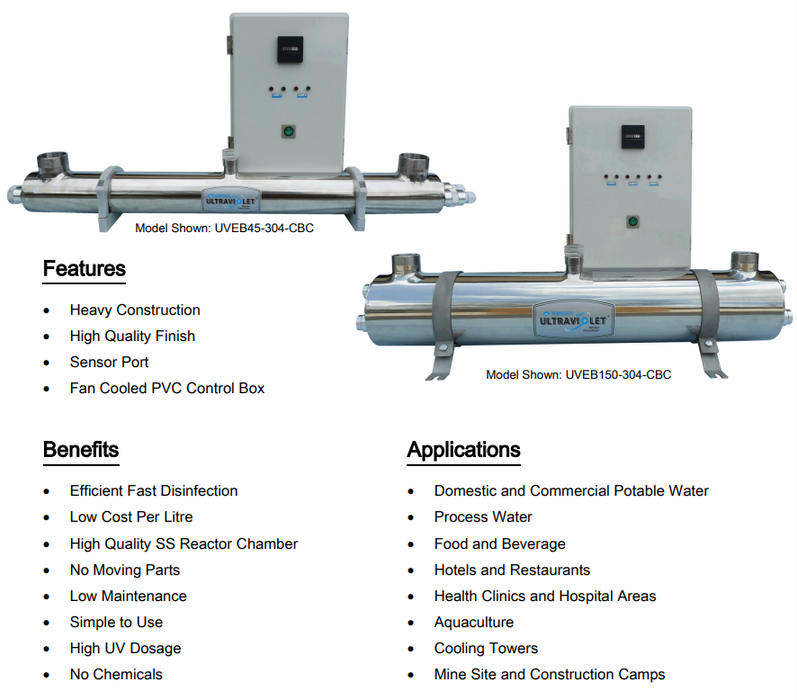

FEATURES

• Multi-lamp UV system for higher flow applications
• 254nm germicidal UV disinfection technology
• High quality 304 or 316L stainless steel reactor chamber
• Fan-cooled PVC control box with hour run meter
• Audible and LED lamp failure alarm
• Sensor port for optional UVT monitoring
• No chemicals, taste or odour added to water
• Low maintenance system with no moving parts

BENEFITS

• Designed for higher flow commercial applications
• Eliminates bacteria and viruses without chemicals
• Low operating cost per litre treated
• Reliable performance with built-in monitoring
• Durable stainless steel construction for long service life
• Simple installation and easy servicing
• Safe and environmentally friendly water treatment solution

SPECIFICATIONS

• Max Flow Rate: 10.2 m³/hr
• UV Dose: >30mJ/cm² @ 95% UVT
• Lamp Configuration: 2 x 85W UV lamps
• Connection Size: 50mm BSPM
• Chamber Material: 304SS or 316L SS
• Control System: Fan-cooled PVC control box with hour counter
• Lamp Failure Alarm: Audible / LED
• Power Supply: 240V AC
• Max Pressure: 690kPa
• Operating Temperature: 0°C – 40°C

APPLICATIONS

• Commercial potable water systems
• Light industrial water treatment
• Food and beverage processing
• Hotels and hospitality venues
• Health clinics and hospital facilities
• Aquaculture and cooling towers
• Construction sites and mining camps
