Bianco 700L Packaged Wastewater Sewage Pump Station with Dual B120MS2 Grinder Pumps, Controller & Multi-Level Tree Float (Max 600LPM/200kPa)

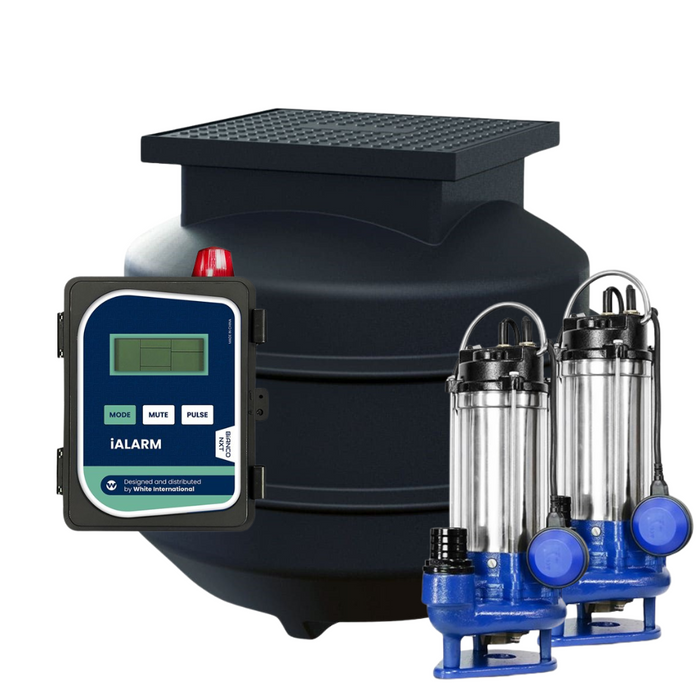

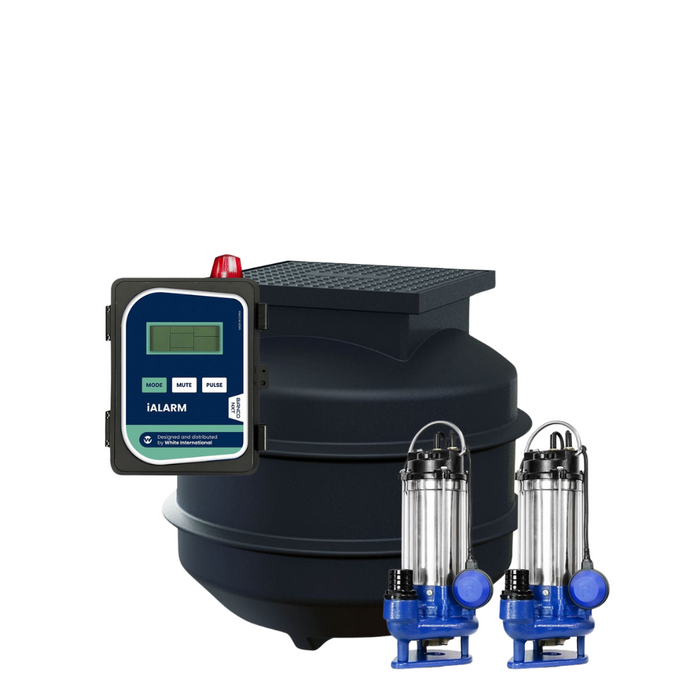

Bianco 700L Packaged Freestanding Wastewater Pump Station with Class A Lid
| DOWNLOAD PRODUCT BROCHURE | DOWNLOAD INSTALLATION MANUAL |
The Bianco 700L Packaged Wastewater Pump Station is a compact, heavy-duty dual-pump system designed to handle sewage and wastewater from small residential and light commercial applications. This freestanding unit is ideal for granny flats, garbage rooms, and small-scale pump-away systems where gravity drainage is not available.
Equipped with two powerful Bianco B120MS2 submersible grinder/macerator pumps, each pump features a dual-stage cutting system—a primary cutter and secondary grinder—to effectively macerate soft solids and fibrous material into a fine slurry. This makes it suitable for demanding wastewater transfer applications in both industrial and domestic settings.
The system includes a Matelec Multi-Level Tree Float, a pre-assembled float solution that minimises installation complexity and prevents tangling—ensuring reliable level control over time. The Bianco NXT-DPC Dual Pump Controller manages both pumps, offering advanced control logic, protection features, and error diagnostics for continuous, safe operation.
INCLUSIONS
- Dual Bianco B120MS2 Grinder/Macerator Pump
- Bianco iCON 700L Polyethylene Tank (single, freestanding)
- Bianco NXT DPC1-22 Dual Pump Controller

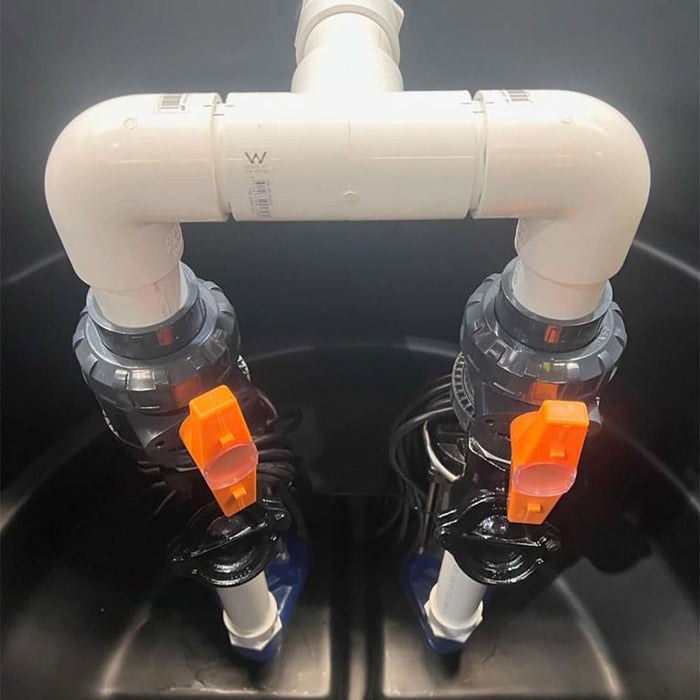

- Pre-installed In-Tank Fittings:
- Ball valve
- Non-return valve
- Barrel unions
- Interconnecting PVC pipework
- Class A 600x600 Lid (Class B & D lids available upon request)
- Matelec 3 Float Multi-Level Tree Float (Tangle Resistant)
APPLICATIONS
- Pumping sewage and solid-laden wastewater
- Converting soft solids into slurry for easy discharge
- Suitable for:
- Granny flats
- Garbage rooms
- Small pump-away systems
- Industrial and agricultural wastewater treatment
CONSTRUCTION
- Durable polyethylene tank
- Submersible up to 10m
- Stationary base installation
- Plumber-installed inlet pipe
- Pre-configured for easy setup with all internal fittings included
SPECIFICATIONS
| Brand | Bianco iCON |
| Product Type | Packaged Pump Station |
| Suitable For | Sewage and Wastewater |
| Flow Rate (L/min) | 341 L/min per pump |
| Hp | 2.2 Hp |
| kPa | 200 kPa |
| Kilo Watts | 1.5 kW |
| Max Head (m) | 20 m |
| Volts | 240 V |
| Controller | DPC1-22 |
| Warranty | 2 years |
DUAL PUMP CONTROLLER FEATURES
The BiANCO NXT-DPC is a highly efficient controller designed to manage and protect two single-phase pumps, each up to a nominal 2.2 kW. Offering advanced control features and superior protection, this module allows users to select the optimal control logic sequence tailored to their specific application. The NXT-DPC ensures reliable pump operation, enhances system performance, and minimizes the risk of damage or downtime.
- Three Control Logic Modes: Drainage, Boosting, and Transfer
-
Advanced Protections:
- Over/under voltage
- Dry run
- Overload
- Pump stall
- Anti-seize function (96h)
-
Monitoring & Diagnostics:
- Digital performance tracking
- Error logging (last 5 faults)
-
Inputs Supported:
- Float switch
- Relay, pressure, temperature switches
- 4–20mA transmitters and capacitive probes
-
Outputs:
- Visual/audible alarm indicators
- External alarm support
-
Tech Specs:
- Rated Voltage: 1Ph 230V ±10/-6%
- Max Amps: 18A per pump
- IP65 Rated
- Dimensions: 342mm x 253mm x 130mm
- Weight: ~3.3kg
