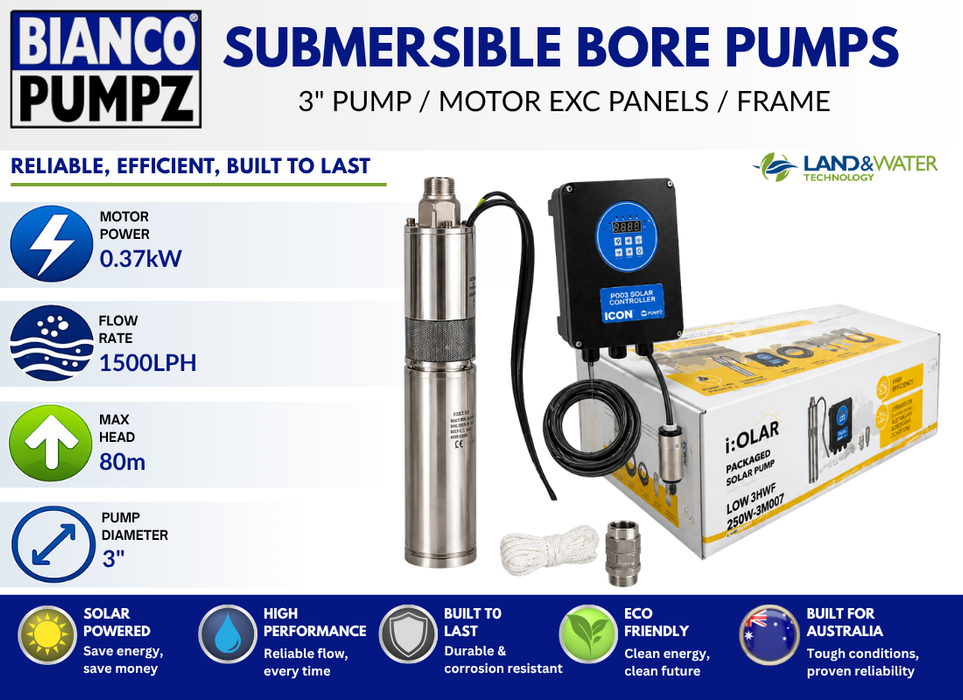

Bianco iSolar 3" 0.37kW Helical Solar Pump Complete Kit (ex Panels) (Max 25LPM/800kPa)

Bianco iSolar 3" 0.37kW Helical Solar Pump Complete Kit (ex Panels) (Max 25LPM/800kPa)

by Bianco
PN: 808692
Sale Sale
$3,205.00
$3,205.00 - $3,205.00
$3,205.00
$2,613.60
$2,613.60 - $2,613.60
$2,613.60

Bianco iSolar 3" Helical Solar Pump Complete Kit (ex Panels) 25L/Min 80m Head 0.37kW

 SOLAR PUMP SELECTOR TOOL
 DOWNLOAD PRODUCT BROCHURE

The 3” Helical Rotor iSOLAR PDP3 range provides a ‘plug and play’ kitset solution that requires only moderate DIY skills to install. Ground water supply – supplying water from wells or reservoirs, ideal for farm, small waterworks. Ideal for windmill replacements. The addition of a Positive Displacement Pump exploits the versatility of the motor’s operating range to deliver water even when solar conditions are less than optimum. The iSOLAR 3” PDP can be installed down a bore, in a tank or fitted to a pontoon to supply from an open body of water. Please note price is excluding freight across Australia.

TECHNICAL SPECIFICATIONS:

Brand Bianco iCON
Product Type Solar Powered Borehole Pump
Suitable For Solar
Flow Rate (L/min) 25 L/min
Kilo Watts 0.37 kW
Max Head (m) 80 m
Port Size Outlet 1" BSPM
Controller 48V
Solar Array 2 x 300W in series
Vmp 40-76V
Max VOC 96V
Max Amps 15A
Solar array recommendation indicative only Solar inputs must respect the VOC and Max Current (Amperage) values

KIT INCLUDES:

  • 3” iCON Solar Motor & 30 meters cable with 4 pin plug
  • 3” iCON Positive Displacement Pump
  • iCON PDP3 Solar Controller
  • Float/Level Switch with 30 meters cable
  • Nylon Safety Rope - 30 meters
  • Non-return Valve - 1”

YOU WILL NEED:

Price does not include delivery throughout Australia. Please contact us for a delivery quotation
