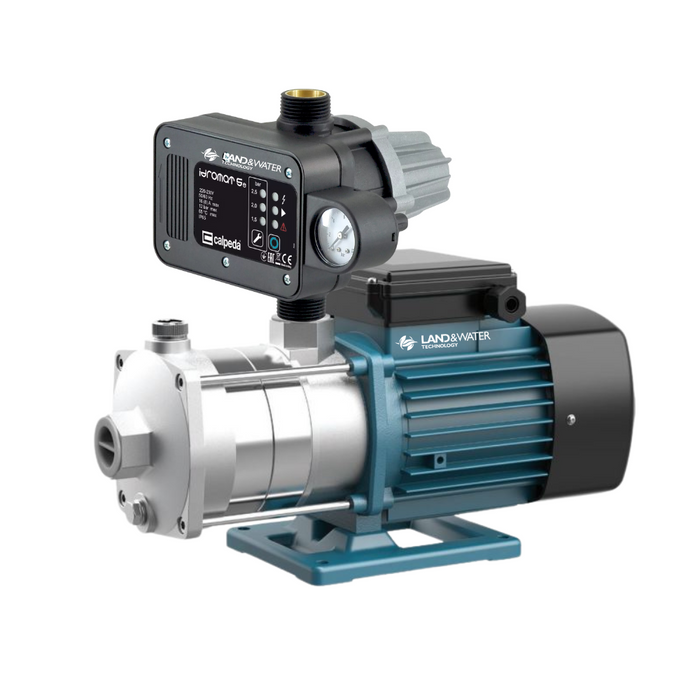

Calpeda Sprint Multi 8-50 2.20kW 304ss Horizontal Multistage Pressure Pump with Idromat Controller (Max 250LPM/540kPa)

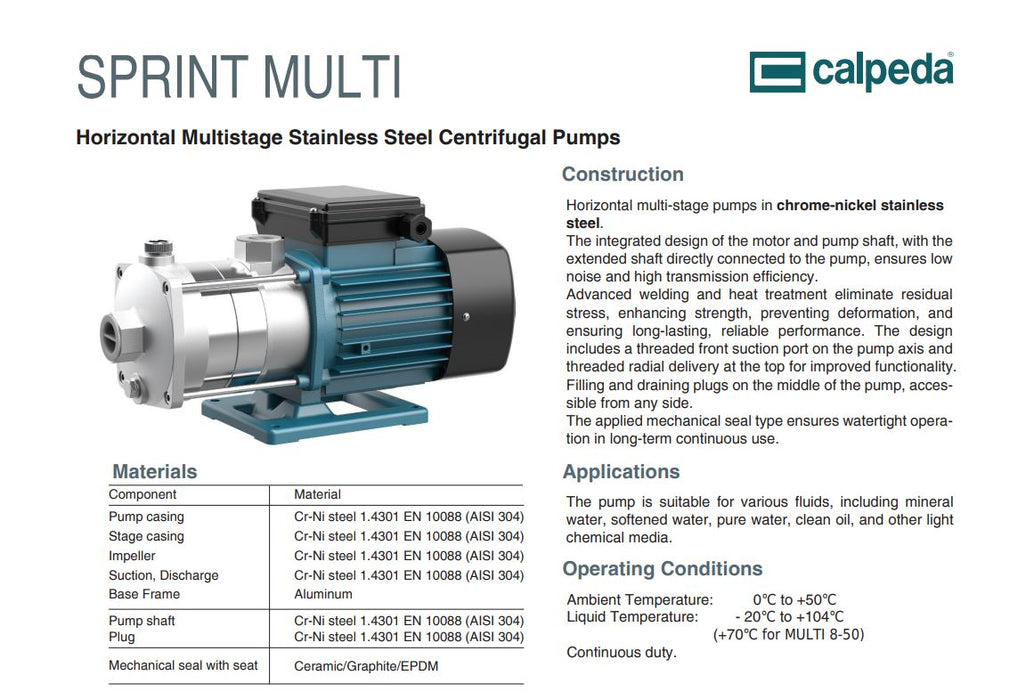

Designed for superior performance and durability, these horizontal multi-stage pumps are constructed from high-quality chrome-nickel stainless steel, ensuring long-lasting reliability in demanding applications. The integrated motor and pump shaft design, with an extended shaft directly connected to the pump, minimizes noise and maximizes transmission efficiency for smooth, quiet operation.

Advanced welding and heat treatment processes eliminate residual stress, enhancing structural strength and preventing deformation over time. The pump features a threaded front suction port on the pump axis and a threaded radial delivery port at the top, optimizing functionality and ease of installation. Convenient filling and draining plugs, accessible from any side, provide added versatility during maintenance.

Equipped with a high-quality mechanical seal, the pump ensures watertight performance even in long-term continuous use. Its compatibility with various fluids — including mineral water, softened water, pure water, clean oil, and other light chemical media — makes it a versatile solution for a range of applications.

Compact, efficient, and built to withstand demanding environments, these horizontal multi-stage pumps deliver exceptional performance, making them an ideal choice for various residential, commercial, and industrial applications.

APPLICATIONS

• Water supply and distribution
• Industrial processes
• Filtration and water treatment systems
• Pressure boosting
• Clean oil transfer

SPECIFICATIONS

• Ambient Temperature: 0°C to +50°C
• Liquid Temperature: -20°C to +104°C (+70°C for IRU08/7 models)
• Continuous Duty Operation

OPERATING CONDITIONS

• Motor: Air-cooled 2-pole motor with a fully enclosed protection design
• Frame: Aluminium construction for reduced noise, minimal vibration, and enhanced durability
• Power Supply: Single Phase 240 V, 50 Hz with thermal protector
• Insulation Class: F
• Protection Rating: IP55
