DAB E.SYBOX Variable Speed Pressure Pump

by DAB
SKU 800621
Original price $2,123.55 - Original price $2,123.55
Original price
$2,123.55
$2,123.55 - $2,123.55
Current price $2,123.55

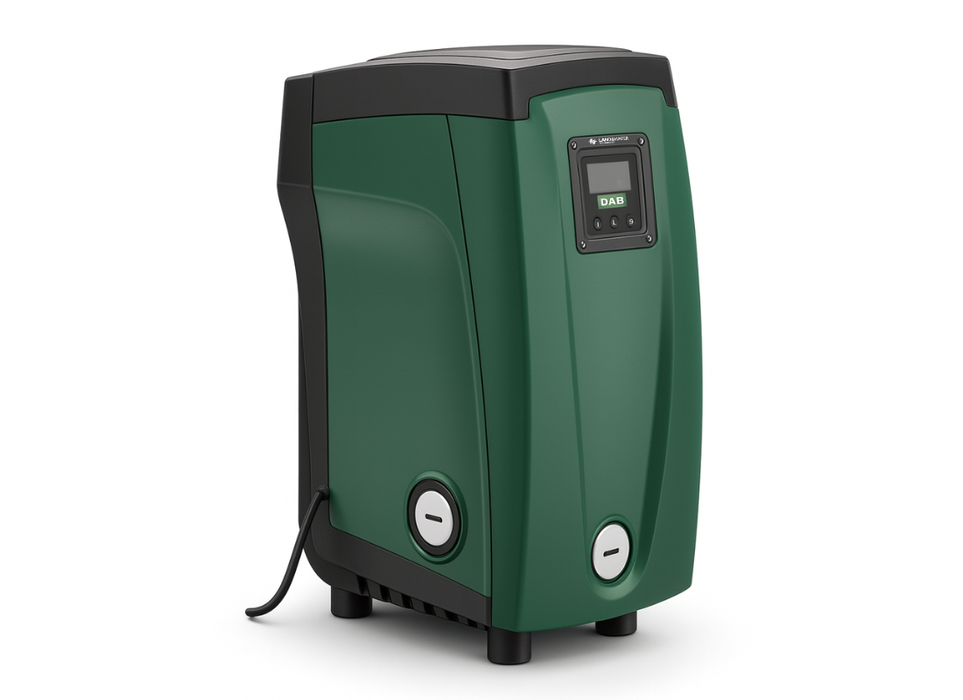

DAB E.SYBOX Variable Speed Pressure Pump 1.55kW 240v

 DOWNLOAD DAB E.SYBOX BROCHURE

 DOWNLOAD DAB E.SYBOX TECHNICAL SHEET



The DAB Esybox is a patented booster system, unique in its category, with high performances, efficient, compact, easy and satisfying in the use both for the installer and the final user. When e.sybox mini is the solution for water boosting in small dwellings, e.sybox offers the same advantages in collective residential applications, such as villas or condos. Wireless technology allows to set up booster sets up to 4 pumps.

The DAB e.sybox is an integrated system for water pressure boosting in domestic and residential applications.Consists of self-priming multistage pump, electronics for control and management, pressure and flowsensors, a high-resolution LCD orientable display and integrated expansion vessel of 2 litres.

The DAB e.sybox is an integrated system for water pressure boosting in domestic and residential applications:

FEATURES

  • Energy Efficient variable speed constant pressure pump
  • Unique self priming multistage pump ideal for long suctions and large homes.
  • Quiet operation - 45 dB in standard use, making them ideal for all high density urban applications that require high efficient performance.
  • Saves 30% of space in comparison with a traditional system
  • Easy maintenance
  • Wireless device to facilitate the creation of pressure booster sets and for connection to other devices
  • AS/NZS4020 approved for drinking water ideal for large, multi level homes and applications.
  • 12 taps, Powerful performance flow up to 2 L/sec and head up to 6 bar
  • Self priming up to 8 metres
  • Dry run protection to stop pump damage if no water is present
  • Consists of self-priming multistage pump, electronics for control and management, pressure and flow sensors, a high-resolution LCD orientable display and integrated expansion vessel of 2 litres.
  • 2 Litre expansion tank protects against thermal fluctuations and reduces pump starts
  • Intelligent anti-freeze protection prevents formation of ice inside unit
  • Energy efficient variable speed constant pressure pump. Easy maintenance.
  • Can be installed in vertical or horizontal position, in a ventilated room or in a recess.
  • Over/under voltage protection and over current protection • Wireless connectivity facilitates the creation of pressure booster sets and connection to other DAB devices
  • 2 Year Parts & Labour Warranty AS/NZS4020 Drinking Water Approved

TECHNICAL SPECIFICATIONS

Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 6.1 Bar
Approval Approved For Drinking Water
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 120 L/min
Hp 2.1 Hp
kPa 618 kPa
Kilo Watts 1.55 kW
Head Range Category c. 60 - 99 m
Max Head (m) 61 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 12 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 1550 W

Pack Weight (KG): 27.00

E.SYAPP

e.syapp is the new DAB mobile application for the line of electronic booster sets that redefine the rules of residential water pressurisation: e.syline!

e.syapp allows you to:

  • Choose the ideal e.syline product for your application.
  • Easily calculate cost-savings on your electricity bill
  • Instant access to installation videos, catalogs, quick guides, data sheets and instruction manuals.

DOWNLOAD E.SYAPP FOR IOS HERE

DOWNLOAD E.SYAPP FOR ANDROID HERE
