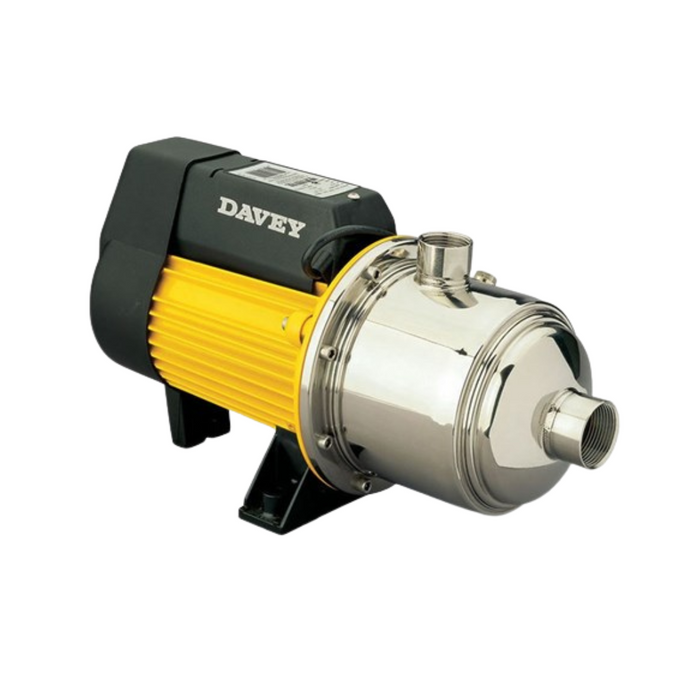

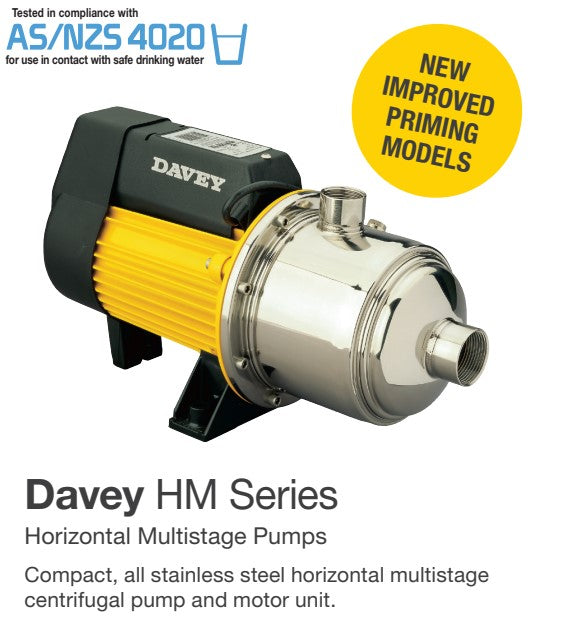

Davey HM90 Series Horizontal Multistage Bare Pressure Pump

The Davey HM Water Pressure System range is a top-of-the-line product specially designed for multi-storey buildings and homes with high water pressure requirements. Featuring a fully stainless-steel pump and hydraulic components, as well as the capability to withstand high water temperatures, this system is ideal for various applications including domestic water supply, agriculture, and irrigation. Its compact design and all stainless steel horizontal multistage centrifugal pump and motor unit make it a reliable choice for efficient water pumping.

FEATURES

• All stainless-steel pump componentry for better corrosion and abrasion resistance, low noise output and reduced power consumption.
• Air purging valve and stage porting for easier priming, and less susceptibility to air leaks.
• Impellers are mounted directly on to the extended motor shaft maximising performance per stage, and increased wear resistance - leading to a long motor & pump life.
• Complete stainless casing attached to motor bracket at 8 points with an o-ring seal, for better sealing.
• Totally enclosed fan cooled (TFEC) electric motor with built in thermal overload protection and automatic reset.

APPLICATIONS

• Water supply, boosting and transfer

• Irrigation and turf watering

• Wash down

• Emptying/filling reservoirs or tanks
• Water treatment (demineralisation, filtering etc)
• Commercial washing equipment

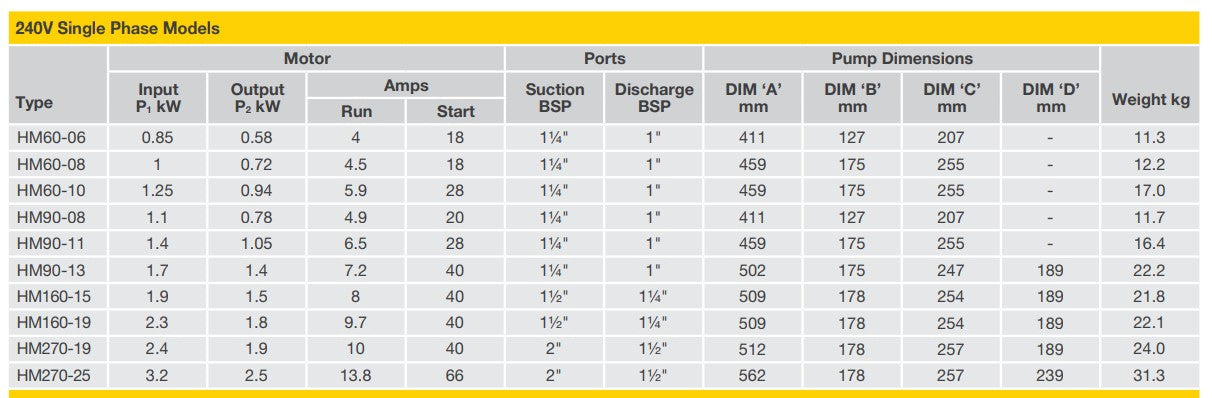

SPECIFICATIONS
