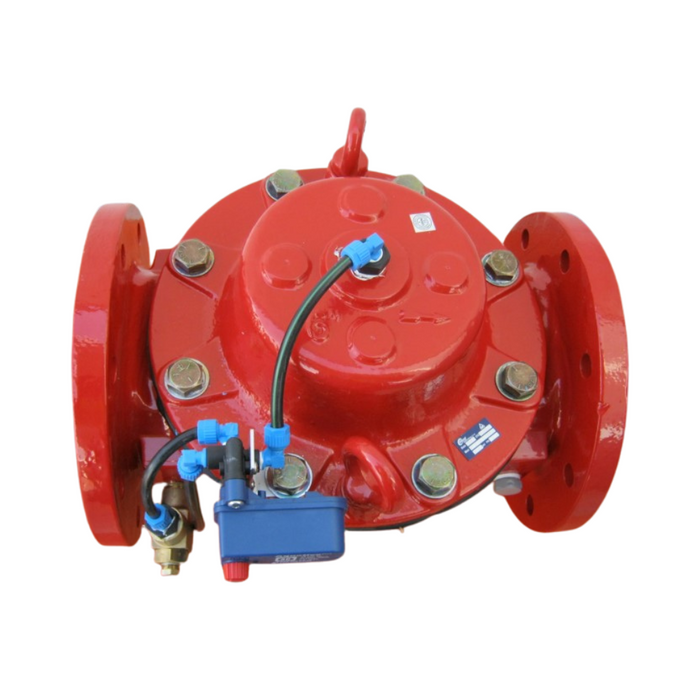

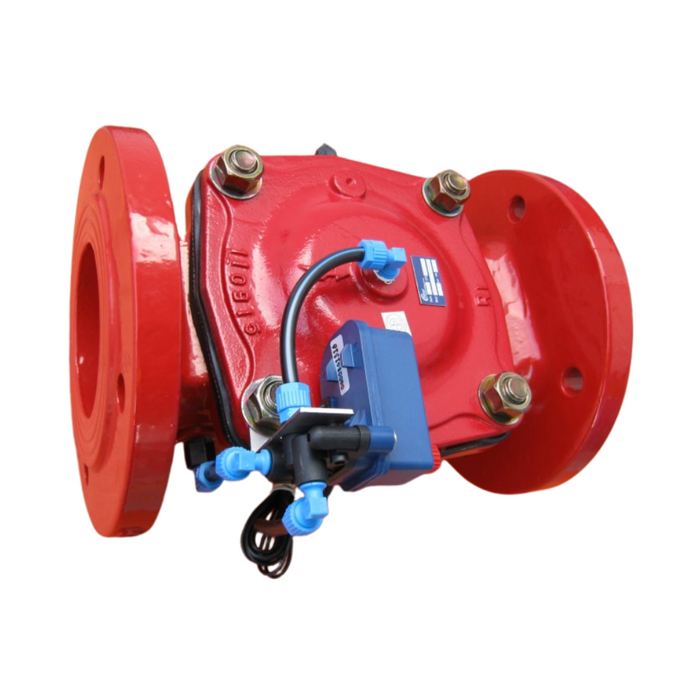

Dorot S100 AQ Series Cast Iron Basic Electric Solenoid Valves with Aquative AC

The Dorot S100 AQ Series is a cast iron diaphragm-actuated valve fitted with the Aquative AC solenoid control module, offering reliable 24V AC electric actuation for modern irrigation and water distribution systems. Designed for compatibility with standard irrigation controllers, the Aquative AC module enables precise remote On/Off control while maintaining full manual operation via an integrated override mechanism.

At the heart of the valve is Dorot’s proven S100 diaphragm-based body, which ensures tight sealing, minimal head loss, and long service life, even under varying pressure and water quality conditions. The Aquative AC module provides dependable solenoid actuation for time-based irrigation or pressure-triggered operation, making it ideal for systems requiring responsive control across multiple zones.

Whether used in irrigation manifolds, filter stations, or municipal automation, the S100 AQ Series with Aquative AC ensures operational reliability and field-ready flexibility.

FEATURES

• Function: Electrically actuated On/Off control
• Control Signal: 24V AC (50/60 Hz)

• Body Style: Globe-pattern (inline flow)

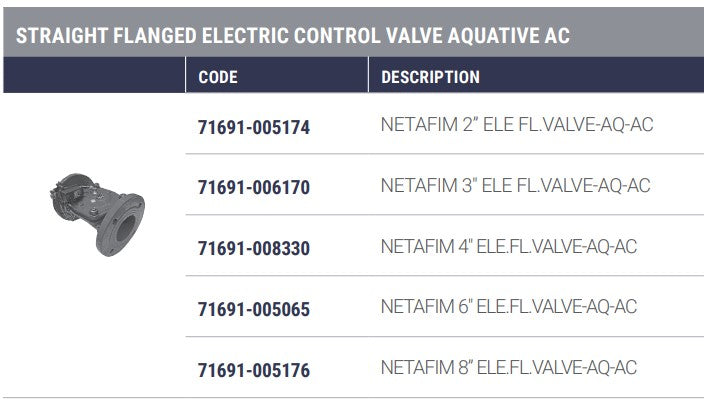

• Available Sizes: DN50 to DN200 (2" – 8")

• Max Fluid Temperature: 60°C (140°F)
• End Connections: Threaded, Flanged
• Body Material: Cast Iron
• Bonnet: Cast Iron
• Diaphragm: Reinforced Natural Rubber (optional: NBR, EPDM, Neoprene)
• Spring: Stainless Steel 302
• Coating: Polyester Epoxy, Rubber, or Nylon
• Relay Valve Manual Override: Built-in 3-position selector

BENEFITS

• Seamlessly integrates with irrigation automation systems
• Aquative AC provides reliable, low-power solenoid control
• Manual override ensures operation during controller failure or maintenance
• Compact, corrosion-resistant construction with high flow capacity
• Low head loss and dependable diaphragm-based sealing
• Suitable for both open-field and municipal irrigation infrastructure
