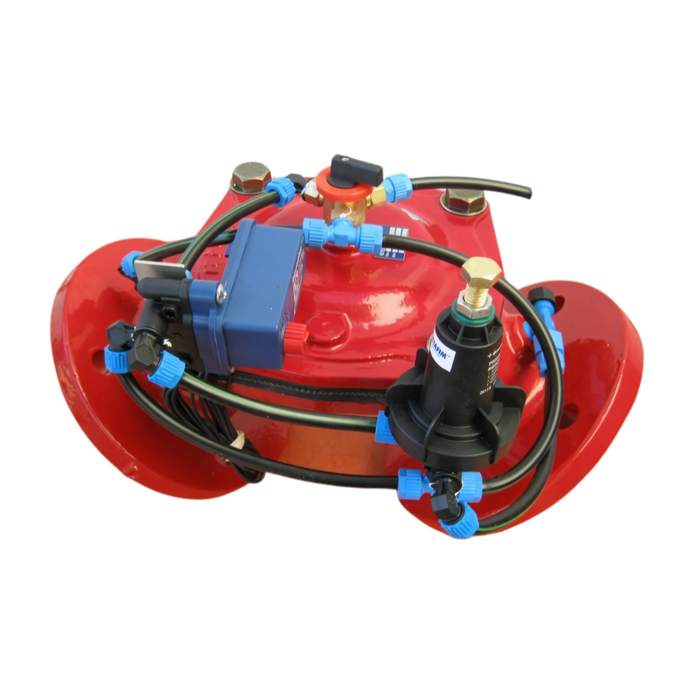

Dorot S100 PR/AQ Series Cast Iron Hydraulic Pressure Reducing/Electric Solenoid Angle Valves with Aquative DC

The Dorot S100 PR/AQ Series Angle Valve with Aquative DC combines automatic hydraulic pressure reduction with 12V DC electric solenoid On/Off control, packaged in a compact angle-pattern body ideal for installations with limited space. This dual-function valve is engineered for precise downstream pressure regulation and remote flow control—making it the perfect choice for irrigation manifolds, pump-fed zones, and filtration systems.

The Aquative DC solenoid is compatible with standard irrigation controllers and includes an integrated manual override switch, allowing users to quickly switch between open, closed, or automatic modes during setup, servicing, or in the event of controller failure.

Constructed from rugged cast iron and powered by Dorot’s proven diaphragm-operated design, this model ensures tight shutoff, low head loss, and long-term durability, even in challenging water conditions.

FEATURES

• Function: Combined Pressure Reducing + Electric On/Off

• Solenoid Type: Aquative AC (12V DC compatible with irrigation timers and controllers)
• Body Type: 90° Angle-pattern for reduced pressure loss and simplified piping
• Available Sizes: DN80 to DN200 (3" – 4")

• Max Fluid Temperature: 60°C (140°F)
• End Connections: Flanged
• Body Material: Cast Iron
• Bonnet: Cast Iron
• Diaphragm: Reinforced Natural Rubber (optional: NBR, EPDM, Neoprene)
• Spring: Stainless Steel 302
• Coating: Polyester Epoxy, Rubber, or Nylon
• Manual Override: Integrated into Aquative DC module

BENEFITS

• Ensures stable downstream pressure in irrigation and water supply systems
• Ideal for battery- or solar-powered irrigation zones with no grid access
• Energy-efficient latching solenoid for long battery life
• Seamless integration with remote irrigation controllers (DC pulse signal)
• Manual override switch provides added control in the field
• Durable cast iron valve body with corrosion-resistant coating
• Perfect for remote manifolds, tank filling lines, and pressure-regulated blocks
