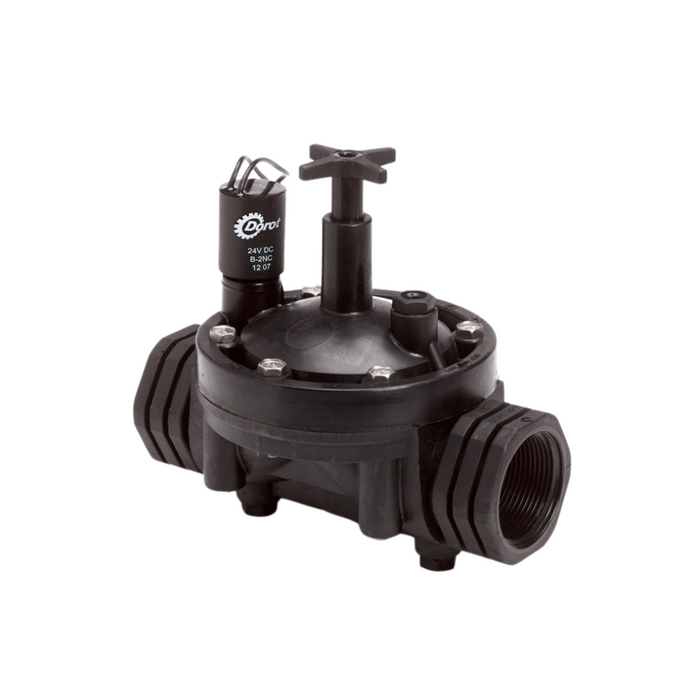

Dorot S75 ED2 Series Reinforced Nylon Electric 2-Way Solenoid Valves

The Dorot S75 ED2 Series is an electric 2-way solenoid valve made of reinforced nylon, designed for accurate on/off control in automated irrigation systems. Perfect for use in various agricultural settings, such as open fields, orchards, vineyards, and greenhouses, this valve offers both high hydraulic performance and smart construction, making it a reliable choice for advanced irrigation networks.

Crafted with reinforced nylon and corrosion-resistant internal parts, the S75 ED2 boasts remarkable durability for use in demanding agricultural settings. With Dorot's superior asymmetrical diaphragm design, the valve provides seamless opening and closing, precise regulation, and minimal pressure drop, even at low flow rates. The valve's integrated, obstruction-free inlet and stainless steel filter guarantee dependable operation in dirty water environments.

The 2-way electric solenoid actuation allows for direct and remote control via irrigation controllers, enabling highly efficient water management across large and complex systems. Maintenance is fast and simple thanks to a removable flow control stem handle and modular bonnet-mounted control components.

FEATURES

• Available sizes: DN20 – DN200 (¾" – 8")
• Body & cover: Reinforced Nylon
• Internals: Stainless Steel & Polymer
• Seals/diaphragm: Natural Rubber

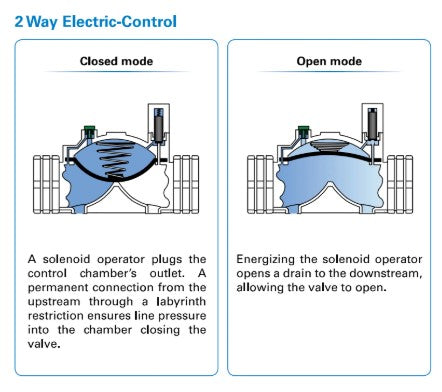

• Electric 2-Way Solenoid On/Off Control
• Electric solenid with 2-way function
• Highly resistant to corrosion, chemicals, and fertilizers
• Supports a wide range of irrigation applications and system designs

BENEFITS

• Simple & Easy maintenance
• Superb hydraulic performance - unmatched high flow capacity
• Durable, corrosion free materials
• Unique clog-free labyrinth inlet in the electric 2-way valves
• Optional check feature
• Operates at a wide range of flow rates, from near zero to maximal flow
• Electric 2-way or hydraulic / electric 3-way actuation
• Optional flow control throttle handle
• Suitable for Low pressure system
• Simplicity - Only 4 parts: Body- Diaphragm – Spring* - Bonnet
