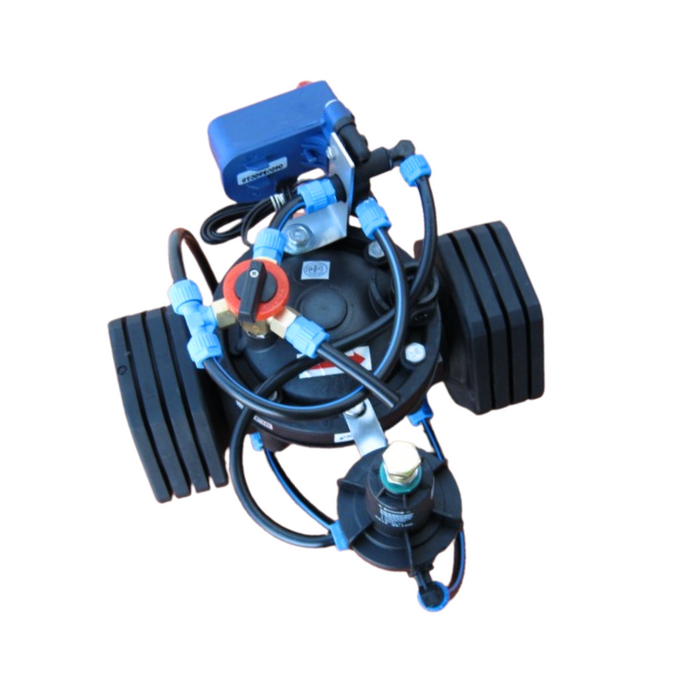

Dorot S75 PR/AQ Series Reinforced Nylon Basic Hydraulic Pressure Reducing/Electric Solenoid Valves with Aquative AC

The Dorot S75 PR/AQ Series with Aquativ AC is a smart, fully integrated solution that combines automatic downstream pressure regulation with app-based solenoid control—delivering next-generation performance and convenience for precision irrigation systems. Designed for open fields, orchards, vineyards, and greenhouse operations, this valve ensures consistent water pressure and flow control while giving users the power to manage irrigation directly from their smartphones.

Constructed from durable reinforced nylon, the S75 PR/AQ valve features Dorot’s asymmetrical diaphragm for smooth, surge-free operation, minimal head loss, and excellent flow regulation, even at fluctuating or low flow rates. The pressure-reducing function ensures stable downstream pressure regardless of upstream variations, protecting drip lines, sprinklers, and sensitive irrigation components.

Paired with the Aquativ AC controller, the system enables Bluetooth connectivity, allowing users to configure irrigation schedules, activate valves manually, and monitor system status via the Aquativ mobile app. This battery-powered, weather-resistant module eliminates the need for wiring, making it ideal for new installations and retrofits alike.

FEATURES

• Function: Pressure Reducing with Electric On/Off Solenoid Control
• Control: Aquative AC with Bluetooth/app-based interface
• Available sizes: DN40 – DN100 (1 1/2" – 4")
• Body & cover: Reinforced Nylon
• Internals: Stainless Steel & Polymer
• Seals/diaphragm: Natural Rubber
• Highly resistant to corrosion, chemicals, and fertilizers
• Supports a wide range of irrigation applications and system designs
• Pressure Rating PN10, PN12
• Operating pressure range: 0.4 - 10 bar (6 - 145 psi)

BENEFITS

• Simple & Easy maintenance
• Superb hydraulic performance - unmatched high flow capacity
• Durable, corrosion free materials
• Operates at a wide range of flow rates, from near zero to maximal flow
• Maintains stable downstream pressure for uniform irrigation
• Wireless control and scheduling through Aquativ mobile app
• Battery-powered – no hard wiring or external power required
• Clog-resistant design with integrated stainless steel filter
• Ideal for remote zones and off-grid applications
• Quick, in-line maintenance with bonnet-mounted components
• Long-lasting, corrosion-resistant construction for harsh environments

AQUATIVE AC FEATURES

• Bluetooth-enabled local control
• App-based scheduling and manual override
• Battery-powered (no hard wiring needed)
• LED status indicators and weather-resistant housing
• Easy installation and pairing with S75 valve series
