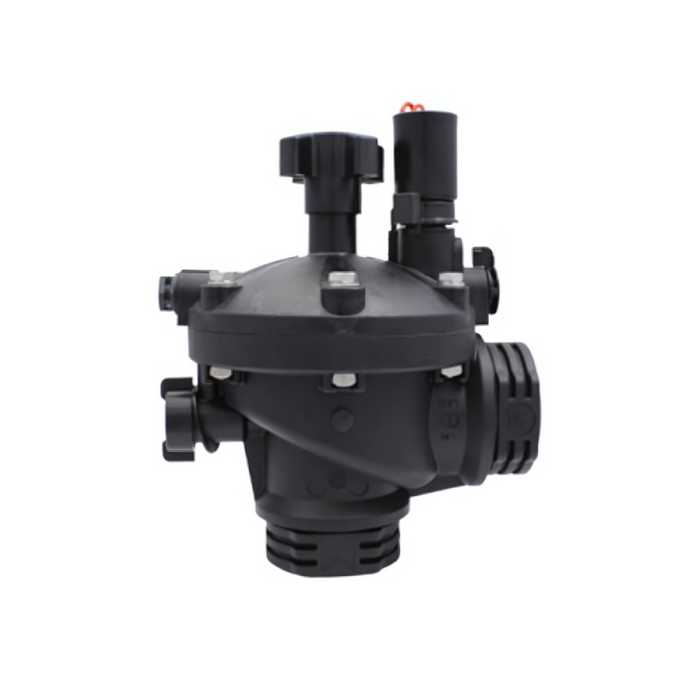

Dorot S80 ED2 Series Reinforced Nylon Electric 2-Way 24AC Electric Angled Solenoid Valves

The Dorot S80 ED2 Series Electric 2-Way Angled Solenoid Valve is designed for precise, automatic irrigation control in open fields, greenhouses, and filter stations. With its space-saving angle-pattern body and integrated 24V AC solenoid actuator, this valve provides fast and reliable electric on/off functionality while reducing the need for additional pipe fittings.

Manufactured from reinforced nylon, the S80 ED2 is highly resistant to corrosion, UV degradation, and agricultural chemicals—making it an ideal solution for harsh field conditions. The built-in stainless steel filter and clog-resistant diaphragm mechanism ensure uninterrupted performance, even in water with debris or sediment.

The valve's all-in-one design includes a 3-position manual override and electric coil mounted directly on the bonnet—eliminating the need for external tubing and simplifying both installation and servicing.

FEATURES

• Function: Electric On/Off Control (2-Way)
• Actuation: 24V AC Solenoid Coil with 3-position manual override

• Available Sizes: DN40-50
• Pressure Rating: PN10
• Operating Pressure: 0.7 – 10 bar (10 – 145 psi)

• Maximum Temperature: 70°C (160°F)
• Settable Relief Range: 1 – 9 bar (15 – 130 psi)
• Control Chamber Volume:
• Materials
  • Body & Bonnet: Reinforced Nylon (GRP)
  • Diaphragm Assembly: Natural Rubber (NR)
• Internal Filter: Integrated stainless steel screen
• Manual Override: 3-position handle (Open / Closed / Auto)

BENEFITS

• Instant electric activation for zone valves, fertigation, and backflush control
• Angle-pattern reduces pressure loss and simplifies pipe layout
• Reinforced nylon construction for chemical and UV resistance
• Integrated stainless steel filter for clog prevention
• Quick installation with no external tubing required
• Manual override allows local control during maintenance or power outage
• Ideal for irrigation systems using 24V AC controllers and automation setups

SPECIFICATIONS

• Max. Pressure: 10 bar (145 psi)
• Min. Operating Pressure: 0.7 bar (10 psi)
• Recommended Min. Flow: 1 m³/h (5 gpm)
• Max. Fluid Temperature: 70°C (160°F)
• Materials:
• Body & Bonnet: Reinforced Nylon
• Diaphragm: Natural Rubber
• Spring: Stainless Steel 302
