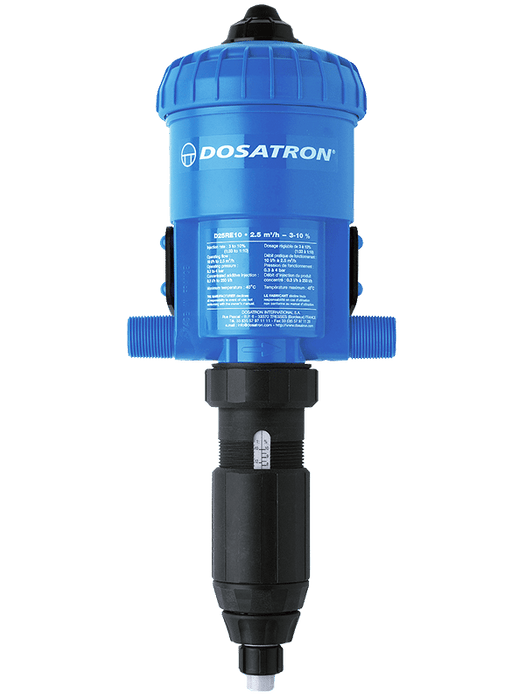

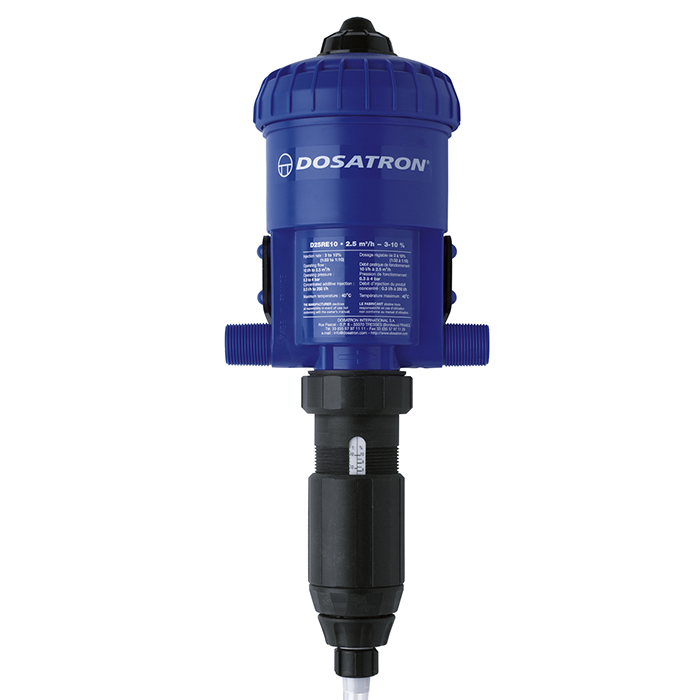

Dosatron D25RE10 3.00%-10% High Injection Chemical Dosing Pump (4-34LPM)
Dosatron D25RE10 3.00%-10% Chemical Dosing Pump (4-34LPM)
| DOWNLOAD USER MANUAL |
The Dosatron D25RE10 is designed for high-concentration dosing applications, offering an adjustable dosing range from 3.00% to 10%, with a flow rate capacity of 4 to 34 liters per minute. This model is ideal for situations where stronger chemical solutions are required, such as in cleaning and disinfection, livestock treatment, or industrial processing. The D25RE10 ensures accurate and proportional dosing, delivering consistent results even when water pressure varies. Its non-electric operation reduces energy costs and simplifies installation, making it a practical choice for both remote locations and complex systems. Built for reliability and ease of use, the D25RE10 is a robust solution for high-concentration chemical dosing, providing the precision and durability you need to maintain effective and efficient operations.

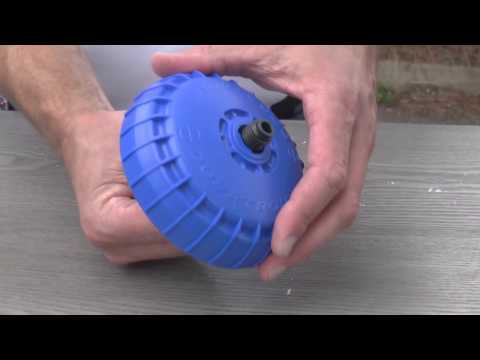

Purchase Injection Seal Kit (Part #: PJ120) - For yearly maintenance
SPECIFICATIONS
|
Dilution Range: |
1:33 to 1:10 (3% to 10%) |
|
Water Flow Range: |
0.05 to 8.8 GPM |
|
Operating Pressure Range: |
4.3 to 58 PSI |
|
Available Housing Materials: |
Polyacetal (Standard Blue) |
|
Other Options: |
Side-inject |
|
Dimensions: |
14” x 6 1/4” |
|
Weight: |
4 lbs |
|
Connection Size: |
3/4” NPT |
|
Maximum Temperature: |
104o F |
|
Included Accessories: |
4’ clear suction tube, strainer, weight, mounting bracket and quick start guide |
|
Recommended Accessories: |

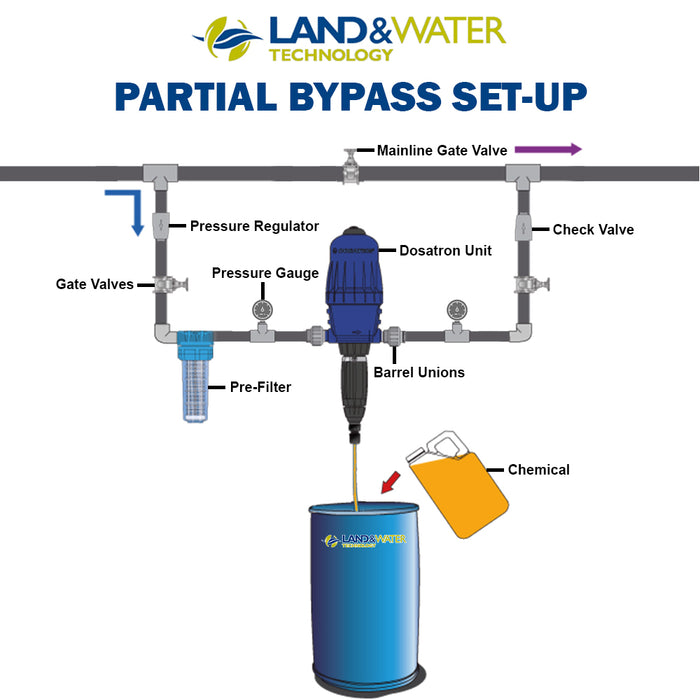

200 mesh filter, check valve, pressure regulator, flow restrictor |
