Franklin Electric 100DTMSP-1.1 4" Solar Bore Pump Kit Excluding Panels - Post Mount

The Franklin Electric 100DTMSP-1.1 Solar Bore Pump Kit provides a solar-powered pumping solution for rural water supply, livestock watering and bore-to-tank transfer. Combining a 4" submersible pump and motor with a DrivE-Tech MINI Solar MP controller, this package brings together the core pumping and control components required for connection to a compatible solar array. Its 1.1kW motor is paired with a 10-stage pump end in the 100 L/min nominal flow range, with selection based on the bore’s pumping water level, delivery elevation, pipework losses and required daily water volume.

The DrivE-Tech MINI Solar MP controller converts power from a separately supplied solar array into a controlled electrical supply for the submersible motor. Maximum Power Point Tracking helps optimise the use of available solar energy, while variable-speed operation allows pumping output to adjust as sunlight changes throughout the day. Integrated voltage boost, built-in diagnostics and motor protection functions support solar pumping operation, with the supplied flow switch and 32mm stainless steel manifold providing the components for flow monitoring within a correctly installed and configured system.

Supplied with a 304 stainless steel pump and motor, splice kit and pole mounting bracket, the 100DTMSP-1.1 provides a practical package for new solar bore installations or compatible replacement systems. The -PM suffix identifies the pole mounting bracket for the controller assembly, distinguishing this kit from the ground-mount configuration. Solar panels and the solar array frame are not included and must be selected separately to suit the controller’s electrical requirements, site conditions and desired pumping performance.

FEATURES

• Franklin Electric 4" submersible solar bore pump package.
• 1.1kW motor paired with a 10-stage pump end.
• DrivE-Tech MINI Solar MP controller.
• Maximum Power Point Tracking to optimise available solar input.
• Variable-speed operation to accommodate changing sunlight.
• Integrated controller voltage boost.
• Built-in diagnostics and motor protection functions.
• Dry-run protection when correctly configured.
• IP66-rated controller enclosure.
• 304 stainless steel pump and motor.
• 2" BSPP pump outlet.
• Pole mounting bracket supplied for the controller assembly.
• Flow switch and 32mm stainless steel manifold included.
• Splice kit supplied for the motor cable connection.
• Solar panels and array frame selected separately to suit the installation.

SPECIFICATIONS

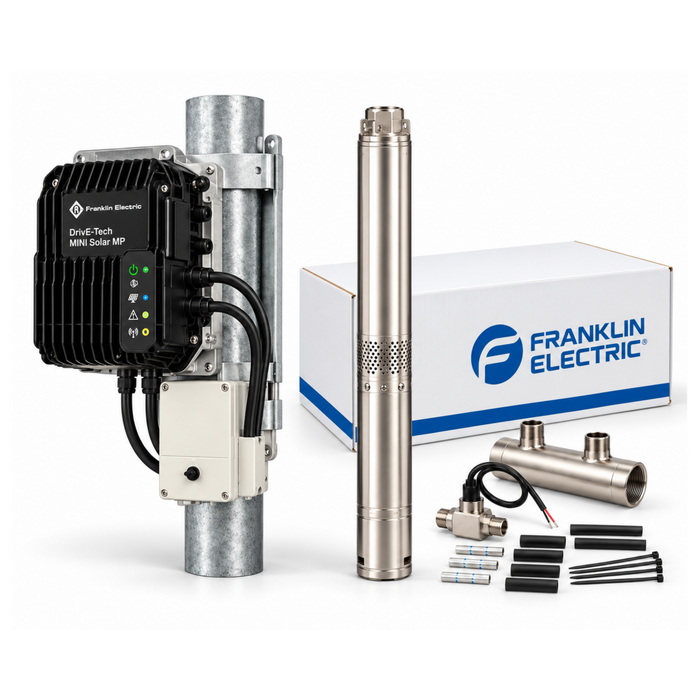

INCLUSIONS

• DrivE-Tech MINI Solar MP controller.
• Pole mounting bracket for the controller assembly.
• 304 stainless steel submersible pump and motor.
• Splice kit.
• Flow switch.
• 32mm stainless steel manifold.

APPLICATIONS

• Livestock drinking water supply.
• Bore-to-tank water transfer.
• Remote farm and rural property water supply.
• Off-grid bore pumping.
• Storage tank replenishment for irrigation, subject to system sizing.
• Replacement solar bore pumping installations, subject to compatibility checks.

SELECTION AND INSTALLATION INFORMATION

• Solar array required: Solar panels and the solar array frame are excluded. Select a compatible array to meet the controller’s electrical requirements and required pumping duty.
• Post-mount configuration: The supplied bracket supports the controller assembly on a suitable pole. It is separate from the solar panel mounting frame.

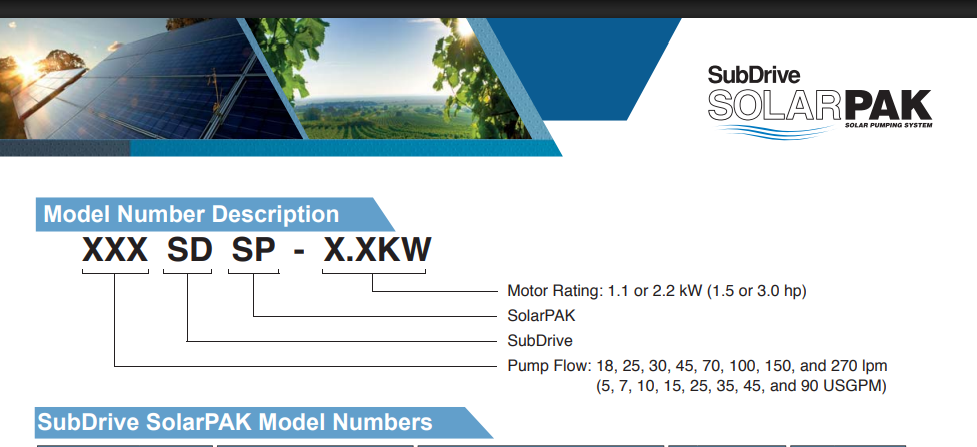

• Flow designation: The 100 L/min figure identifies the pump’s nominal flow range; it is not its maximum flow.

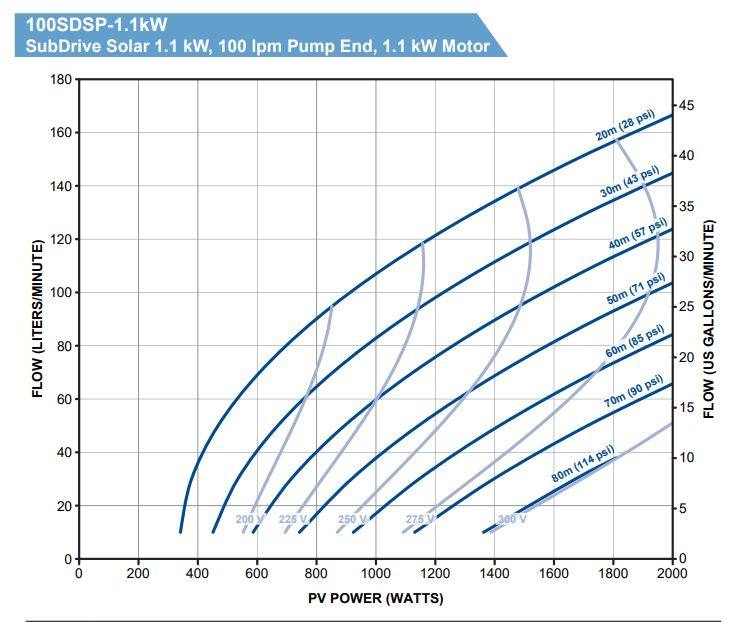

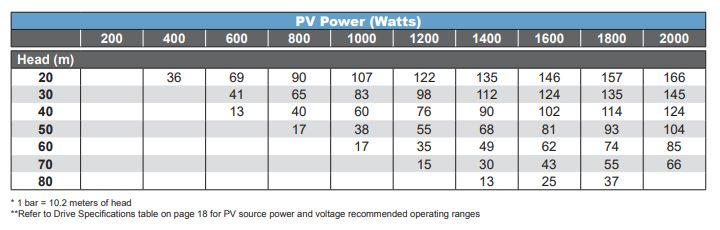

• Performance: Actual delivery depends on available solar power, pumping water level, delivery elevation and pipework friction losses.
• Pipework connections: The pump has a 2" BSPP outlet, while the supplied manifold is 32mm. Select suitable connecting fittings and pipework for the installation.
• System sizing: Confirm the required daily water volume and total dynamic head before selecting the pump and solar array.
• Installation accessories: Select the required submersible cable, rising main, fittings and level controls separately.
• Backup power: Confirm any mains or generator backup requirements when ordering. AC changeover equipment is not included in the confirmed kit contents.
