Franklin Electric 30DTMSP-1.1 4" Solar Bore Pump Kit Excluding Panels - Post Mount

The Franklin Electric 30DTMSP-1.1 Solar Bore Pump Kit provides a solar-powered water supply solution for livestock watering, rural properties and remote bore installations. Combining a 4" submersible pump and motor with a DrivE-Tech MINI Solar MP controller, this package includes the core pumping and control components required for connection to a compatible solar array. Featuring a 1.1kW motor and an 18-stage pump end in the 30 L/min nominal flow range, the kit can be selected for bore-to-tank applications according to pumping depth, delivery elevation and daily water requirements.

The DrivE-Tech MINI Solar MP controller converts power from a separately supplied solar array into a controlled electrical supply for the submersible motor. Maximum Power Point Tracking helps make effective use of available solar energy, while variable-speed operation allows pumping output to adjust as sunlight changes. Built-in diagnostics and motor protection support dependable operation, and the included flow switch and 32mm stainless steel manifold provide the components for flow monitoring within a correctly installed and configured system.

Supplied with a 304 stainless steel pump and motor, splice kit and pole mounting bracket, this post-mount package offers a practical starting point for a new solar bore installation or a compatible replacement system. The -PM suffix identifies the pole mounting bracket for the controller assembly, distinguishing it from the ground-mount version. Solar panels and the solar array frame are not included, allowing these components to be selected separately to suit the installation location, electrical requirements and desired water delivery.

FEATURES

• Franklin Electric 4" submersible solar bore pump package.
• 1.1kW motor paired with an 18-stage pump end.
• DrivE-Tech MINI Solar MP controller.
• Maximum Power Point Tracking to optimise use of available solar input.
• Variable-speed pump control to accommodate changing sunlight.
• Built-in diagnostics and motor protection functions.
• Dry-run protection when correctly configured.
• 304 stainless steel pump and motor.
• Pole mounting bracket supplied for the controller assembly.
• Flow switch and 32mm stainless steel manifold included.
• Splice kit supplied for the motor cable connection.
• Solar panels and array frame selected separately to suit the installation.

SPECIFICATIONS

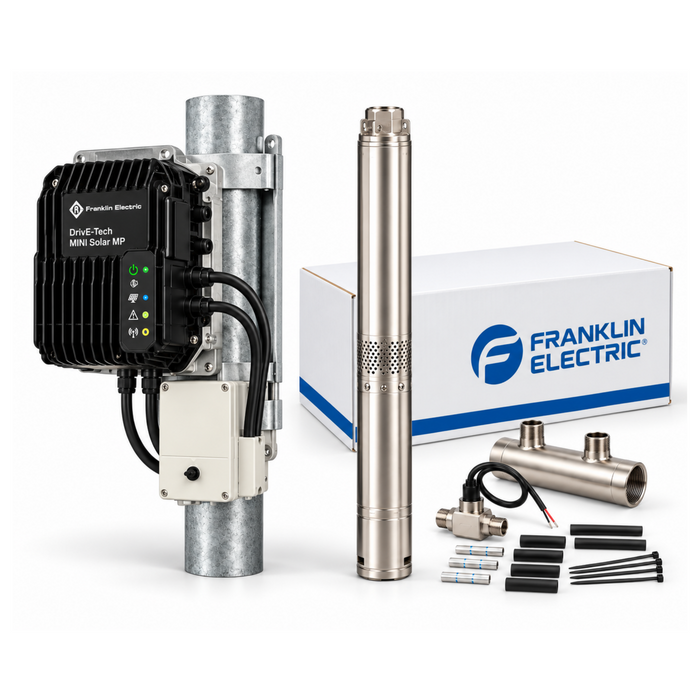

INCLUSIONS

• DrivE-Tech MINI Solar MP controller.
• Pole mounting bracket for the controller assembly.
• 304 stainless steel submersible pump and motor.
• Splice kit.
• Flow switch.
• 32mm stainless steel manifold.

APPLICATIONS

• Livestock drinking water supply.
• Bore-to-tank water transfer.
• Remote farm and rural property water supply.
• Off-grid bore pumping.
• Storage tank replenishment for irrigation, subject to system sizing.
• Replacement solar bore pumping installations, subject to compatibility checks.

SELECTION AND INSTALLATION INFORMATION

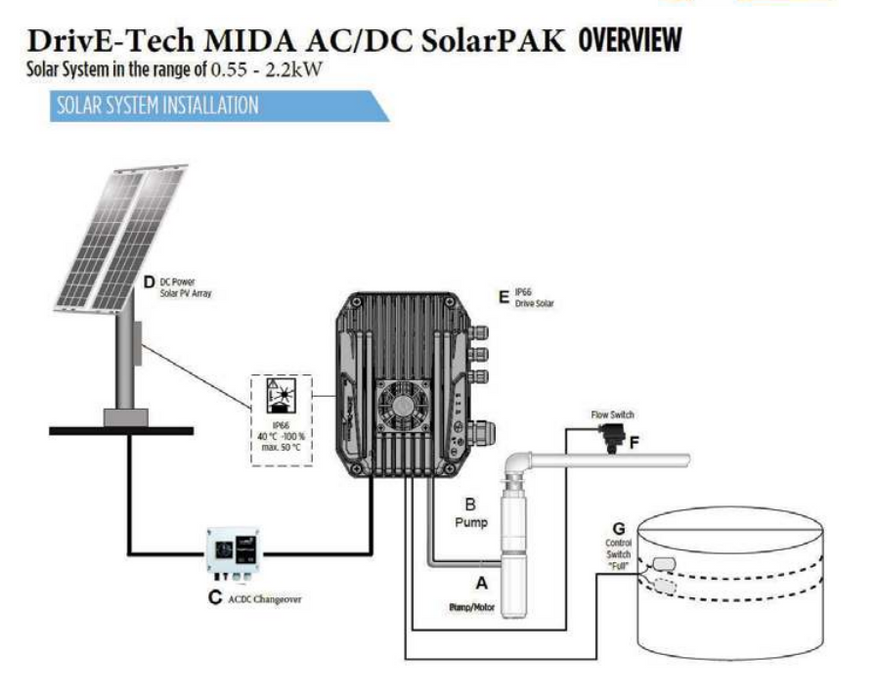

• Solar array required: Solar panels and the solar array frame are excluded. Select a compatible array to meet the controller’s electrical requirements and the required pumping duty.
• Post-mount configuration: The included bracket mounts the controller assembly to a suitable pole. It is separate from the solar panel mounting frame.
• Flow designation: The 30 L/min figure identifies the pump’s nominal flow range; it is not its maximum flow.

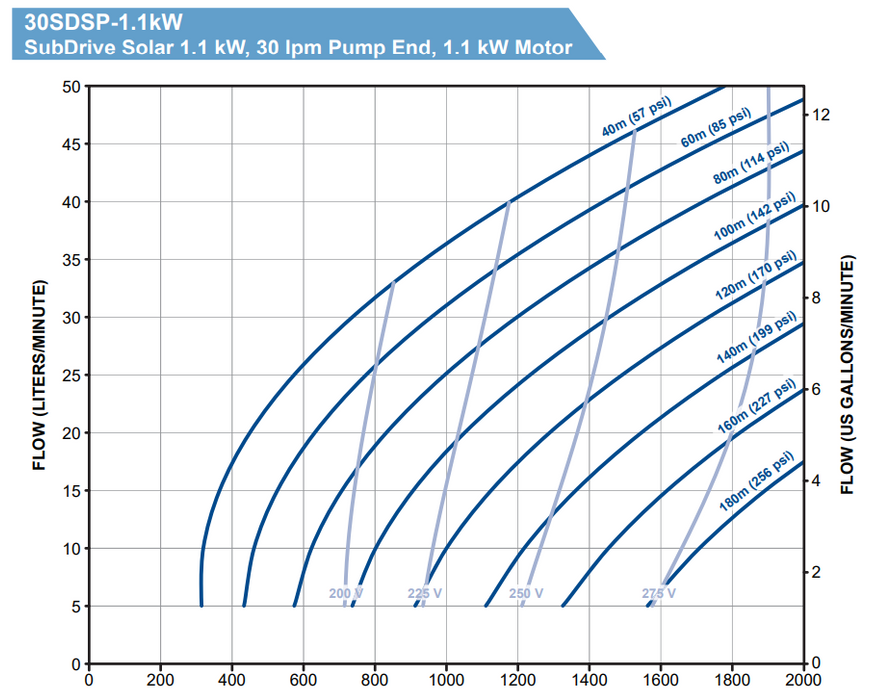

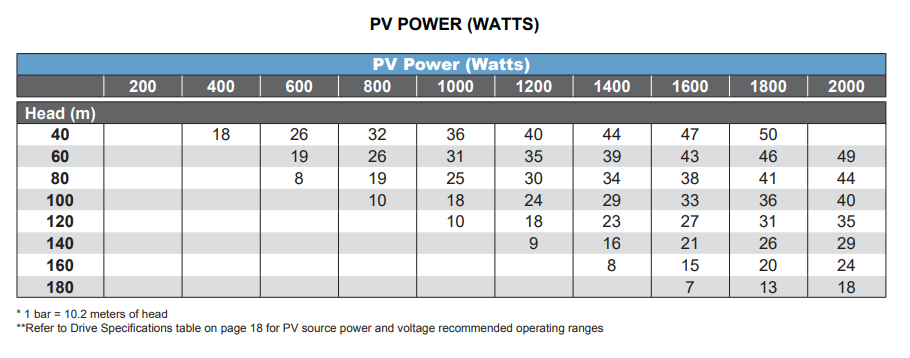

• Performance: Actual water delivery depends on available solar power, pumping water level, delivery elevation and pipework friction losses.
• System sizing: Confirm the required daily water volume and total dynamic head before selecting the pump and solar array.
• Installation accessories: Select the required submersible cable, rising main, fittings and level controls separately.
• Backup power: Confirm any mains or generator backup requirements when ordering; AC changeover equipment is not included in the confirmed kit contents.
