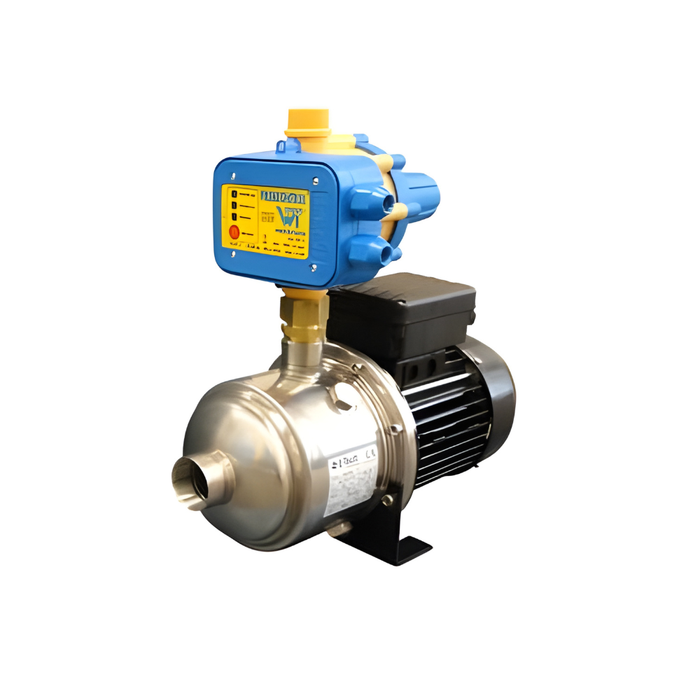

Franklin Electric 5AMH Series Horizontal Multistage Pressure Pump with 1.5 Bar Controller (Max 80LPM/540kPa)

The Franklin Electric 5AMH Series Horizontal Multistage Pressure Pump delivers outstanding performance, reliability and efficiency for a wide range of domestic and light commercial water supply applications. Built with precision-engineered 300 series stainless steel components, the 5AMH pump ensures corrosion resistance and long-lasting operation even under demanding conditions.

This compact, close-coupled multistage pump is ideal for water pressure boosting, irrigation, washdown and rainwater harvesting systems. It features a heavy-duty motor shaft, robust bearings, and a high-efficiency hydraulic design to maintain strong pressure with minimal noise and vibration. The included 1.5 Bar controller provides automatic operation, dry-run protection and consistent water pressure throughout your system.

APPLICATION

• Domestic and light commercial water supply systems
• Pressure boosting and water distribution
• Garden irrigation and sprinklers
• Rainwater harvesting systems
• Washdown units and small industrial installations

FEATURES

• Superior hydraulic efficiency with quiet operation
• Heavy-duty oversized motor shaft for reliability and long life
• 300 series stainless steel body, impellers and diffusers
• Easy maintenance with durable ball bearings
• Single-phase models supplied with AU/NZ plug
• Built-in thermal relay for motor protection
• Supplied with 1.5 Bar automatic controller for consistent pressure and dry-run protection

SPECIFICATIONS

• Max Flow: 80 LPM
• Max Pressure: 540 kPa
• Flow Range: up to 14 m³/h at 50 Hz (3, 5, and 9 m³/h models)
• Head Range: up to 10 bar
• Inlet: 1¼" BSP MH
• Outlet: 1" BSP MH
• Max Working Pressure: 10 bar
• Max Ambient Temperature: 40°C
• Liquid Temperature Range:
  • Single-phase: -15°C to 55°C
  • Three-phase: -15°C to 110°C
• Motor: Asynchronous, TEFC, Class F insulation, IP55 protection
• Electrical: Capacitor inside terminal box; single-phase with built-in thermal relay

INCLUDED

• Franklin Electric 5AMH Stainless Steel Multistage Pump
• 1.5 Bar Pump Controller with Dry-Run & Restart Protection
• Pre-wired AU/NZ Plug (Single-Phase)
• User Manual
