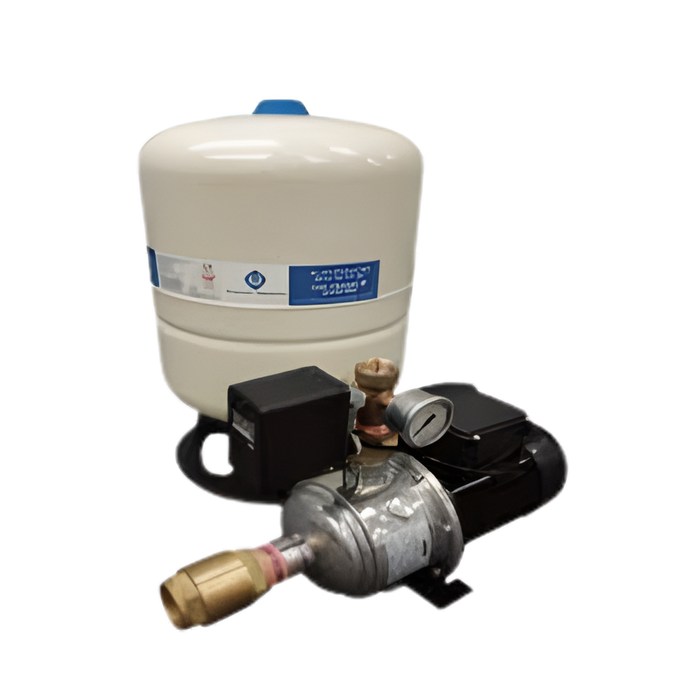

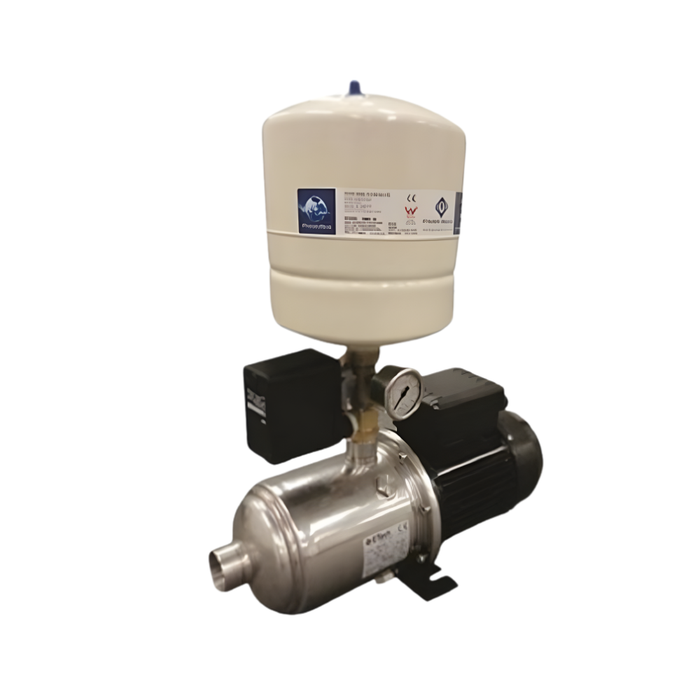

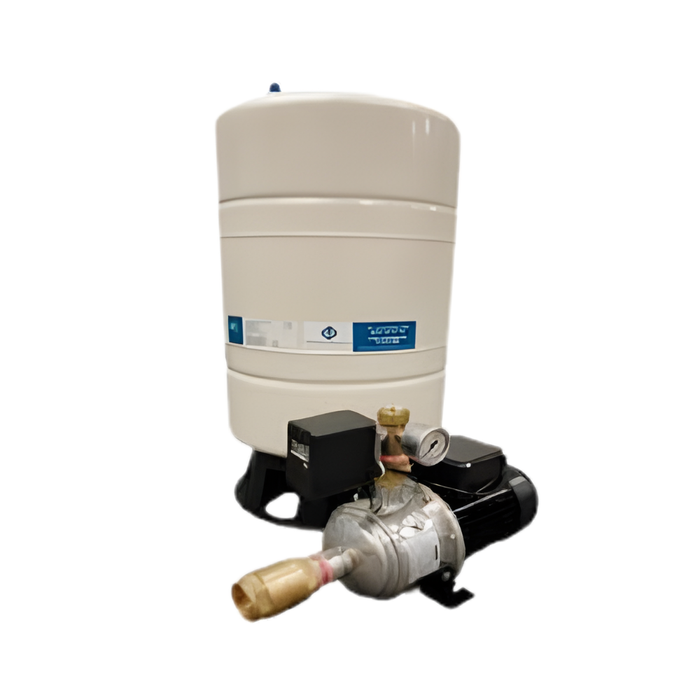

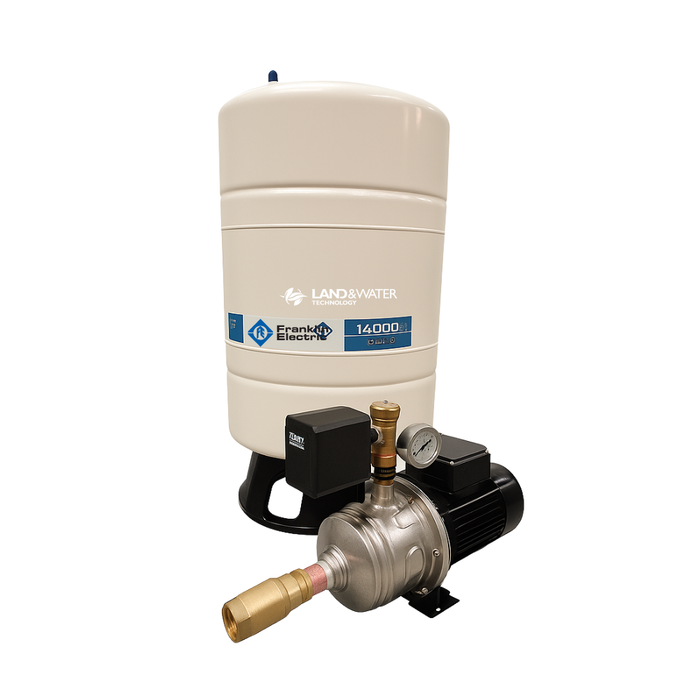

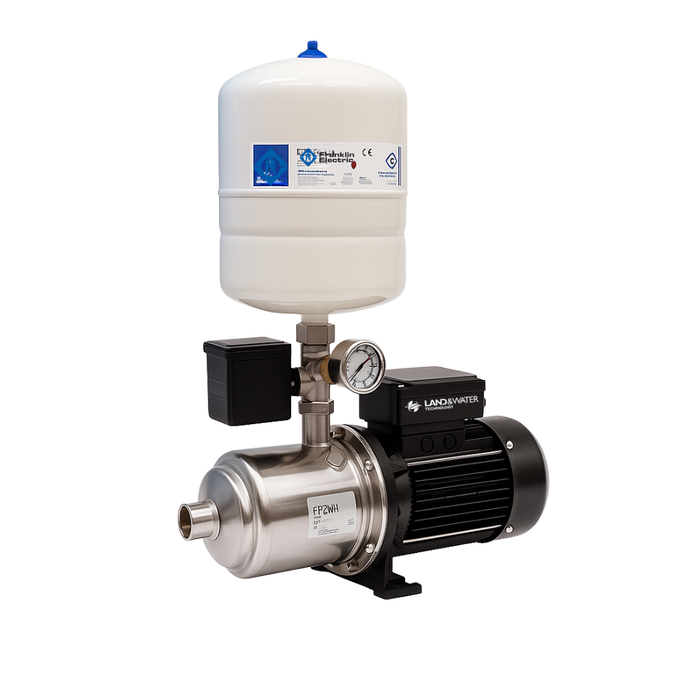

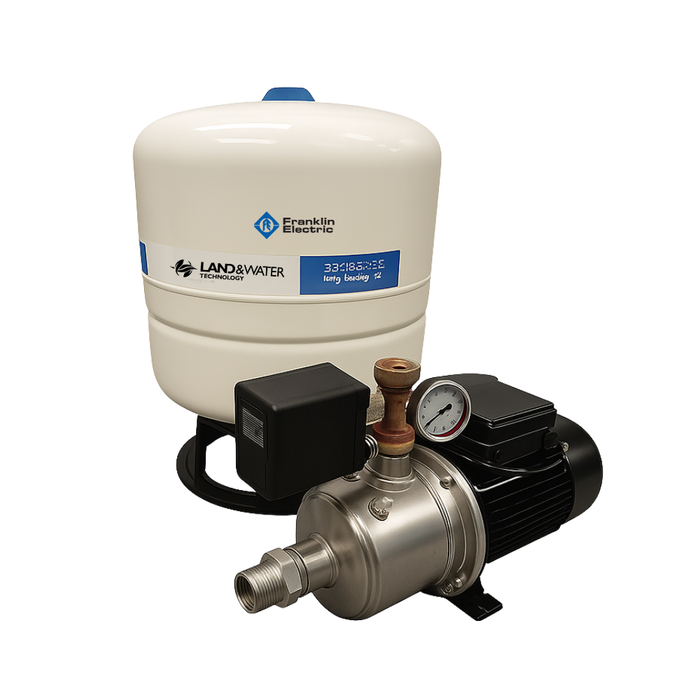

Franklin Electric 5AMH Series Horizontal Multistage Pressure Pump with Pressure Switch & Tank (Max 80LPM/540kPa)

The Franklin Electric 5AMH Series Horizontal Multistage Pressure Pump with Pressure Switch & Tank is a high-performance stainless steel pressure system designed to deliver consistent and reliable water pressure for domestic and light commercial applications. Built with Franklin’s robust MH stainless steel multistage pump, this package offers superior hydraulic efficiency, low noise, and long-lasting durability.

Each system comes complete with a mechanical pressure switch and a pre-charged accumulator tank (available in various sizes), ensuring automatic operation and stable pressure performance. The pressure switch starts and stops the pump based on system demand, while the tank minimizes cycling, providing smoother flow and energy efficiency. Ideal for homes, irrigation systems, washdown units, and rainwater harvesting applications, this pump package provides a dependable all-in-one pressure solution.

APPLICATION

• Domestic and light commercial water supply systems
• Pressure boosting and water distribution
• Garden irrigation and sprinklers
• Rainwater harvesting systems
• Washdown units and small industrial installations

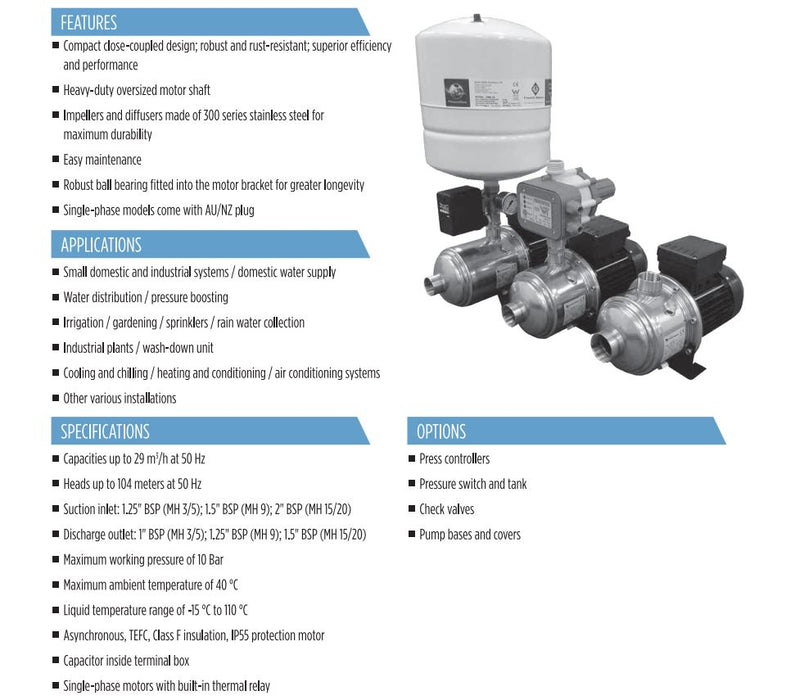

FEATURES

• Superior hydraulic efficiency with quiet operation
• Heavy-duty oversized motor shaft for reliability and long life

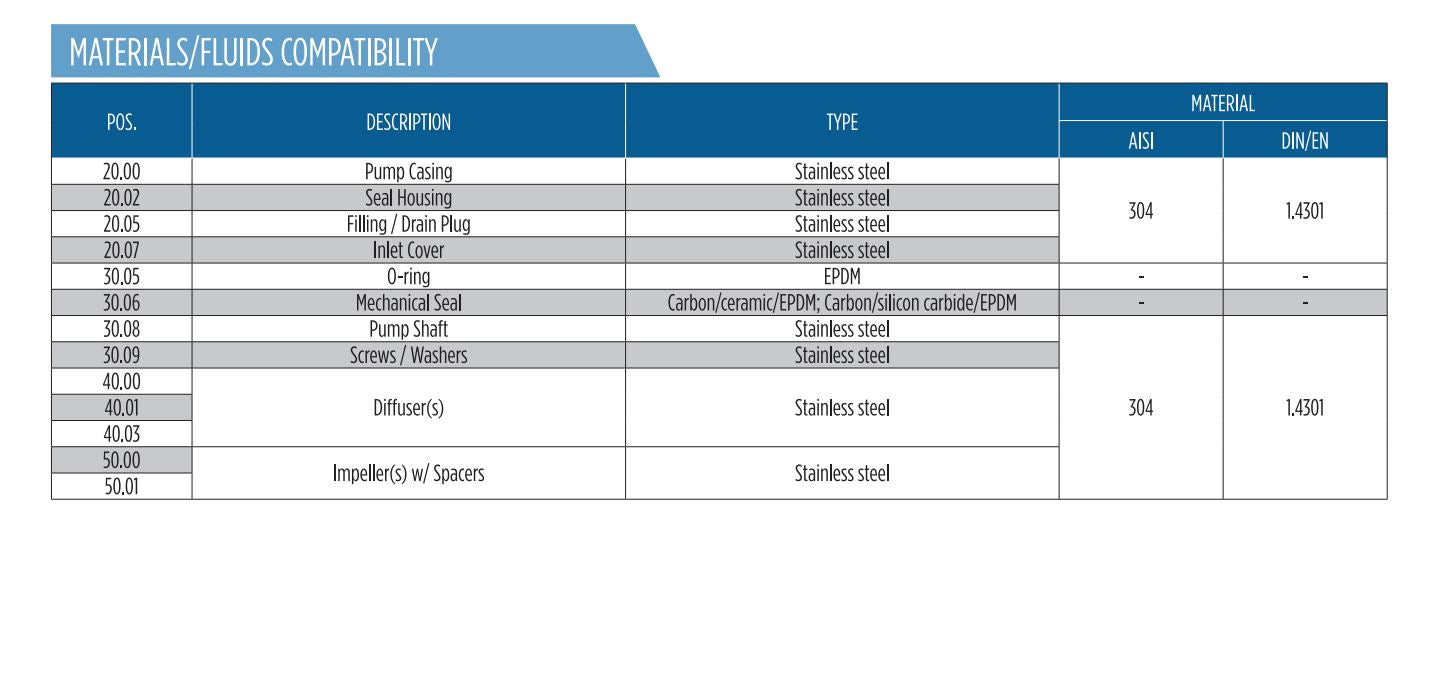

• 300 series stainless steel body, impellers and diffusers
• Easy maintenance with durable ball bearings
• Single-phase models supplied with AU/NZ plug
• Built-in thermal relay for motor protection
• Supplied with 1.5 Bar automatic controller for consistent pressure and dry-run protection

SPECIFICATIONS

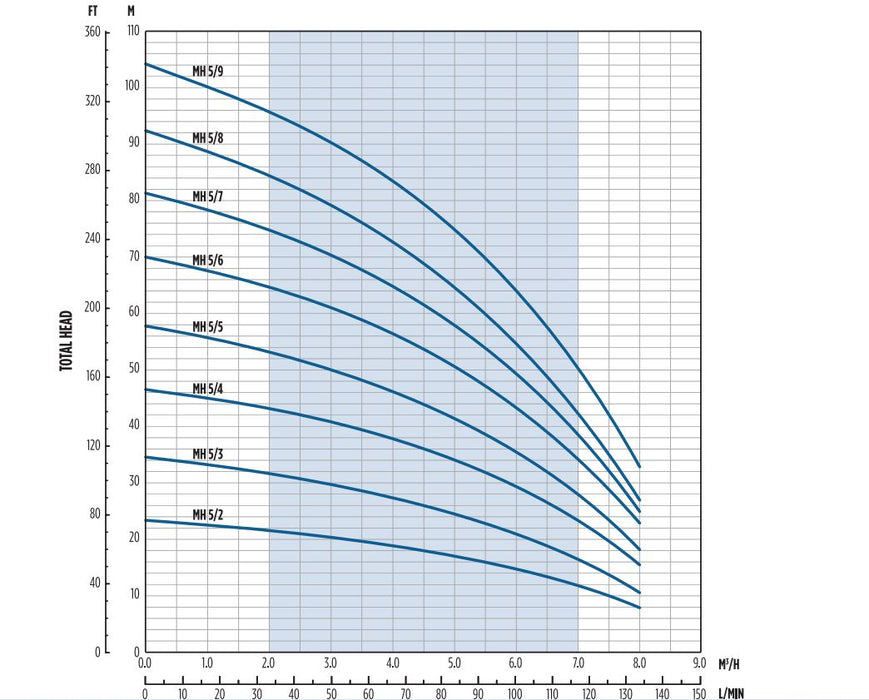

• Max Flow: 80 LPM
• Max Pressure: 540 kPa

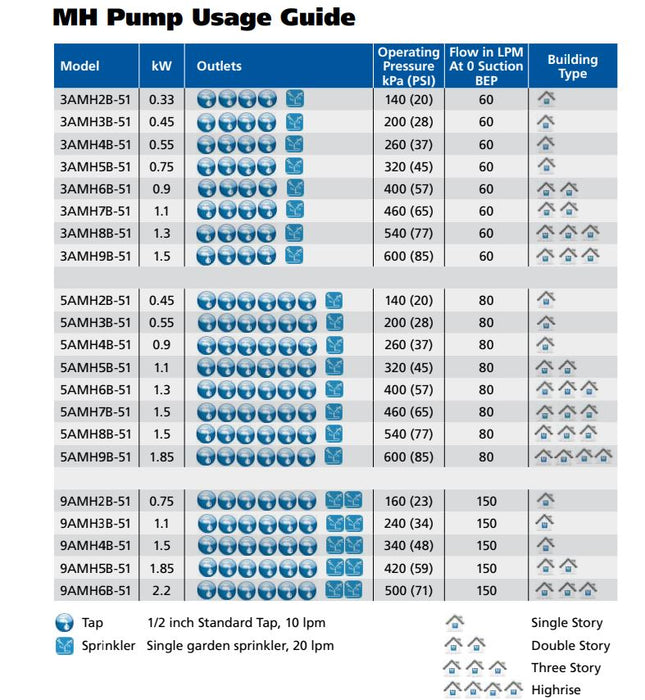

• Available Power Range: 0.45 – 1.85 kW (various models)
• Flow Range: up to 14 m³/h at 50 Hz (3, 5, and 9 m³/h models)
• Head Range: up to 10 bar

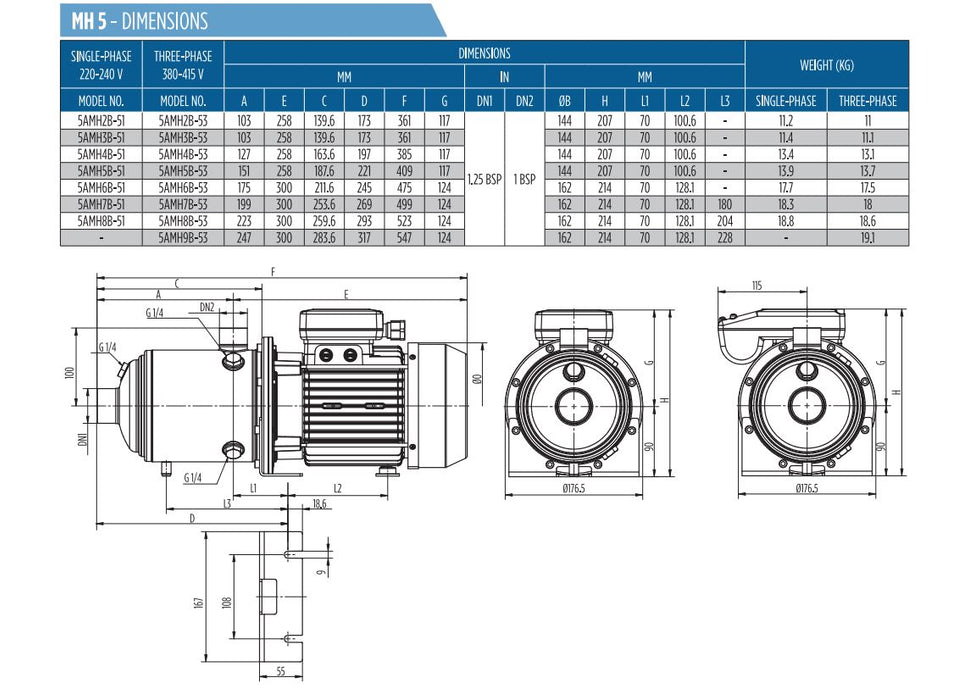

• Inlet: 1¼" BSP MH
• Inlet Check Valve Supplied
• Outlet: 1" BSP MH
• Max Working Pressure: 10 bar
• Max Ambient Temperature: 40°C
• Liquid Temperature Range: -15°C to 55°C (single-phase)
• Motor: Asynchronous, TEFC, Class F insulation, IP55 protection
• Electrical: Capacitor inside terminal box; single-phase with built-in thermal relay

INCLUDED

• Franklin Electric 5AMH Stainless Steel Multistage Pump
• Inlet Check Valve Supplied
• Pressure switch and pre-charged accumulator tank
• Pressure gauge and fittings (pre-assembled)
• Pre-wired AU/NZ plug (single-phase models)
• User Manual
