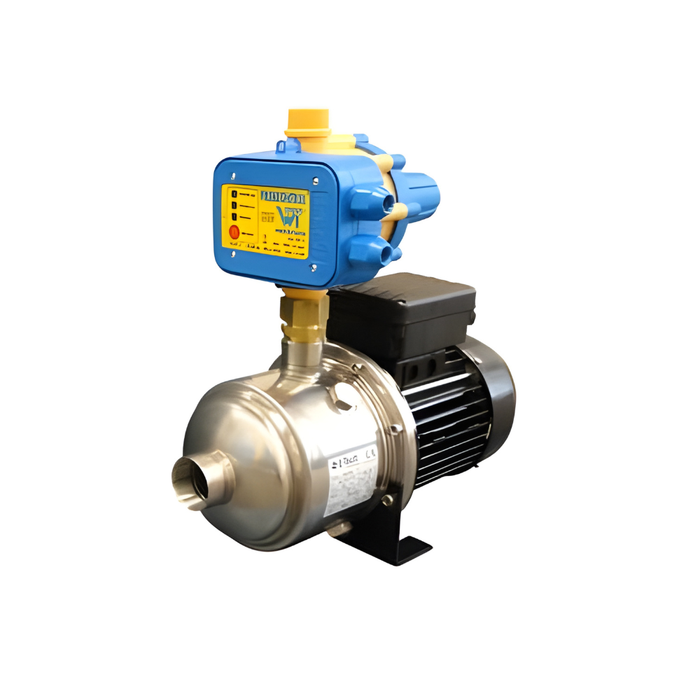

Franklin Electric 9AMH Series Horizontal Multistage Pressure Pump with 1.5 Bar Controller (Max 150LPM/340kPa)

The Franklin Electric 9AMH Series Horizontal Multistage Pressure Pump is engineered for high-capacity performance and dependable water pressure in demanding applications. Designed with a heavy-duty 300 series stainless steel body, impellers, and diffusers, this robust pump provides superior efficiency, corrosion resistance, and long service life even under continuous operation.

Ideal for large domestic systems, irrigation setups, washdown facilities and commercial installations, the 9AMH Series delivers reliable pressure boosting with smooth, quiet performance. Supplied with a 1.5 Bar controller, it ensures fully automatic pump management, including dry-run protection, restart functionality and consistent pressure regulation.

APPLICATIONS

• Large domestic and light commercial water systems
• Water distribution and pressure boosting
• Irrigation, sprinklers, and rainwater harvesting
• Industrial plants and washdown operations
• General high-flow water transfer

FEATURES

• Horizontal multistage stainless steel design for durability and strength
• High-performance hydraulics for improved efficiency
• Oversized motor shaft and bearings for extended pump life
• 300 series stainless steel construction resists corrosion and wear
• Quiet, smooth operation with minimal vibration
• Single-phase models supplied with AU/NZ plug
• Integrated thermal relay for motor protection
• Supplied with 1.5 Bar automatic controller for consistent operation and dry-run protection

SPECIFICATIONS

• Max Flow: 150 LPM
• Max Pressure: 340 kPa
• Flow Range: up to 14 m³/h at 50 Hz (3, 5, and 9 m³/h models)
• Head Range: up to 10 bar
• Inlet: 1.5" BSP MH
• Outlet: 1.25" BSP MH
• Max Working Pressure: 10 bar
• Max Ambient Temperature: 40°C
• Liquid Temperature Range:
  • Single-phase: -15°C to 55°C
  • Three-phase: -15°C to 110°C
• Motor: Asynchronous, TEFC, Class F insulation, IP55 protection
• Electrical: Capacitor inside terminal box; single-phase with thermal relay

INCLUDED

• Franklin Electric 9AMH Stainless Steel Multistage Pump
• 1.5 Bar Pump Controller with Dry-Run & Restart Protection
• Pre-wired AU/NZ Plug (Single-Phase)
• User Manual
