Gator W Series Cast Iron Flanged Basic Hydraulic Valves with Finger Filter PN16

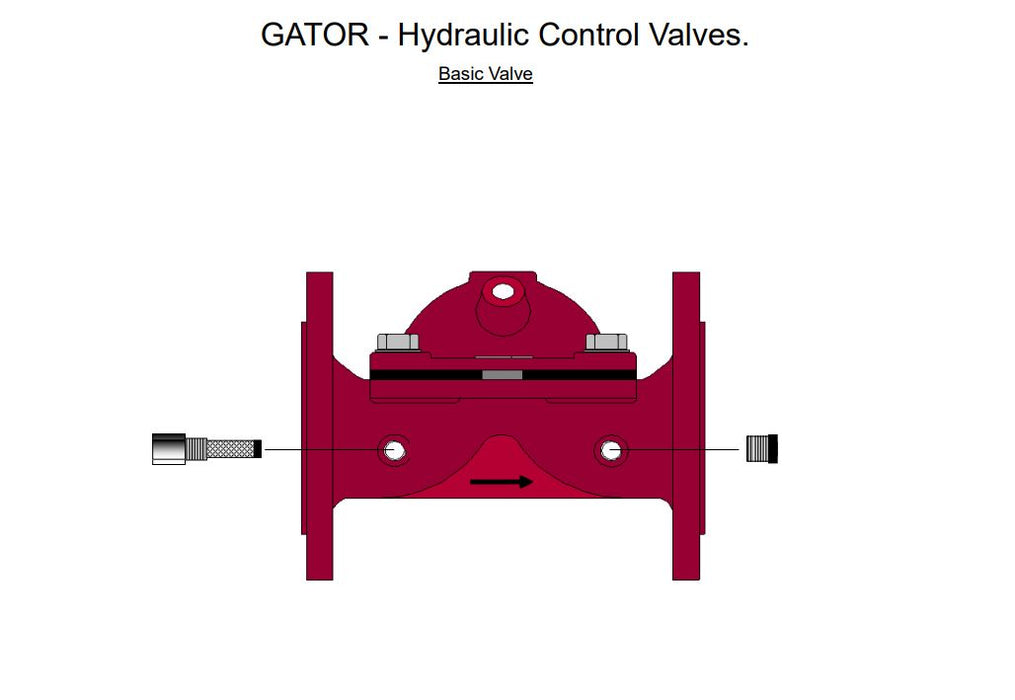

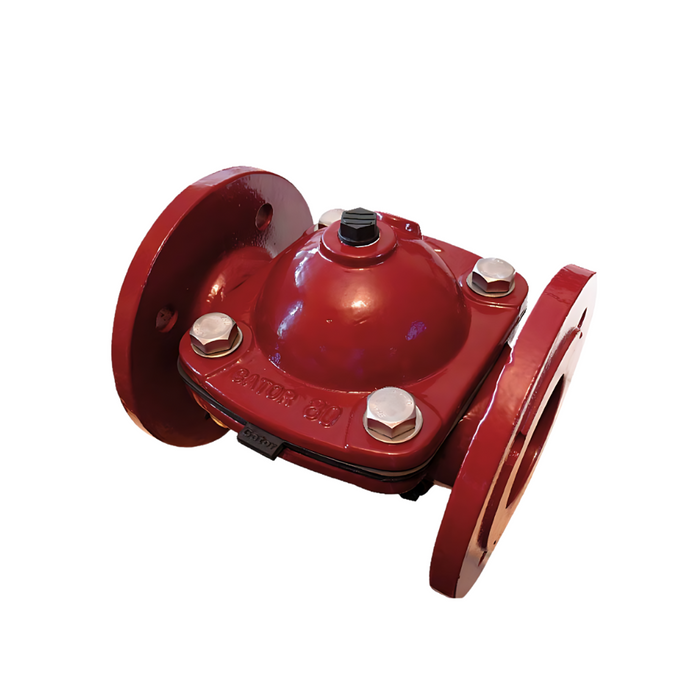

The Gator W Series Cast Iron Flanged Basic Hydraulic Valve with Finger Filter is a rugged, weir-type, single-chamber control valve designed for dependable pressure and flow regulation. Manufactured from heavy-duty cast iron and rated PN16 (1600kPa), it provides smooth hydraulic performance with minimal head loss and quiet operation.

Available in flanged Table D connections from 50mm to 150mm, this valve is supplied with a finger filter for added protection against debris. With a reinforced diaphragm as the only moving part, assisted by a stainless-steel spring, the valve ensures long-lasting reliability with minimal maintenance. Suitable for horizontal, vertical, or angle installations, the Gator W Series can be adapted with pilot, solenoid, or manual control kits for pressure reducing, sustaining, relief, or remote control functions. Ideal for use in irrigation, mining, wastewater, turf and general industrial systems.

FEATURES

• Weir-type, single-chamber valve for reliable pressure and flow control
• Includes finger filter to prevent blockage from debris

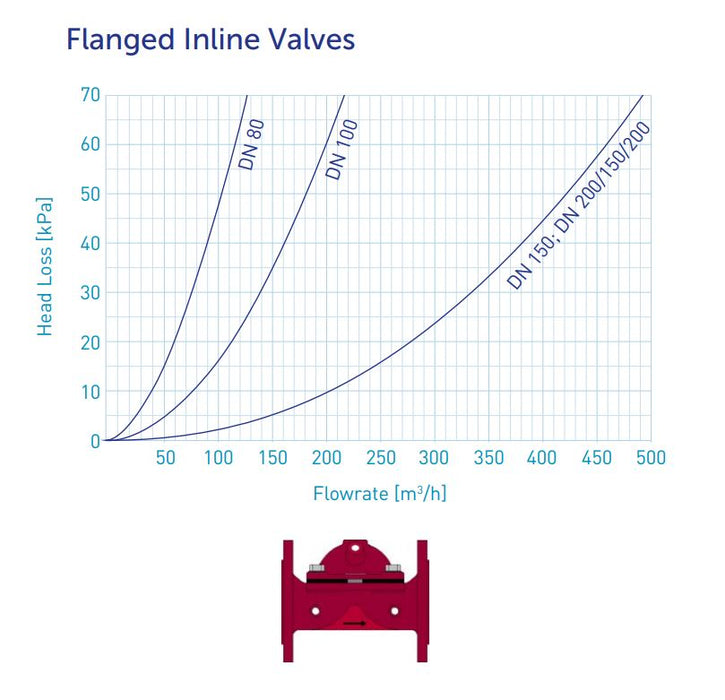

• Low opening pressure (70kPa) with minimal head loss
• Smooth, quiet hydraulic performance even under fluctuating flows
• Reinforced diaphragm is the only moving part, spring-assisted for closure
• Heavy-duty cast iron construction with epoxy coating for corrosion resistance
• Flanged Table D connections (50mm to 150mm) for secure installation
• Compatible with manual, solenoid and pilot-control kits
• Can be installed horizontally, vertically or at 90° angles
• Designed for irrigation, wastewater, mining, turf and industrial applications

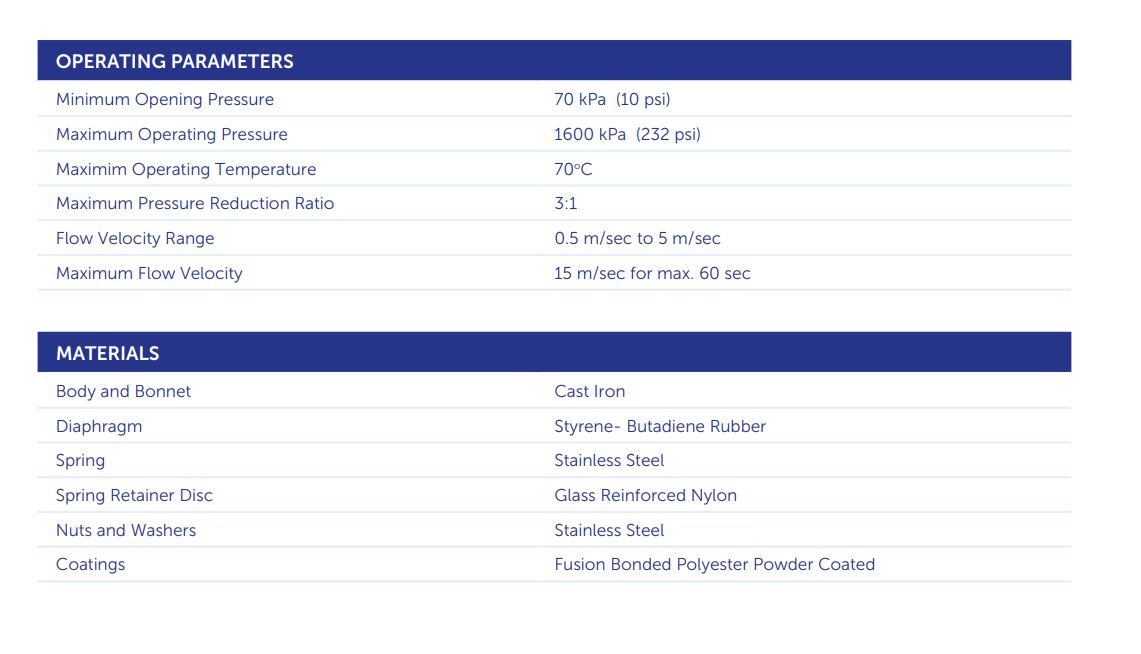

SPECIFICATIONS

• Sizes: DN50, DN65, DN80, DN100, DN150
• Connection type: Flanged Table D (other flange standards on request)
• Pressure rating: PN16 (max 1600kPa / 232psi)
• Minimum opening pressure: 70kPa
• Temperature rating: Up to 70°C
• Max pressure reduction ratio: 3:1
• Flow velocity range: 0.5–5 m/s (short term max 15 m/s for 60s)
• Body & bonnet: Cast iron
• Diaphragm: Reinforced rubber (SBR/NR)
• Spring: Stainless steel
• Spring retainer disc: Glass-reinforced nylon
• Nuts & washers: Stainless steel
• Coating: Fusion bonded polyester powder coated
