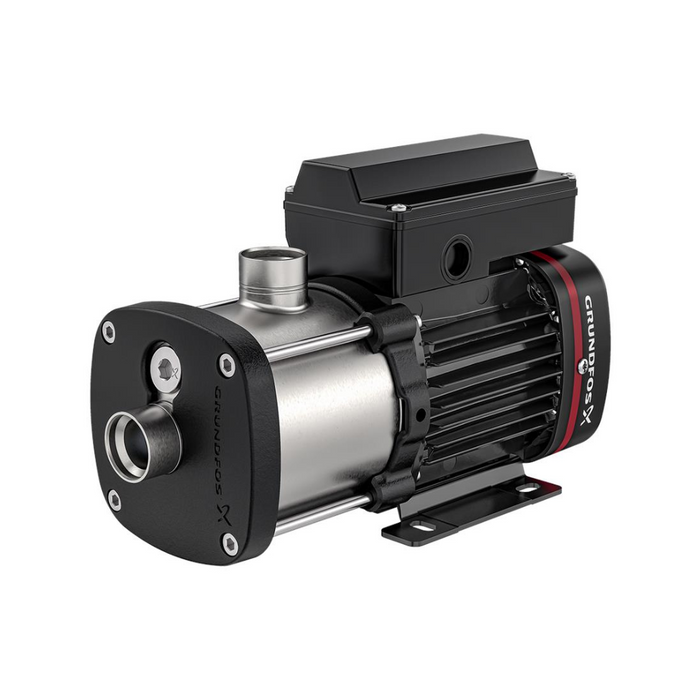

Grundfos CM-G Horizontal Multistage Cast Iron Pump - Single Phase Product Name: Grundfos CM-G 3-2 - 0.3 kW - Single Phase

Grundfos CM-G 240v Series Horizontal Multistage Cast Iron/316ss End Suction Pumps

by Grundfos
PN: 92889507
$1,102.96 - $1,793.34
$1,102.96
$1,102.96 - $1,793.34
$1,102.96

Grundfos CM-G Horizontal Multistage Cast Iron Pumps with 316ss Wetted Components - Three Phase

The Grundfos CM-G 240v Series is a premium range of horizontal multistage end suction pumps designed for applications requiring greater corrosion resistance and fluid compatibility. Constructed with a cast iron pump base and 316 stainless steel internal components, these pumps offer enhanced durability and performance in demanding environments, including mildly aggressive liquids or higher-grade hygienic processes.

These single-phase models are powered by an efficient 240v IP55-rated asynchronous motor and deliver quiet, reliable performance for water treatment systems, industrial liquid transfer, wash-down systems, and pressure boosting in commercial or light industrial settings. The modular design makes maintenance simple, while the axial suction and radial discharge configuration ensures flexible installation.

Built to handle operating temperatures from -30°C to +120°C and fitted with EPDM elastomers, the CM-G Series provides long-lasting performance with reduced service needs, even in more chemically challenging conditions.

FEATURES

  • Horizontal multistage pump with axial suction and radial discharge
  • Cast iron inlet/discharge with 316 stainless steel shaft, chambers, and impellers
  • 240v single-phase IP55-rated fan-cooled asynchronous motor
  • Modular design for easy servicing and configuration
  • High-grade material construction for enhanced corrosion resistance
  • Internal Whitworth pipe thread connections (Rp ISO 7/1)
  • Quiet operation with minimal maintenance requirements
  • EPDM elastomers for chemical and temperature compatibility
  • Operating temperature range from -30°C to +120°C
  • Ideal for process water, wash systems, pressure boosting, and light industrial applications

MODELS

Model Number Model Name
92889507 CM-G -Horizontal multi stage pump - 1 x 240 V 50 Hz - CM3-2 - 0.3 kW
92889508 CM-G -Horizontal multi stage pump - 1 x 240 V 50 Hz - CM3-3 - 0.5 kW
92889509 CM-G -Horizontal multi stage pump - 1 x 240 V 50 Hz - CM3-4 - 0.5 kW
92889510 CM-G -Horizontal multi stage pump - 1 x 240 V 50 Hz - CM3-5 - 0.5 kW
92889511 CM-G -Horizontal multi stage pump - 1 x 240 V 50 Hz - CM3-6 - 0.67 kW
92889621 CM-G -Horizontal multi stage pump - 1 x 240 V 50 Hz - CM5-2 - 0.5 kW
92889622 CM-G -Horizontal multi stage pump - 1 x 240 V 50 Hz - CM5-3 - 0.5 kW
92889623 CM-G -Horizontal multi stage pump - 1 x 240 V 50 Hz - CM5-4 - 0.67 kW
92889624 CM-G -Horizontal multi stage pump - 1 x 240 V 50 Hz - CM5-5 - 0.9 kW
92889708 CM-G -Horizontal multi stage pump - 1 x 240 V 50 Hz - CM10-1 - 0.67 kW
