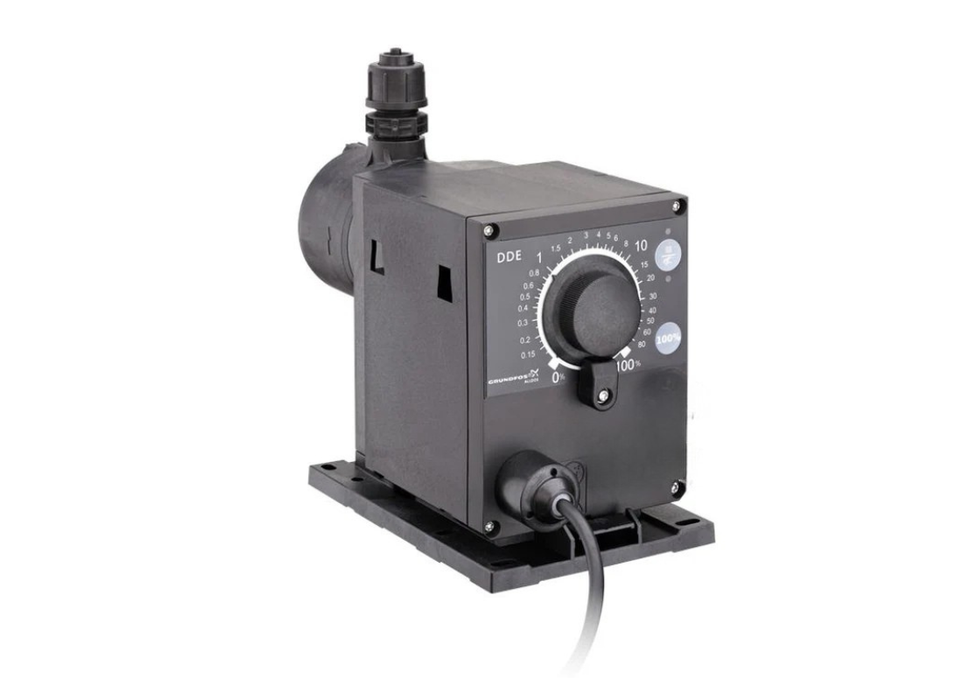

Grundfos DDE 6-10 B Speed Controlled Diaphragm Dosing Pump (Max 6LPH/1000kPa)

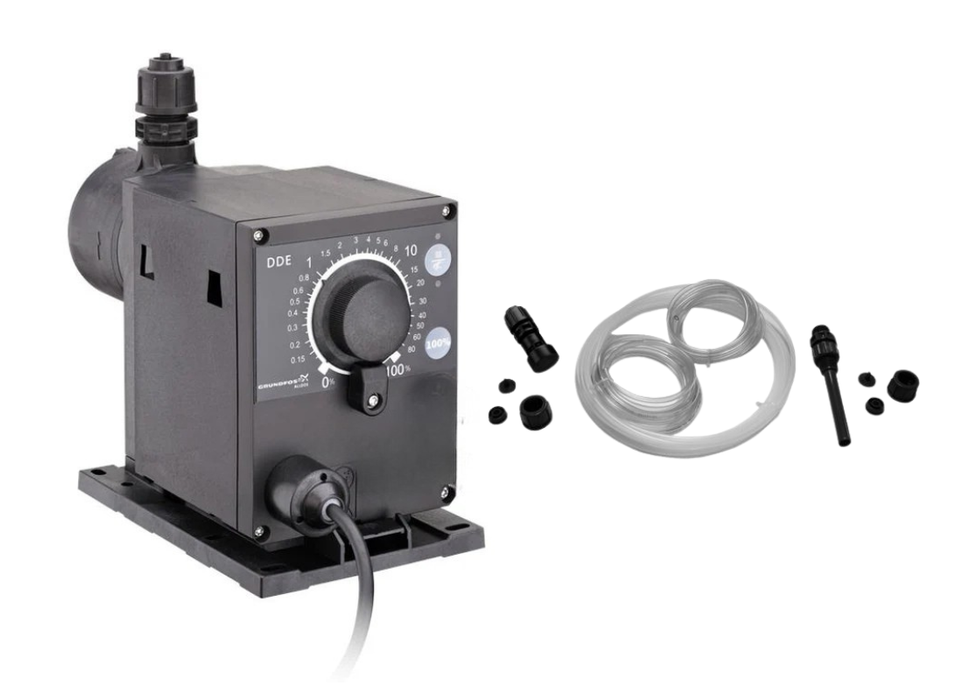

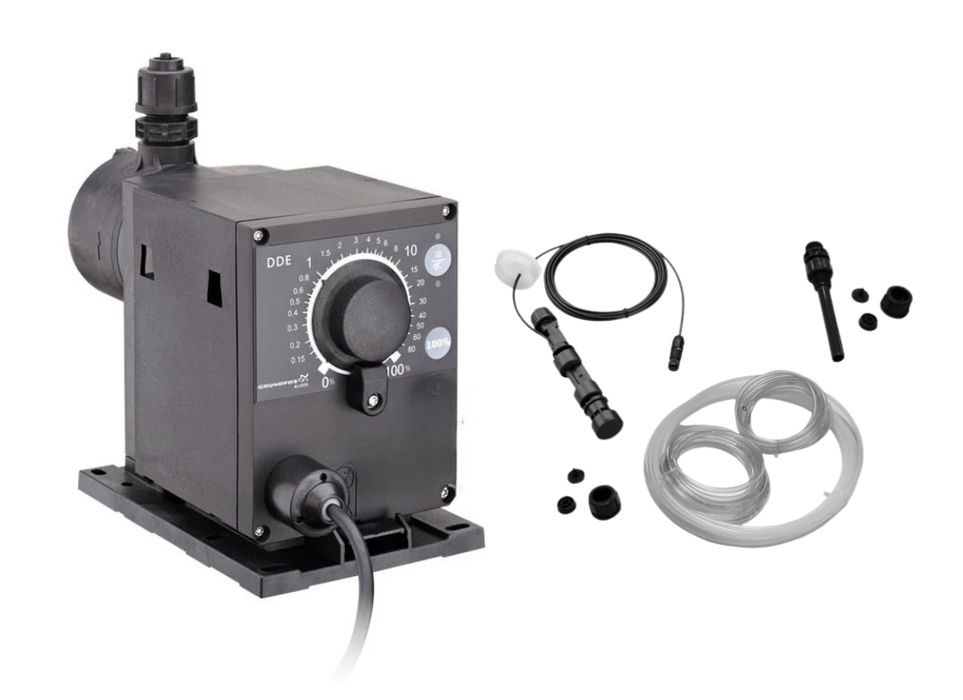

INSTALLATION KIT PURCHASED SEPARATELY - CLICK HERE

The Grundfos DDE 6-10 B Digital Diaphragm Dosing Pump is a compact, highly accurate dosing solution designed for reliable chemical injection in water treatment, irrigation, industrial process water, and general dosing applications. Part of the Grundfos SMART Digital Dosing range, the DDE series uses an internal stepper motor drive to deliver precise, repeatable dosing across a wide turndown range while maintaining consistent stroke length for maximum accuracy.

This model features manual speed control, allowing flow adjustment from 0.1–100% via a clear logarithmic control dial. With a maximum dosing capacity of 6 litres per hour at up to 10 bar, the DDE 6-10 B is ideal for low-to-medium flow dosing where simplicity, reliability, and efficiency are essential.

The PVC dosing head, ceramic valve balls, and PTFE seals provide excellent chemical resistance for common treatment chemicals, while the full-PTFE diaphragm ensures long service life and dependable operation. An integrated deaeration valve simplifies commissioning, and the pump’s ability to operate at full stroke length ensures stable priming and accurate dosing—even with degassing liquids.

Designed for real-world installations, the DDE 6-10 B includes a click-stop mounting plate for flexible installation, an IP65 enclosure for harsh environments, and a wide power supply range (100–240V) with an Australian plug fitted as standard. This makes it a practical, energy-efficient dosing pump solution for both OEM and retrofit applications.

APPLICATIONS

• Water treatment and disinfection dosing
• Irrigation system chemical and fertiliser injection
• pH correction and chemical conditioning
• Industrial process water dosing
• Cooling tower and boiler water treatment
• OEM dosing skids and packaged systems
• Municipal and commercial water treatment systems


FEATURES

• Digital diaphragm dosing pump with internal stepper motor drive
• Manual speed control with 0.1–100% adjustment range
• Full stroke length operation for high dosing accuracy
• Wide 1:1000 turndown ratio
• PVC dosing head suitable for common treatment chemicals
• Ceramic double ball valves for precise and repeatable dosing
• Full-PTFE diaphragm for long service life and chemical resistance
• Integrated deaeration valve for easy priming and commissioning
• Click-stop mounting plate for flexible installation orientation
• IP65 enclosure suitable for harsh operating environments
• Wide power supply range with Australian plug fitted

BENEFITS

• Highly accurate dosing even at very low flow rates
• Simple manual control without the need for external signals
• Excellent chemical resistance for common dosing applications
• Reliable priming and suction performance, including degassing liquids
• Energy-efficient operation with low power consumption
• Compact footprint ideal for skid-mounted or retrofit installations
• Trusted Grundfos build quality and international approvals

SPECIFICATIONS

• Maximum flow: 6 L/h
• Minimum flow: 6.0 ml/h
• Turn-down ratio: 1:1000
• Maximum operating pressure: 10 bar (1000 kPa)
• Maximum suction lift (operation): 6 m
• Maximum suction lift (priming): 2 m
• Liquid temperature range: 0 to 45 °C
• Ambient temperature range: 0 to 45 °C
• Dosing head material: PVC (Polyvinyl Chloride)
• Valve ball material: Ceramic (Al₂O₃)
• Gasket material: PTFE
• Maximum liquid viscosity: 50 mPas
• Accuracy of repeatability: ±5%

Connections

• Inlet / Outlet hose sizes: 4/6, 6/9, 6/12, 9/12 mm

Electrical

• Rated voltage: 1 × 100–240 V, 50/60 Hz
• Power input: 19 W
• Enclosure class: IP65 / Type 4X
• Cable length: 1.5 m
• Plug type: Australian
• Inrush current: 25 A at 230 V (2 ms)

Other

• Net weight: ~2.1 kg
• Approvals: CE, CSA-US, NSF61, RCM
• Country of origin: France
• Part number: 97721204
• GTIN: 5710622713442
