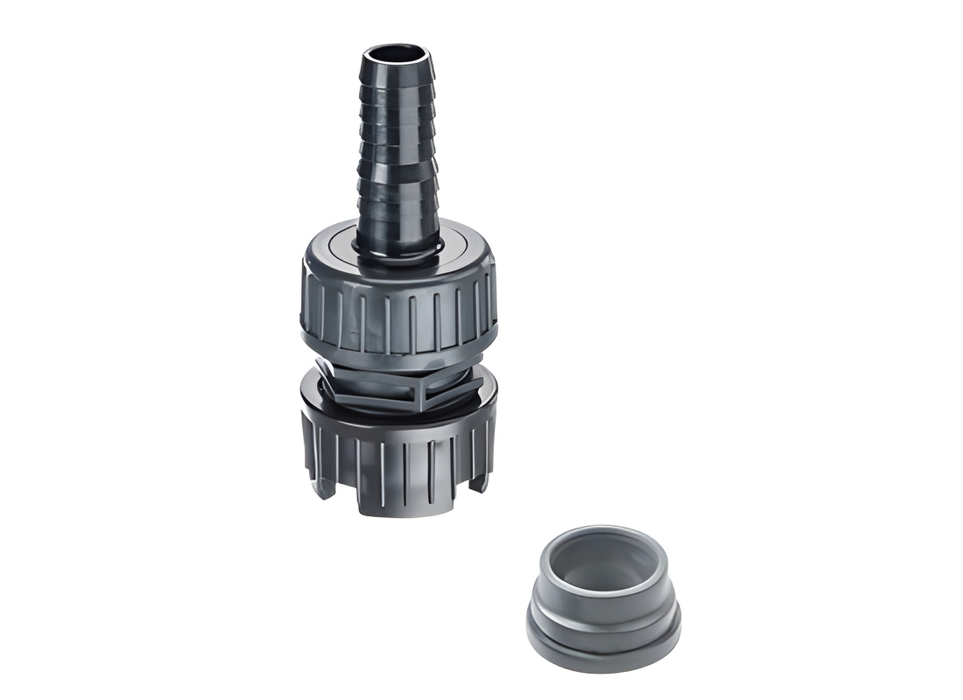

Grundfos Polyethylene Foot Valve for Dosing Pump Inlet Hose without Low Level (460LPH)

The Grundfos Polyethylene Foot Valve is designed for high-flow chemical dosing pump applications requiring dependable suction performance without level monitoring. Installed at the lower end of the inlet hose, this foot valve ensures stable priming, prevents backflow, and protects the dosing pump from suction loss during operation.

Rated for flow rates up to 460 L/h, the valve is constructed from durable polyethylene (PE), providing reliable chemical compatibility for a wide range of dosing applications. The integrated non-return valve maintains suction prime between dosing cycles, while the built-in weight and 0.8 mm strainer keep the valve positioned correctly at the base of the tank and prevent debris from entering the suction line.

This model is supplied without low-level or empty-tank indication, making it ideal for systems where external level control is already in place or not required.

FEATURES

• Suitable for dosing pumps up to 460 L/h
• Polyethylene (PE) construction for durability and chemical resistance
• Integrated non-return valve to maintain suction prime
• Built-in 0.8 mm strainer for pump protection
• Weighted design for stable positioning at the tank base
• No level indication, ideal for externally monitored systems
• Simple, low-maintenance design

SPECIFICATIONS

• Maximum flow rate: 460 L/h
• Level indication: Without
• Material (body): Polyethylene (PE)
• Valve ball: Ceramic (Al₂O₃)
• Gasket: PTFE composite
• Connection thread: G 5/4
• Compatible hose sizes: 19/20 mm, 25 mm
• Strainer mesh size: 0.8 mm
• Net weight: 0.15 kg

APPLICATIONS

• High-flow chemical dosing systems
• Water and wastewater treatment plants
• Industrial process dosing
• Cooling water and boiler chemical injection
• Agricultural and irrigation chemical dosing
• Dosing installations with external level monitoring
