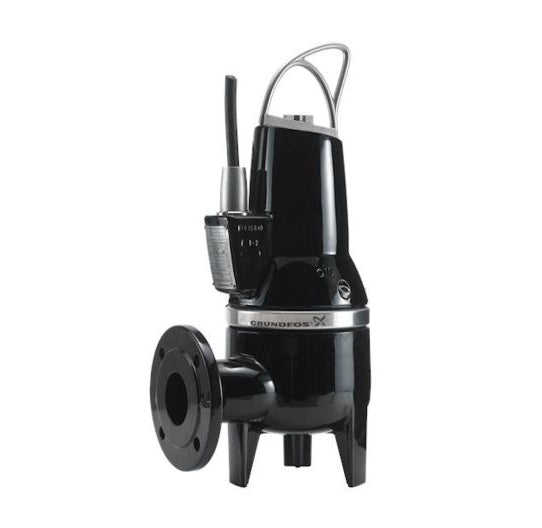

Grundfos SLV80.80 Submersible Wastewater Pumps with SuperVortex Impeller (Max 1440LPM)

The Grundfos SLV80.80 is a rugged submersible wastewater pump engineered for reliable, clog-resistant performance in demanding sewage and sludge-handling applications. Featuring a robust SuperVortex impeller, the SLV80.80 efficiently handles large solids and fibrous materials — making it a proven solution for municipal sewer networks, commercial lift stations, and industrial wastewater pits.

Efficient Solids Handling:
With a free solids passage of up to 80 mm, the SuperVortex impeller minimises clogging by allowing larger particles and fibrous waste to flow freely through the pump. A high flow capacity of up to 1440 LPM ensures efficient handling of large volumes of sewage or sludge.

Robust, Long-Life Build:
The pump housing and impeller are made from heavy-duty cast iron, providing excellent wear resistance and corrosion protection in harsh wastewater environments. The motor is built from EN-GJL-250 cast iron for extra durability. A robust SIC/SIC shaft seal ensures dependable sealing performance, with integrated moisture sensors for added protection against leakage and seal wear.

Flexible Installation:
The SLV80.80 is designed for submerged installation to depths of up to 20 m and is supplied with standard DIN flanges (DN 80 inlet and outlet, PN 10) for easy connection to existing piping. It can be mounted on an auto-coupling guide rail system or used free-standing in pits and tanks.

Safe & Reliable Operation:
Rated for continuous use in ambient temperatures from 0 °C to 40 °C, the pump handles wastewater at pressures up to 6 bar. Its IP68 enclosure class and insulation class H deliver excellent motor protection for safe, long-term submerged operation. A 10 m heavy-duty power cable is included.

Optional Controls:
The SLV80.80 includes built-in moisture sensors for condition monitoring. An external control box can be added for full system monitoring and protection.

FEATURES

• Impeller: SuperVortex, solids passage up to 80 mm
• Max Flow: Up to 1440 LPM
• Primary Shaft Seal: SIC/SIC mechanical seal
• Pump Housing & Impeller: Durable cast iron
• Motor Housing: EN-GJL-250 cast iron
• Connections: DN 80 DIN flanges, PN 10
• Max Installation Depth: 20 m submerged
• Max Operating Pressure: 6 bar
• Ambient Temp Range: 0–40 °C
• Enclosure Class: IP68
• Insulation Class: H
• Power Cable: 10 m mains cable
• Sensors: Integrated moisture sensors (no water-in-oil sensor)
• Control Box: Optional

APPLICATIONS

• Municipal sewage pumping stations
• Commercial or residential sewer networks
• Industrial wastewater pits and sludge tanks
• Effluent pumping with high solids load
• Floodwater and drainage where solids handling is critical
