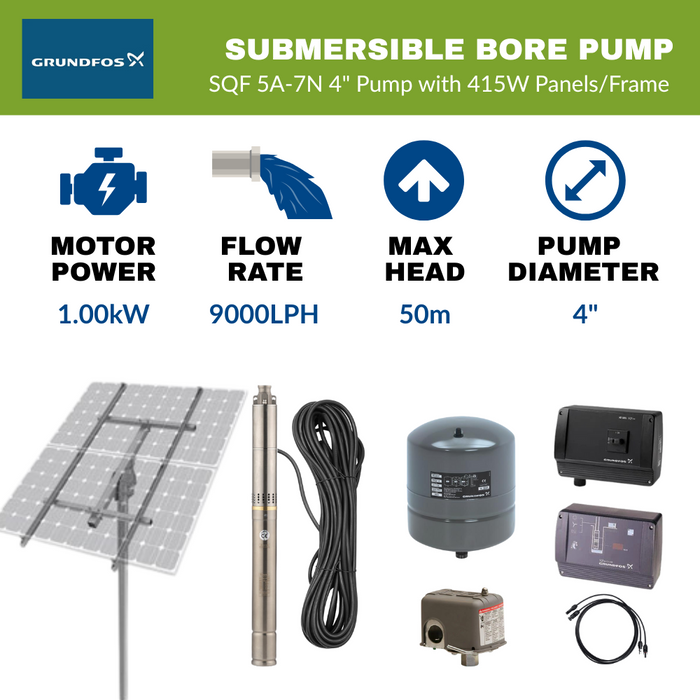

Grundfos SQF5A-7N 4" Submersible Solar Pump Kit Complete with Panels (150LPM/500kPa)

PRICE EXCLUDES FREIGHT - PLEASE CONTACT US FOR FREIGHT QUOTATION

The 4" SQF centrifugal pump is for low heads and large flow rates. The SQFlex system is a reliable water supply system based on renewable energy sources, such as solar and wind energy. Thanks to its flexible energy supply and performance, the SQFlex system can be combined and adapted to meet any need on the installation site.

The SQFlex system has a wide voltage range, built-in maximum power point tracking (MPPT) as well as dry-running, voltage and overload protection.

Packaged System Includes:

• 99612834 SQ Flex 5A-7N 4" pump with base mount anode
• Solar Panels - 370 Watts
• Array frame
• Mounting pole(s)
• Cable Guards
• Plug & Play Connections
• IO 101 (Isolators & Generator Interface)
• CU 200 (Status & arrows for pressure switch/float switch connection)
• Bore cap
• 5-Way tee
• Reverse acting pressure switch
• Pressure gauge
• 18 Litre pressure tank
• Earth Stake

Warranty

• 25 Year Solar Module
• 10 Year Solar array Frame
• 2 Year all other components
