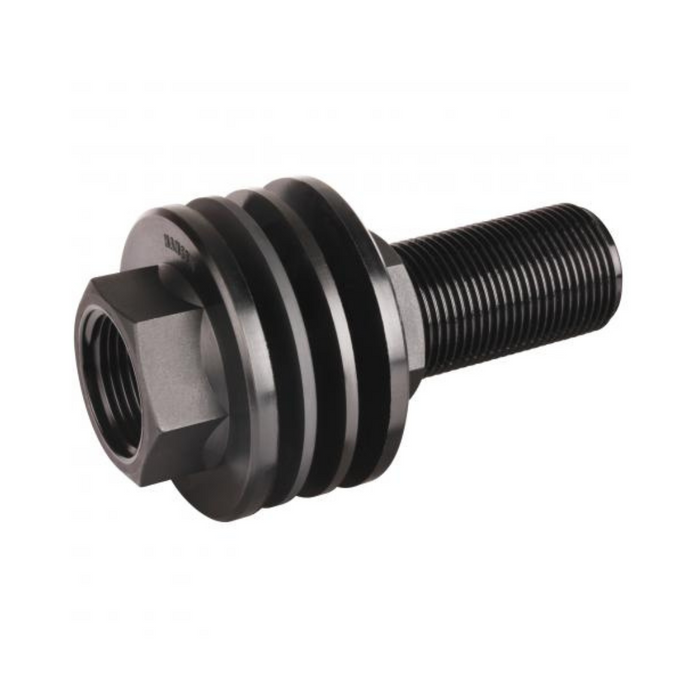

Hansen Poly Tank Fitting for BSP Threaded Tank Access

The Hansen Poly Tank Fitting is a high-performance solution for creating secure BSP threaded access points in water and fluid storage tanks. Designed and manufactured in New Zealand, this robust fitting is made from UV-stabilised, glass-fibre reinforced nylon for superior strength, chemical resistance, and long-lasting durability in harsh outdoor conditions.

Suitable for use with poly, plastic, and steel tanks, the Hansen tank fitting provides a reliable, leak-free seal through tank walls and is ideal for connecting pumps, valves, pipes, and other threaded accessories. The female BSP thread allows for quick and easy integration into a variety of plumbing and irrigation systems, making it a trusted choice for residential, commercial, agricultural, and industrial applications.

FEATURES

• Designed for use in tanks, troughs and a wide variety of marine applications.

• Manufactured from UV stabilised high quality glass fibre reinforced nylon, giving a weather, termite, fungi and bacterial resistance.

• An extensive range of fittings in sizes 15mm to 100mm (1/2" to 4").

• Precision heavy duty tapered threads give a strong reliable seal.

• Material is strong enough to minimise potential cross threading.

• Fittings provide flexibility and versatility for new and existing installations, saving on time and money.

• All materials are fully resistant to salt water, making them ideally suited to marine applications.

INSTALLATION

• Prior to installation, refer to Tank manufacturers recommendations before drilling outlet in tank wall.
• All pipe work must be adequately supported.
• Use a thread sealant on all threaded connections.

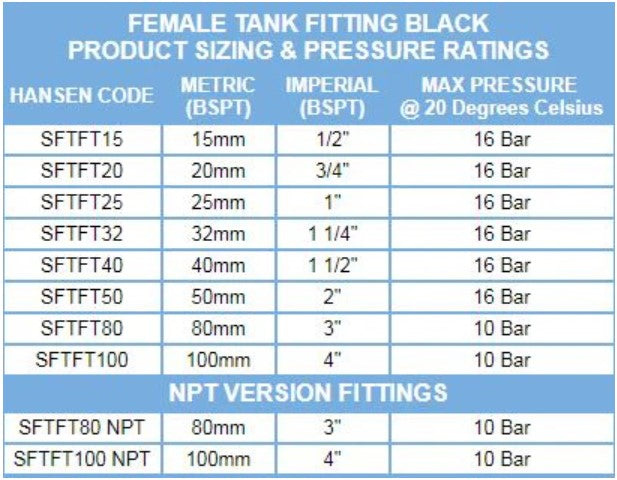

• Please refer below for Minimum Recommended Hole Sizes.
• Check the sealing surface to ensure it is free from debris and/or scratches which could cause leakage.
• To obtain proper washer compression for fitting installation ensure the face of the washers fully contacts the tank wall.
• Tighten the nut to ensure a water tight seal.
• Hansen Tank Fitting can be used in conjunction with metal fittings.

APPLICATIONS

• Tanks
• Troughs
• Boats
• Homes & Pools
• Camper Vans / Caravans
