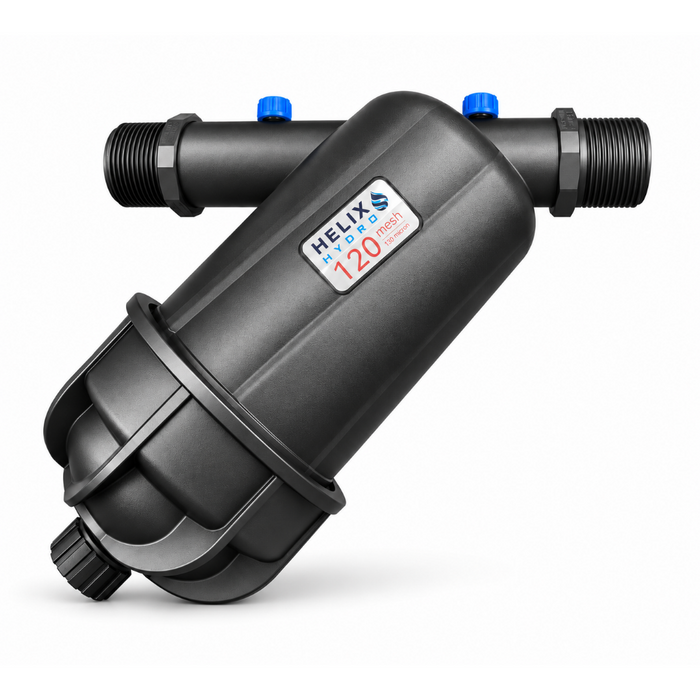

Helix Hydro TP Series Plastic BSP Y Screen Filters for Irrigation & Water Supply Systems
| DOWNLOAD PRODUCT BROCHURE |
The Helix Hydro TP Series provides screen filtration for household water systems, agricultural irrigation, landscaping and industrial applications. Six sizes from 20mm to 80mm allow selection to suit your pipework and nominal flow requirements.
Each filter combines a reinforced polypropylene housing with a 304 stainless steel screen. Its compact Y configuration and BSP connections simplify installation, while interchangeable screen grades provide a choice of filtration levels.

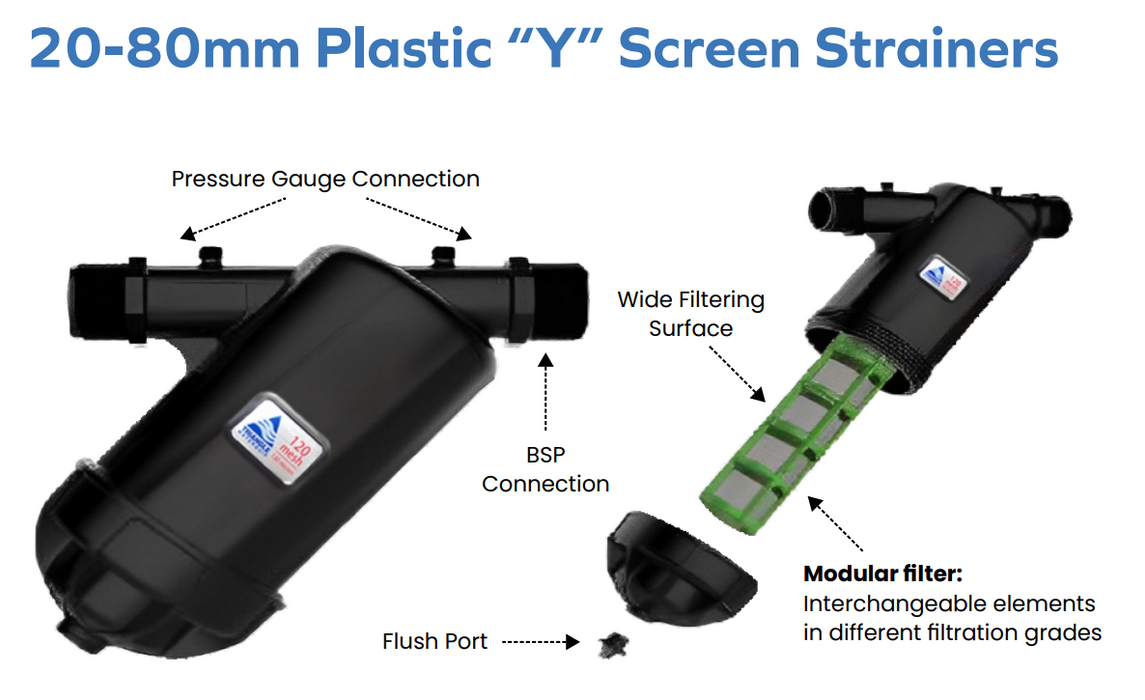

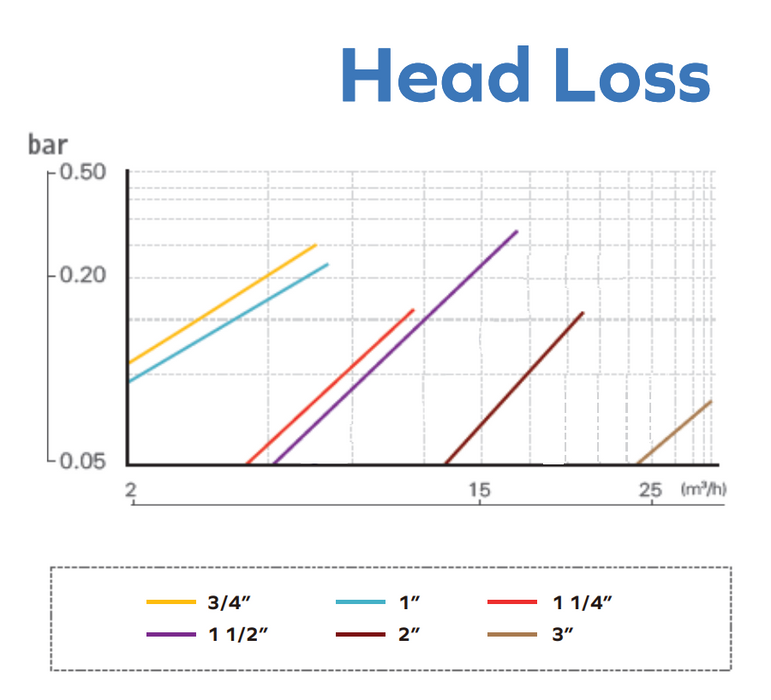

A screw-locking bowl provides access for manual cleaning. The filters also feature a flush port and two preset pressure-gauge connection points for checking pressure across the filter.
FEATURES
- Compact Y-pattern design.
- Reinforced polypropylene housing.
- Reusable stainless steel screen.
- BSP threaded connections.
- Screw-locking bowl for cleaning access.

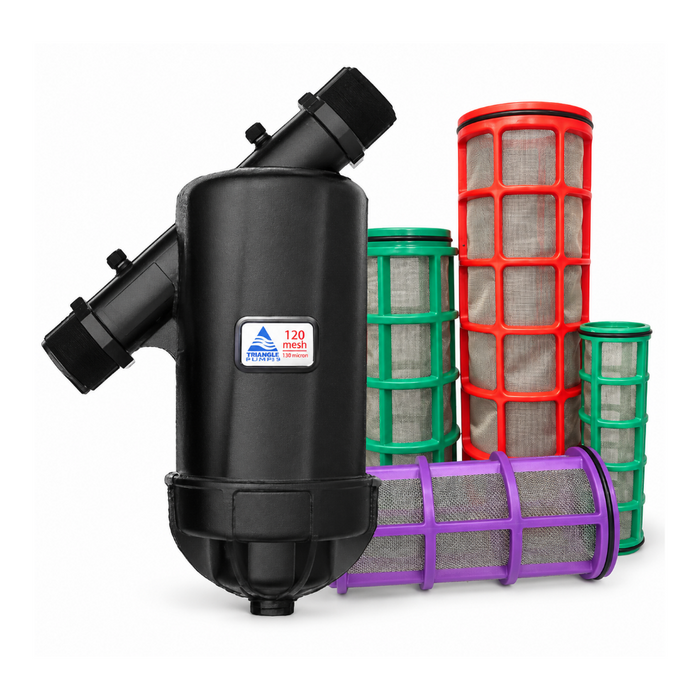

- Interchangeable screen grades.
- Flush port.
- Two pressure-gauge connection points.

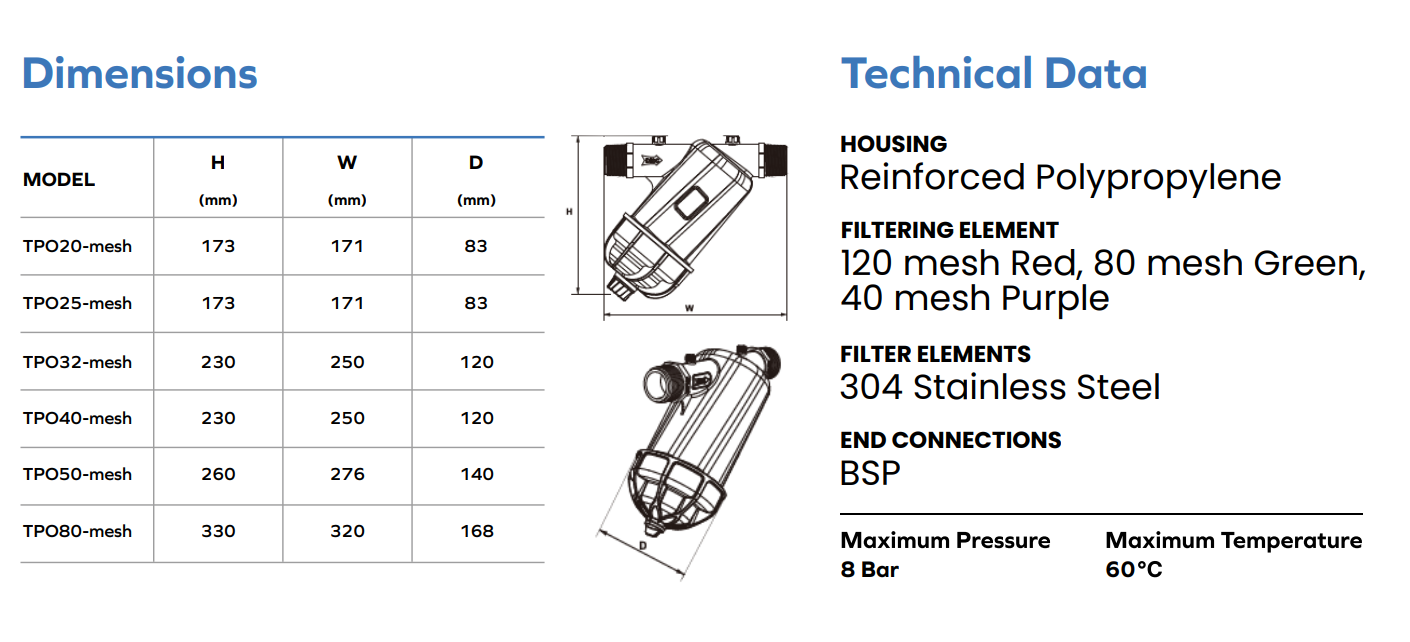

SPECIFICATIONS
| Specification | Details |
|---|---|
| Series | TP |
| Filter type | Manual Y screen filter |

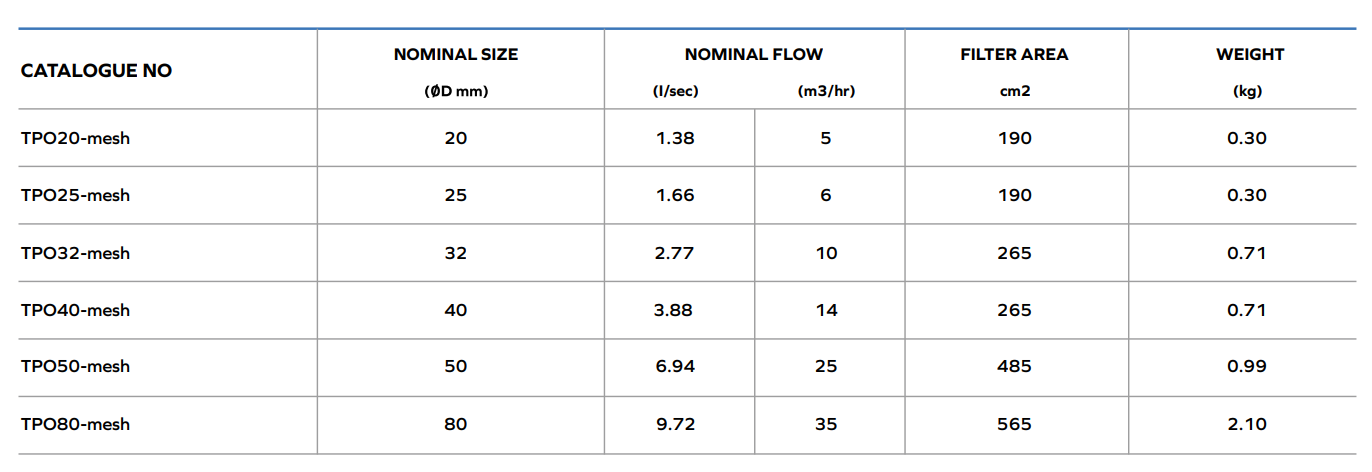

| Connection sizes | 20, 25, 32, 40, 50 and 80mm |
| Connection standard | BSP |
| Housing material | Reinforced polypropylene |
| Screen material | 304 stainless steel |
| Maximum pressure rating | 8 bar / 800kPa |
| Cleaning method | Manual screen removal and cleaning |
APPLICATIONS
- Household water filtration.
- Agricultural irrigation.
- Landscape irrigation.
- Industrial water filtration.
