Grundfos Dosing Pump Installation Kit for Large Dosing Pumps (SUIT DDE / DDA-XL, DME 375)

The Grundfos Standard Installation Kit with Low Level Probe is a complete dosing pump accessory pack designed for installations where tank level monitoring and pump protection are required. In addition to standard suction and discharge components, these kits include a low and empty tank level probe, allowing compatible dosing pumps to stop automatically when chemical levels fall too low.

These kits are intended for use with signal-controlled Grundfos dosing pumps such as PR, AR, and FCM variants, where level inputs are available. By preventing dry running and air ingress, the low level probe helps protect the pump, improve dosing reliability, and reduce unplanned downtime.

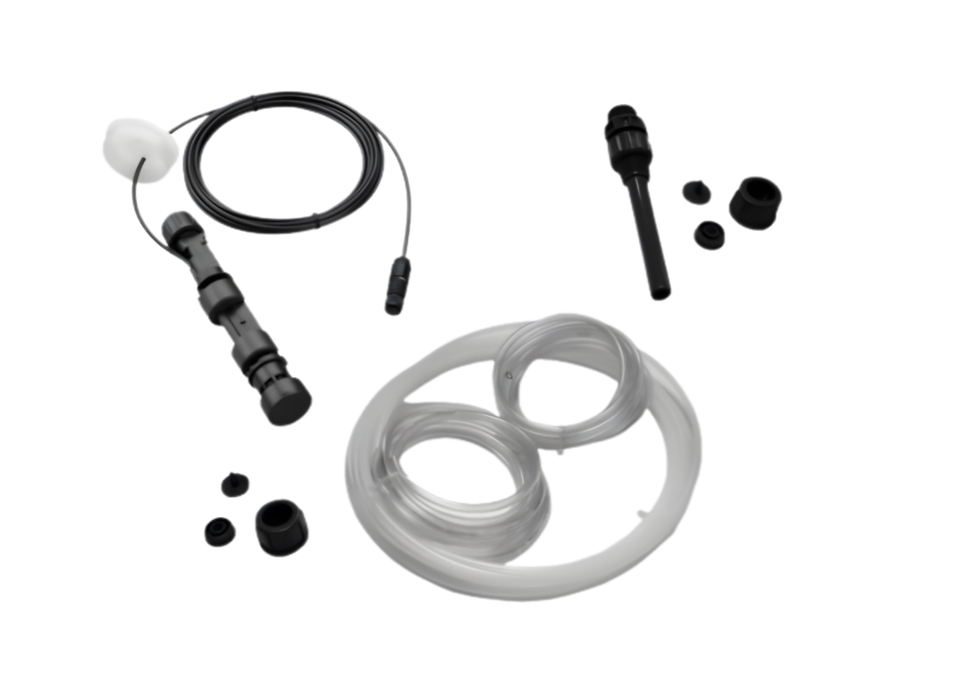

Each kit provides a cost-effective, standardised solution and includes a foot valve with integrated level probe, injection valve, 6 metres of opaque PE discharge tubing, and 2 metres of PVC suction and bleed tubing. Multiple variants are available to suit different pump capacities, tubing sizes, pressure ratings, and material compatibility, allowing the correct kit to be selected for each application.

These installation kits are suitable for a wide range of Grundfos DDA, DDC, DDE, and DME dosing pumps, with PVC or PVDF material options to suit common and aggressive chemicals.

INCLUDES

• Foot valve with low and empty tank level probe
• Injection valve
• 6 m opaque PE discharge tubing
• 2 m PVC suction and bleed tubing


NOTES

• Designed for dosing pumps with level input capability
• Recommended for PR, AR, and FCM pump variants
• Material selection refers to injection valve body, O-rings, and valve balls
• Select PVC or PVDF based on chemical compatibility
• Choose tubing size and pressure rating to match pump capacity
