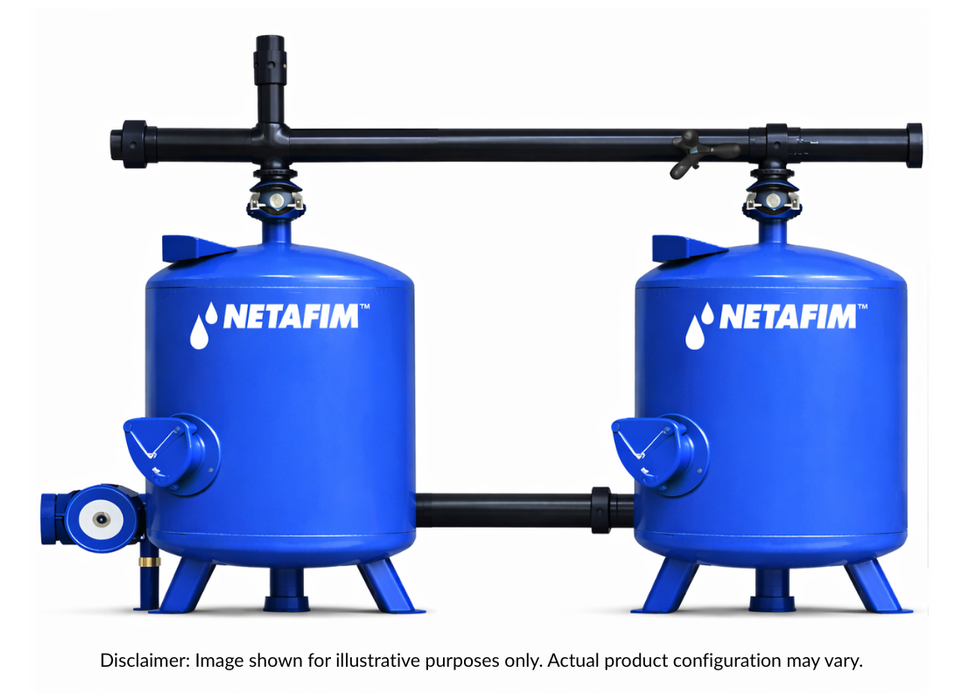

Netafim SandStorm 2 Tank Manifold Fully Automatic Gravel Media Filter System with Media – AC Controlled

The Netafim SandStorm 2 Tank Manifold Fully Automatic Gravel Media Filter System with Media – AC Controlled is a double-chamber metal media filtration system designed for primary filtration in irrigation systems using poor-quality surface water. Built from high-quality carbon steel ST-37.2, the SandStorm system provides robust depth filtration, exceptional durability, and reliable automatic back-flushing performance for multi-season irrigation applications.

The double-tank manifold configuration allows continuous filtration, ensuring irrigation flow is maintained even during back-flush cycles. With industry-leading UV and corrosion protection provided by a special two-layer coating, the SandStorm system delivers long-term reliability in harsh outdoor environments. Its modular design enables future system expansion, while large access ports simplify media replacement and routine maintenance. The system is supplied with gravel media, ensuring it is ready for installation and operation.

Media filters are highly recommended when irrigating with poor quality water or in the following conditions:

• As the primary filtration for surface water in single/multi-season driplines
• When water contains Iron and/or Manganese
• For SDI applications wish harsh water sources

Unsure which Sand Storm filter suites your requirements? - Click here to open the Netafim filter configurator

FEATURES

• Double-chamber metal media filter system constructed from carbon steel ST-37.2
• Fully automatic operation with AC-controlled back-flush system
• Supplied with gravel media (Basalt No. 1 as standard)
• Industry-leading UV and corrosion protection with special two-layer coating
• Depth filtration process for superior removal of organic matter, silt, sand and clay
• Modular manifold design allows easy system expansion as irrigation demand increases
• Large and multiple access ports for easy media replacement and maintenance
• Mounted rings for mobile system installations
• Designed for reliable operation in harsh environmental conditions


POWER TYPE

• Controller type: AC controlled automatic back-flush system
• Solenoids: AC solenoids
• Operation: Fully automatic filtration and back-flushing cycles
• Minimum back-flush pressure: 2 bar (30 psi), depending on model
• Maximum operating pressure: Up to 8–10 bar (115–145 psi), depending on selected configuration

GENERAL SPECIFICATIONS

• System Configuration:
  • Double-chamber (2-tank) manifold system
  • Straight-line, centre-feed or parallel configurations available WITH MORE TANKS
• Available Tank Sizes & Flow Ranges (per system):
  • 12" x 2: 6–9 m³/hr
  • 16" x 2: 12–16 m³/hr
  • 20" x 2: 18–26 m³/hr
  • 24" x 2: 28–40 m³/hr
  • 30" x 2 40-58 m3/hr
  • 36" x 2 56-82 m3/hr
• Construction:
  • Tank material: Carbon steel ST-37.2
  • Coating: Two-layer UV and corrosion-resistant protection
  • Media type: Gravel / Basalt No. 1
• Performance:
  • Designed for depth filtration and uniform irrigation performance
  • Automatic back-flush ensures consistent filtration efficiency
  • Maximum recommended flow rates based on good water quality and 70 m/h filtration velocity

SYSTEM SPECIFICATIONS

• Flow rates are for average water quality when using crushed basalt #1 or crushed granite #11
• For poor water quality use lower flow rates.
• Minimum media size: 0.6mm
• Minimum backwash pressure: 20m
• Systems include Media (Note 1/2 fill water tank with water before adding media to reduce risk of damaging mushrooms)
• The filtration systems are supplied in kit form as follows:

  • Systems with Manifolds 50mm, 80mm, 100mm & 150mm are supplied with Arkal Straight Disc Filter
  • Hydraulic tube, Backflush Valves, Poly Propylene (PP) Manifold, Controller and Solenoids, Air Valve, Pressure gauge mounted on 3-way Sagiv Valve are all pre-assembled
  • W Configurations are supplied with Stainless Steel Manifolds. Galvanised and Polypropylene Manifolds are available upon request
  • Media tanks
  • Media
  • Check filter
  • Please note: Flow Control Valve on backwash manifold is not included. Dealer needs to provide Flow Control Valve
  • Installation should be done by the dealer/contractor onsite and connected to the water supply system

APPLICATIONS

• Primary filtration for irrigation systems using surface water from rivers, streams and canals containing organic matter
• Irrigation systems operating with poor surface water quality over multiple seasons
• Systems using driplines, sprinklers or micro-sprinklers
• Irrigation water containing iron (when fitted with special media)
