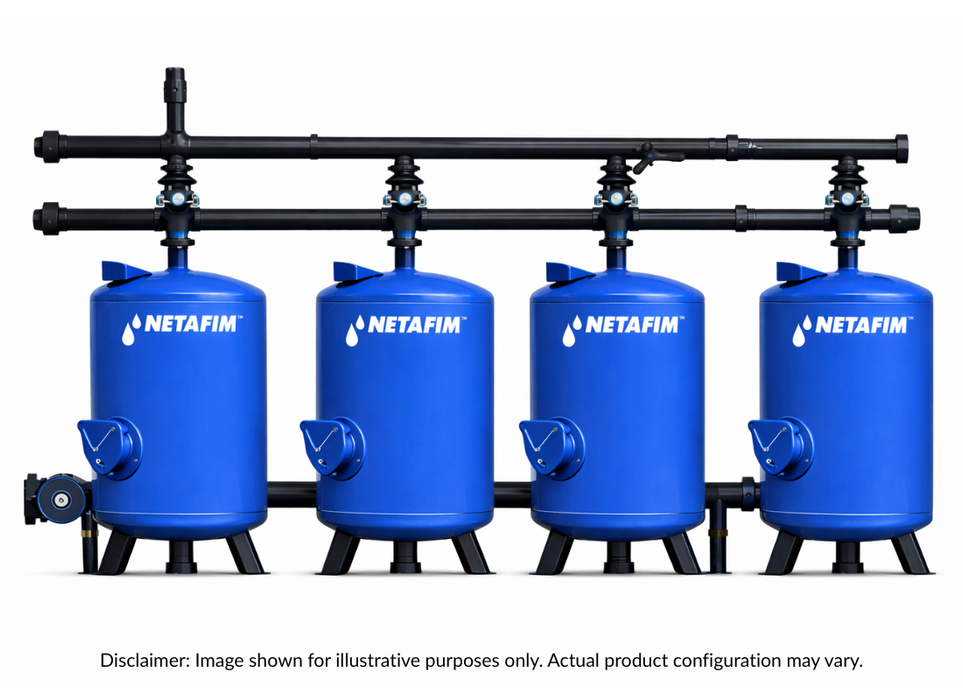

Netafim SandStorm 4 Tank Manifold Fully Automatic Gravel Media Filter System with Media – DC Controlled

The Netafim SandStorm 4 Tank Manifold Fully Automatic Gravel Media Filter System with Media – DC Controlled is a high-capacity metal media filtration solution designed for primary filtration in large-scale irrigation systems using poor-quality surface water. Manufactured from robust carbon steel ST-37.2, the SandStorm system delivers reliable depth filtration, long service life, and consistent performance in demanding agricultural environments.

The four-tank manifold (quad system) configuration provides increased filtration area and higher flow capacity, allowing continuous irrigation while individual tanks perform automatic back-flush cycles. A special two-layer UV and corrosion-resistant coating ensures long-term durability in harsh outdoor conditions. The modular manifold design allows the system to be expanded as irrigation demands grow, while large access ports simplify gravel media replacement and routine maintenance. Supplied complete with gravel media, the system is ready for installation and operation.

Media filters are highly recommended when irrigating with poor quality water or in the following conditions:

• As the primary filtration for surface water in single/multi-season driplines
• When water contains Iron and/or Manganese
• For SDI applications wish harsh water sources

Unsure which Sand Storm filter suites your requirements? - Click here to open the Netafim filter configurator

FEATURES

• Four-tank (quad) metal media filtration system
• Constructed from high-quality carbon steel ST-37.2
• Fully automatic filtration with DC-controlled back-flush operation
• Supplied with gravel media (Basalt No. 1 as standard)
• Industry-leading UV and corrosion protection via special two-layer coating
• Depth filtration for effective removal of organic matter, silt, sand and clay
• Modular manifold design allows future system expansion
• Large and multiple access ports for easy media replacement and maintenance
• Mounted rings for mobile system installations
• Designed for continuous operation in harsh irrigation environments
• Industry-leading Netafim warranty

POWER TYPE

• Controller type: DC controller for fully automatic filtration and back-flush cycles
• Solenoids: DC solenoids
• Operation: Fully automatic back-flushing for consistent filtration performance
• Minimum back-flush pressure: 2 bar (30 psi), depending on configuration
• Maximum operating pressure: Up to 8–10 bar (115–145 psi), depending on system setup
• Suitable for installations where DC power supply is required

GENERAL SPECIFICATIONS

• System Configuration:
  • Four-tank (4-unit) double-chamber manifold system
  • Straight-line, centre-feed or parallel manifold configurations available
• Available Variants:
  • Netafim 24" x 4 Media Filter Quad System DC Controlled (56-80 m3/hr)

  • Netafim 30" x 4 Media Filter Quad System DC Controlled (80-116 m3/hr)

  • Netafim 36" x 4 Media Filter Quad System DC Controlled (112-164 m3/hr)
• Construction:
  • Tank material: Carbon steel ST-37.2
  • Protective coating: Two-layer UV and corrosion-resistant finish
  • Media type: Gravel / Basalt No. 1
• Performance:
  • Designed for high-flow depth filtration and uniform irrigation performance
  • Automatic DC-controlled back-flush maintains filtration efficiency under continuous operation
  • Maximum recommended flow rates based on good water quality and a filtration velocity of 70 m/h

SYSTEM SPECIFICATIONS

• Flow rates are for average water quality when using crushed basalt #1 or crushed granite #11
• For poor water quality use lower flow rates.
• Minimum media size: 0.6mm
• Minimum backwash pressure: 20m
• Systems include Media (Note 1/2 fill water tank with water before adding media to reduce risk of damaging mushrooms)
• The filtration systems are supplied in kit form as follows:

  • Systems with Manifolds 50mm, 80mm, 100mm & 150mm are supplied with Arkal Straight Disc Filter
  • Hydraulic tube, Backflush Valves, Poly Propylene (PP) Manifold, Controller and Solenoids, Air Valve, Pressure gauge mounted on 3-way Sagiv Valve are all pre-assembled
  • W Configurations are supplied with Stainless Steel Manifolds. Galvanised and Polypropylene Manifolds are available upon request
  • Media tanks
  • Media
  • Check filter
  • Please note: Flow Control Valve on backwash manifold is not included. Dealer needs to provide Flow Control Valve
  • Installation should be done by the dealer/contractor onsite and connected to the water supply system

APPLICATIONS

• Primary filtration for irrigation systems using surface water from rivers, streams and canals
• Large-scale irrigation systems operating with poor surface water quality
• Systems utilising driplines, sprinklers or micro-sprinklers
• Irrigation water containing iron (with appropriate special media)
