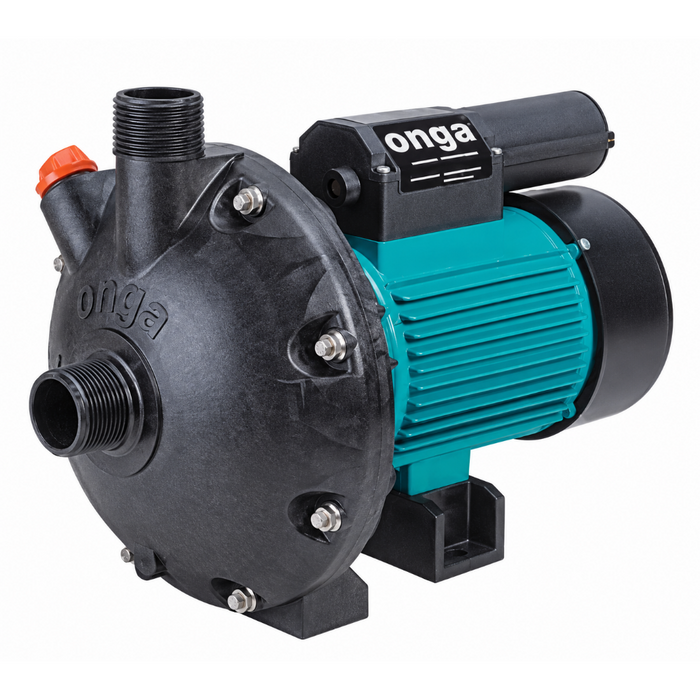

Onga 143 Composite Centrifugal Water Transfer Pump for Irrigation & Tank Filling Systems

The Onga 143 is a composite centrifugal pump designed for irrigation, tank filling and clean water transfer. Part of the Onga 14 Series, model 314300 provides a practical pumping solution for domestic, agricultural and horticultural water systems.

Its corrosion-resistant, glass-filled Noryl casing is paired with a glass-filled polycarbonate Hi-Flo impeller for efficient water movement. Delivering flows up to approximately 455 L/min and a maximum head of 41 metres, the Onga 143 suits a variety of watering and distribution requirements.

A close-coupled, totally enclosed fan-cooled motor incorporates thermal overload protection against overheating. Single-phase operation and 40 mm threaded connections allow integration into suitable reticulation, water transfer and pressure boosting installations.

FEATURES

• Corrosion-resistant composite pump casing.
• Engineered Hi-Flo impeller for efficient pumping.
• Glass-filled polycarbonate impeller construction.
• Close-coupled, totally enclosed fan-cooled (TEFC) motor.
• Inbuilt thermal overload protection.
• Single-phase electric operation.
• Threaded inlet and outlet connections.
• Suitable for clean water applications.

APPLICATIONS

• Tank filling.
• Irrigation and reticulation.
• Garden watering.
• General clean water transfer.
• Water circulation.
• Washdown systems.
• Pressure boosting.
• Agricultural and horticultural watering.

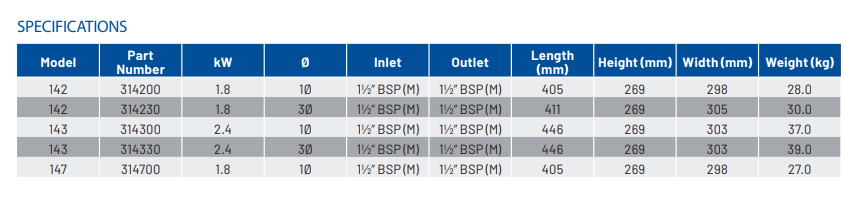

SPECIFICATIONS

• Product code: 314300.
• Pump type: Single-stage centrifugal.
• Supply: 230–240 V, single phase, 50 Hz.
• Motor input power (P1): 2.4 kW.
• Motor output power (P2): 1.7 kW.
• Maximum flow: Approximately 455 L/min.
• Maximum head: 41 m.
• Inlet: 40 mm / 1½-inch BSP male.
• Outlet: 40 mm / 1½-inch BSP male.
• Casing: 20% glass-filled Noryl.
• Impeller: 20% glass-filled polycarbonate.
• Mechanical seal faces: Carbon and ceramic.
• Liquid temperature: +1°C to +70°C.
• Maximum ambient temperature: +55°C.
• Dimensions: 446 mm long × 303 mm wide × 269 mm high.
• Weight: 37 kg.
• Pumped liquid: Clean water.
• Maximum flow and maximum head occur at different operating points.
