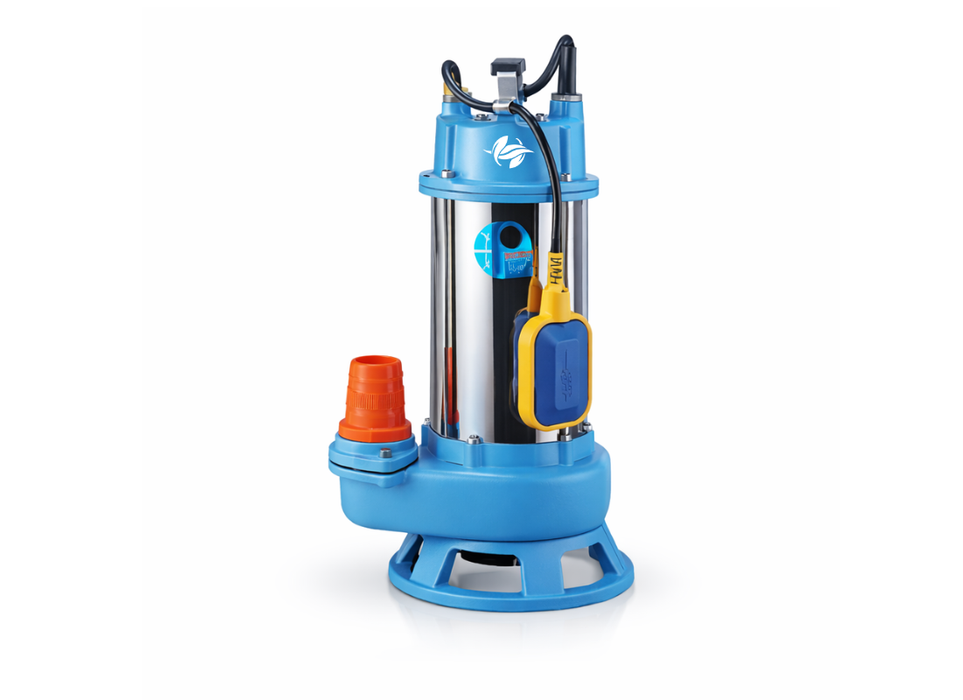

Pumpmaster SSA-0512N Submersible Non Clog Sewage Pump with Float (Max 200LPM/100kPa)

The Pumpmaster SSA-0512N Submersible Sewage Cutter & Shredder Pump with Float is a compact, automatic wastewater pump designed for residential sewage applications where reliable solids handling and unattended operation are required. Engineered as part of Pumpmaster’s sewage pump range, the SSA-0512N provides dependable performance for septic tanks, sewage pits, and small collection sumps.

This model incorporates a light-duty shredder / cutting impeller design intended to manage soft sewage solids and light fibrous material commonly found in domestic wastewater systems. By breaking down solids before discharge, the SSA-0512N helps reduce the risk of blockages in small-diameter pipework, making it well suited to residential installations.

Automatic operation is provided via an integrated float switch, allowing the pump to start and stop based on liquid level without manual intervention. The pump features a stainless steel motor casing for corrosion resistance and long service life, along with a double mechanical seal and shaft seal to protect the motor in demanding sewage environments. Built-in motor protection further enhances reliability and operational safety.

FEATURES

• Residential submersible sewage cutter & shredder pump
• Light-duty shredder / cutting impeller for soft sewage solids
• Automatic operation with integrated float switch
• Stainless steel motor casing for corrosion resistance
• Double mechanical seal plus shaft seal for motor protection
• Built-in motor protection
• Compact, lightweight design
• Quiet and reliable operation
• Suitable for residential sewage systems


APPLICATIONS

• Residential houses
• Septic tanks
• Small sewage pits and sumps
• Domestic wastewater transfer
• Light residential drainage applications

SPECIFICATIONS

• Model: SSA-0512N
• Power: 0.40 kW
• Voltage: 240V (Single Phase)
• Maximum Flow: 200 LPM
• Maximum Head: 10 m (≈100 kPa)
• Discharge Size: 50 mm
• Operation: Automatic (float switch)
