The Puretec FilterWall F4 is a premium freestanding 3-stage whole house filtration system designed to provide cleaner, better-quality water throughout the home while also helping protect plumbing fixtures and appliances against scale build-up. Combining sediment filtration, carbon filtration and Puretec scale-prevention technology in a sleek freestanding enclosure, the FilterWall F4 provides a practical solution where a conventional wall-mounted filtration system may not be suitable.

Designed for connection to the home's mains water supply, the FilterWall F4 delivers a rated flow of 30 litres per minute and incorporates three 10" x 4.5" MaxiPlus™ cartridges. The filtration configuration consists of a 5 micron polyspun sediment cartridge, 10micron carbon block cartridge, and SCALEPROTECT-MP1 scale prevention cartridge, helping reduce sediment, improve water taste and odour, and minimise scale formation throughout the plumbing system.

This configuration also includes a plumbed bypass, providing a convenient means of isolating or bypassing the filtration system when required for servicing or cartridge replacement. Its freestanding cabinet keeps the filtration components neatly enclosed while remaining accessible for maintenance, making it particularly suitable for modern homes where appearance and ease of servicing are important.

FEATURES

• Freestanding 3-stage whole house filtration system
• Designed for whole-of-home mains water filtration
• Maximum rated flow of 30LPM
• ScaleGuard / scale prevention filtration stage to help reduce scale build-up
• Helps reduce sediment and particulate matter from incoming water
• Carbon block filtration helps reduce chlorine taste and odours
• Helps provide cleaner, better-tasting water throughout the home

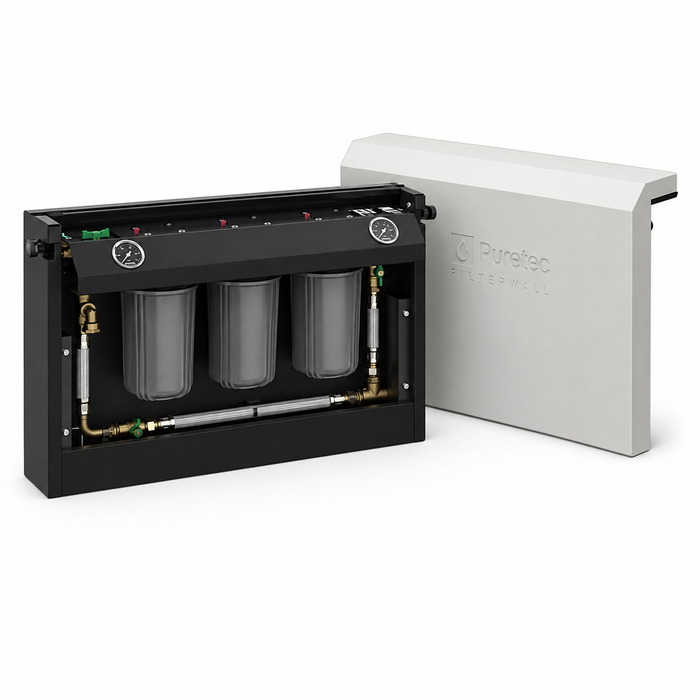

• Plumbed bypass for convenient isolation during servicing and maintenance
• Uses high-capacity 10" x 4.5" MaxiPlus™ cartridges
• Sleek enclosed freestanding design
• Four cabinet colour options
• ¾" BSP inlet and outlet connections
• Suitable for operating pressures from 200–875kPa

FILTRATION STAGES

• Stage 1 – PX05MP1 MaxiPlus™ 5 Micron Polyspun Sediment Cartridg eCaptures sediment and suspended particles from the incoming water supply, helping protect the downstream carbon and scale-prevention stages.
• Stage 2 – CB10MP1 MaxiPlus™ 10 Micron Carbon Block Cartridge
• Provides carbon filtration to improve the aesthetic quality of household water, including reducing unwanted chlorine taste and odours.
• Stage 3 – SCALEPROTECT-MP1 MaxiPlus™ Scale Prevention Cartridge
• Provides scale-prevention treatment to help minimise scale formation throughout the home's plumbing system and connected appliances. Puretec specifies these three cartridges as the FilterWall F4 maintenance configuration.

SPECIFICATIONS

• System Type: Freestanding 3-stage whole house filtration system
• Rated Flow: 30LPM
• Operating Temperature: 0–52°C
• Operating Pressure: 200–875kPa
• Inlet Connection: ¾" BSP
• Outlet Connection: ¾" BSP
• Cartridge Size: 10" x 4.5"
• Nominal System Micron Rating: 5 micron
• Filtration Stages: Sediment + Carbon Block + Scale Prevention
• Width: Approx. 916mm
• Depth: Approx. 227mm
• Height: Approx. 580mm
• WaterMark Certification: AS 3497 – Licence No. WM 74617

Puretec notes that where line pressure exceeds 500kPa, an approved pressure-limiting device must be installed in accordance with Australian and New Zealand plumbing standards.

COLOUR VARIANTS

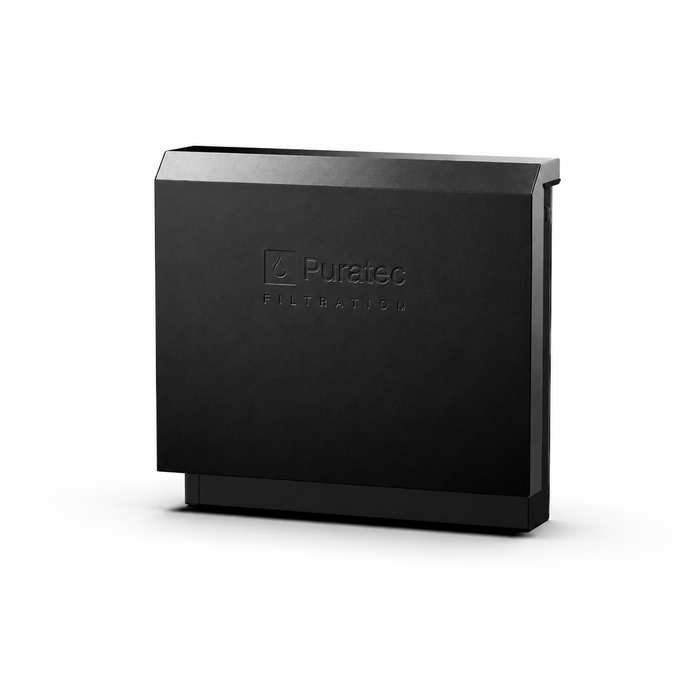

• FILTERWALL-F4-MB-LF – Midnight Black

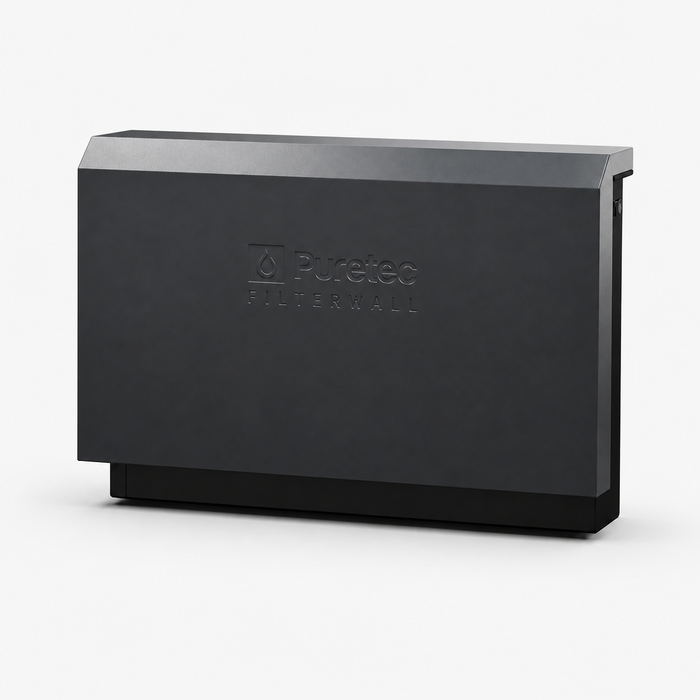

• FILTERWALL-F4-CC-LF – Charcoal

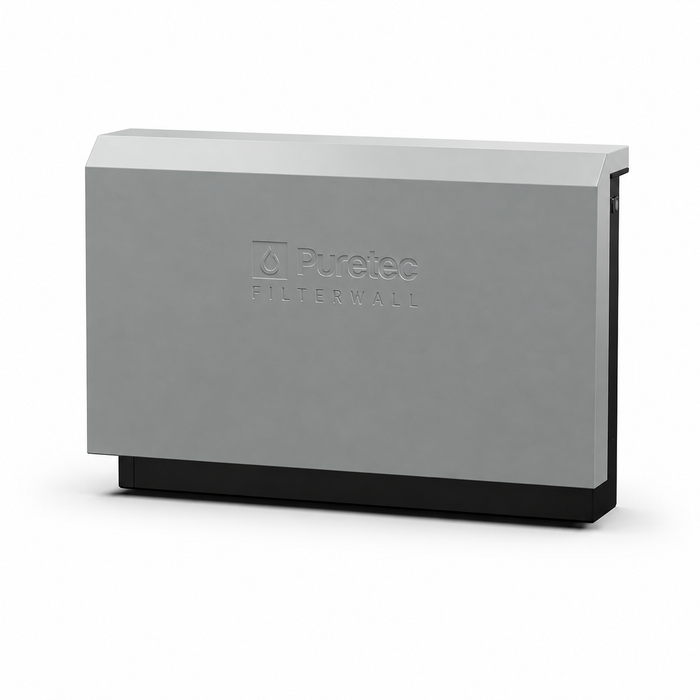

• FILTERWALL-F4-MG-LF – Mineral Grey

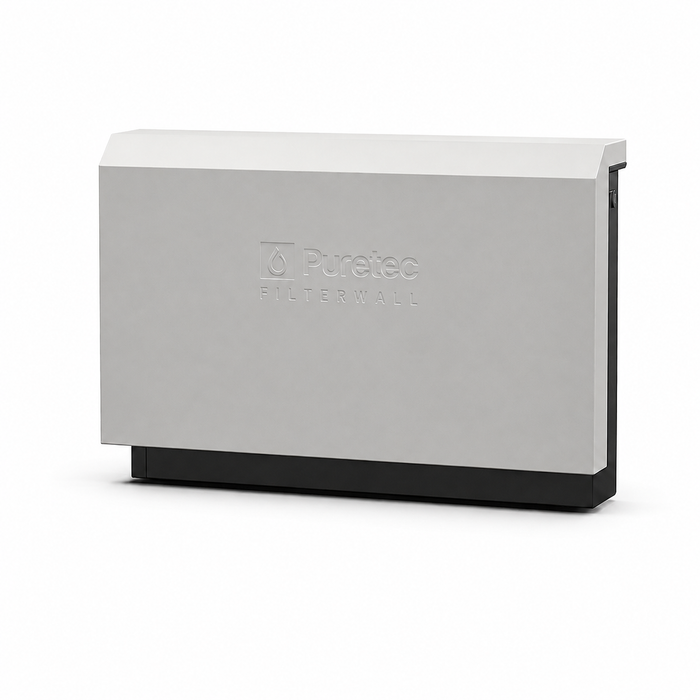

• FILTERWALL-F4-SW-LF – Stone White

APPLICATIONS

• Whole house mains water filtration
• Residential homes
• Reducing sediment throughout household plumbing
• Improving chlorine taste and odour
• Helping protect fixtures and appliances from scale build-up
• Properties requiring a neat freestanding filtration installation
• Homes where wall mounting is impractical or undesirable

REPLACEMENT CARTRIDGE KIT

The recommended Puretec FilterWall F4 Maintenance Kit – FR-F4 includes:

• 1×PX05MP1 – 5 Micron Polyspun Sediment Cartridge
• 1×CB10MP1 – 10 Micron Carbon Block Cartridge
• 1×SCALEPROTECT-MP1 – Scale Prevention Cartridge
