Puretec Hybrid P6 All In One 3 Stage Filtration System with UV, 0.90kW Pump & Cabinet

The Puretec Hybrid P6 is a premium all-in-one whole house water filtration system designed to deliver pressurised, safe and great-tasting water throughout your home. Combining a 0.90kW multistage pressure pump, triple-stage filtration and advanced UV sterilisation, this system provides complete protection against sediment, chemicals, and harmful bacteria—all housed in a sleek, weatherproof cabinet.

Engineered specifically for rainwater applications, the Hybrid P6 is a plug-and-play solution that simplifies installation while ensuring reliable performance. The integrated Radfire™ UV technology delivers chemical-free disinfection, effectively eliminating 99.9% of bacteria including E. coli, Giardia and Cryptosporidium, making it ideal for households relying on tank water or alternative water sources.

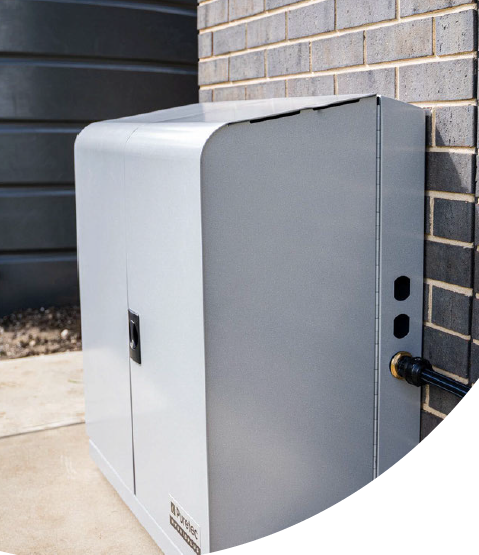

With its fully enclosed, lockable cabinet, the system is built for outdoor installation and protects internal components from weather, pests, and tampering—while also significantly reducing pump noise.

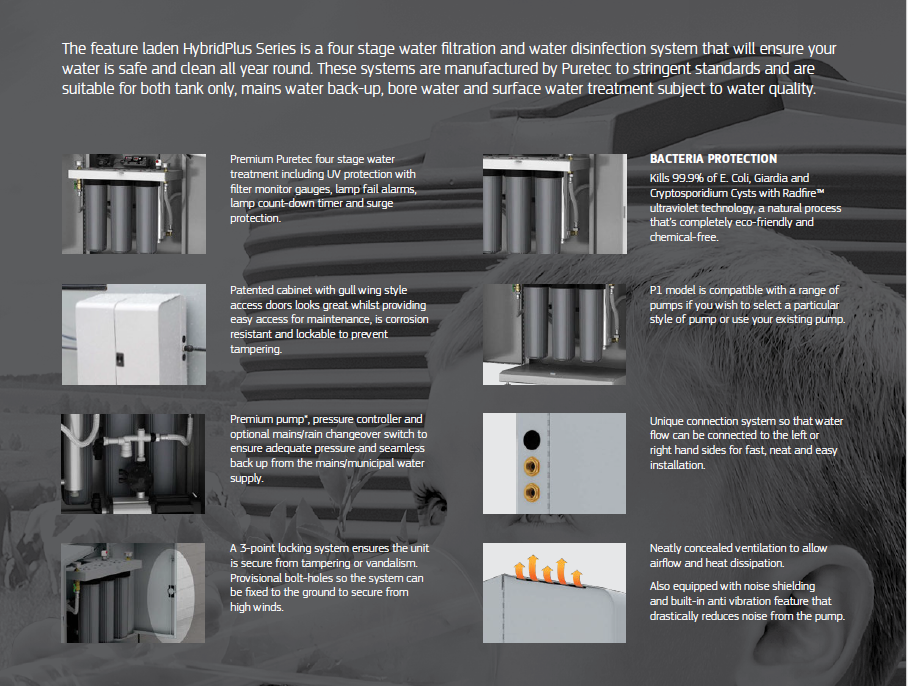

FEATURES

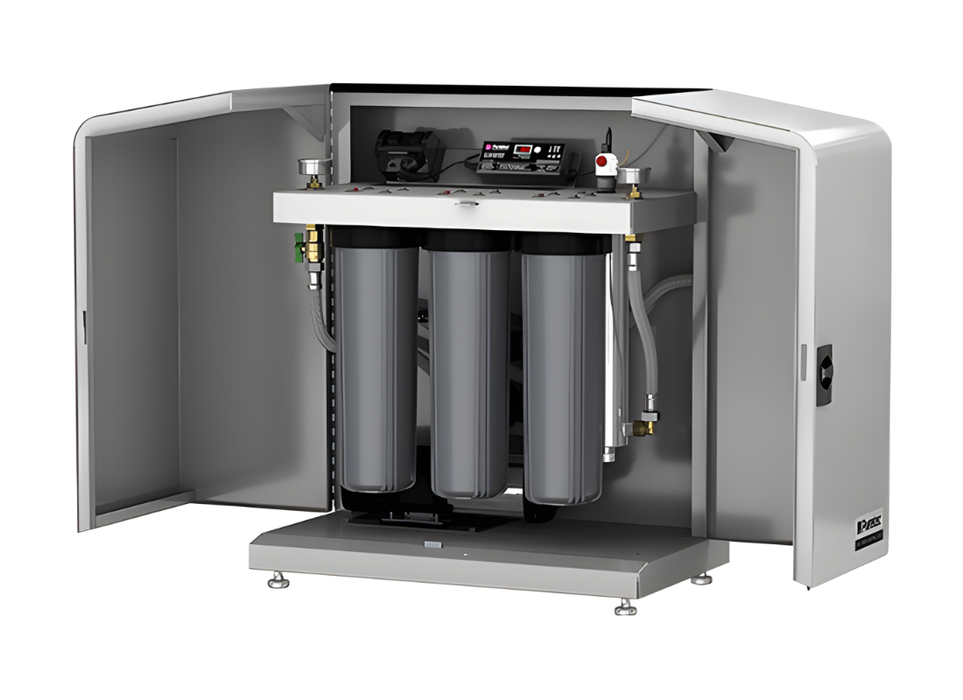

• All-in-one system with pump, filtration and UV sterilisation

• Includes 0.90kW Grundfos CMB-SP 5-47 pressure pump

• Advanced Radfire™ UV technology for chemical-free disinfection

• Kills 99.9% of bacteria and pathogens

• Designed specifically for rainwater systems

• Weatherproof, rodent-proof and tamper-resistant cabinet

• Lockable gull-wing doors for easy maintenance access

• Built-in pressure controller (PM2) for consistent water pressure

• Filter monitor gauges, lamp fail alarm & countdown timer

• Noise-reducing cabinet with anti-vibration design

• Flexible left or right-hand plumbing connections for easy installation

• Suitable for tank, bore, mains backup and surface water (subject to quality)

SPECIFICATIONS

• Pump Power: 0.90 kW

• Pump Model: Grundfos CMB-SP 5-47

• Max Flow Rate (Pump): 86 L/min

• UV Flow Rate:

  • 54 L/min @ 40mJ/cm²

  • 70 L/min @ 30mJ/cm²

• Connection Size: 1” BSP (25mm)

• Power Supply: 220–240V / 50Hz

• Self-Priming: Up to 4m

• Water Temperature: 0–52°C

• Cabinet Dimensions: Approx. 1180(H) x 850(W) x 480(D) mm

• Warranty: 3 years (pump covered separately by manufacturer

APPLICATIONS

• Whole house rainwater filtration systems

• Rural and residential properties

• Tank water supply with pressure boosting

• Bore and surface water treatment (subject to water quality)

• Homes requiring safe, disinfected drinking water
