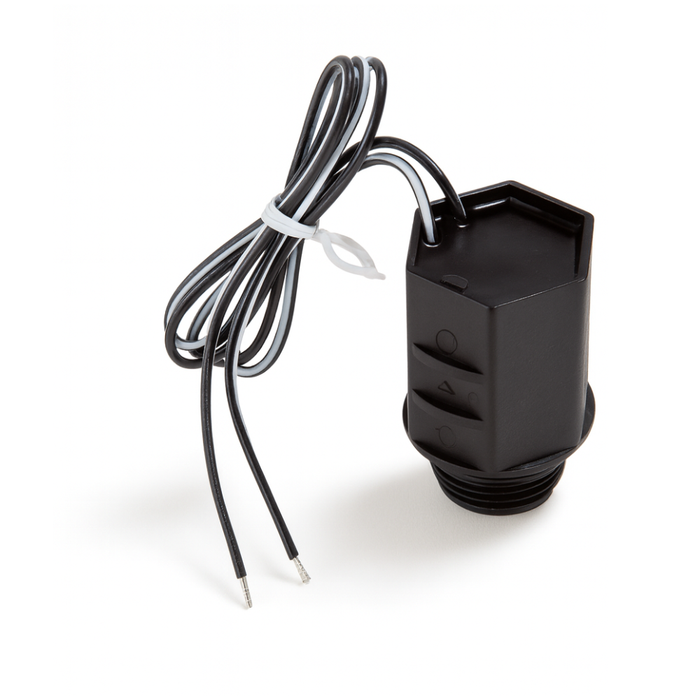

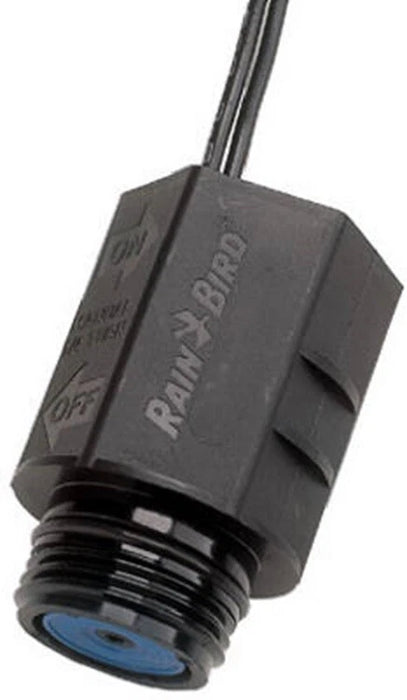

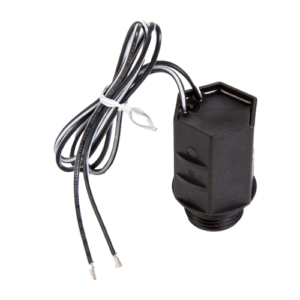

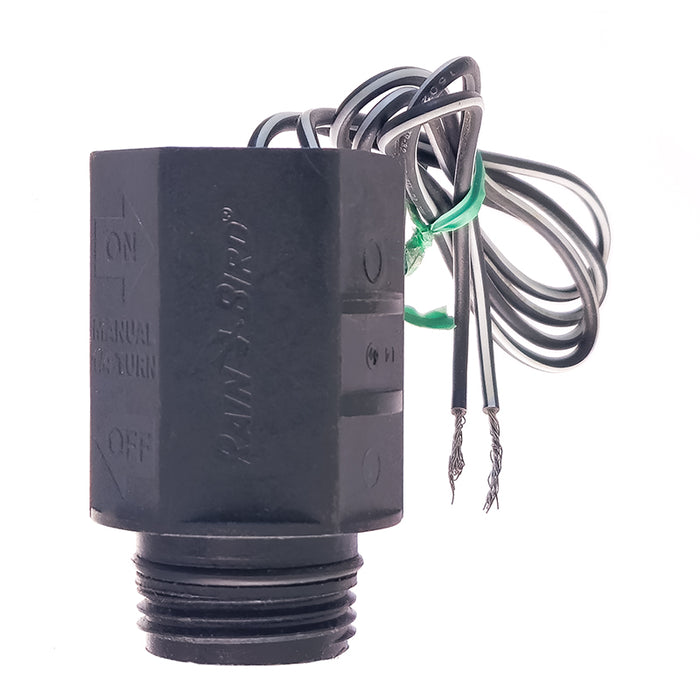

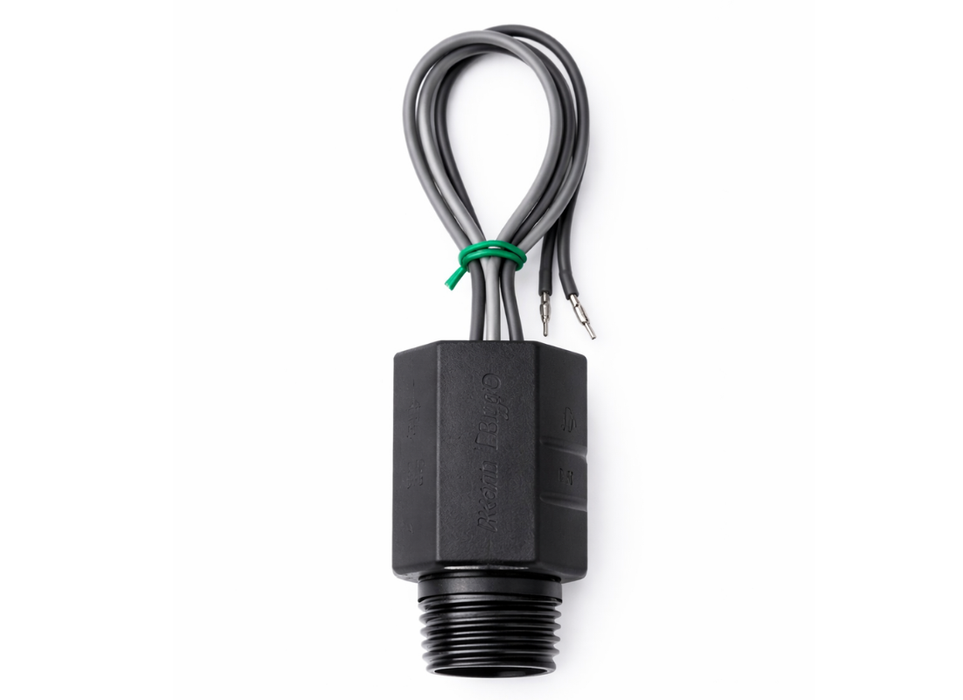

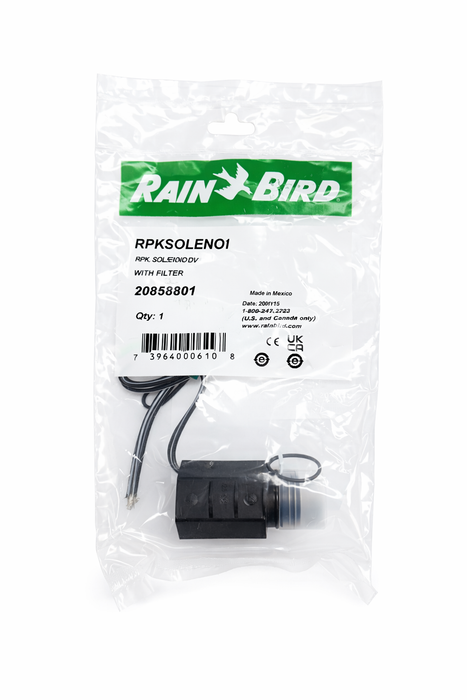

Rain Bird 24VAC Solenoid Coil with Filter for DVF Valves

The Rain Bird 24VAC Solenoid Coil is a high-performance replacement component designed for use with Rain Bird DV, and DVF Series solenoid valves. Engineered for maximum reliability and longevity, this low-power encapsulated solenoid ensures consistent valve operation across a wide range of irrigation systems. Its energy-efficient design minimizes electrical load, making it ideal for both domestic and commercial irrigation controllers.

Featuring a double-filtered pilot flow system and an integrated 90-mesh (200-micron) filter, the solenoid resists clogging from grit and debris to deliver dependable opening and closing action in all conditions. The fully encapsulated coil design protects the internal components from moisture, dust, and corrosion, while the captured plunger and spring prevent part loss during maintenance or installation.

Designed for quick, tool-free installation, this solenoid coil provides smooth, trouble-free performance and is compatible with all standard 24-volt AC irrigation controllers. It’s the perfect replacement part to restore your Rain Bird valve’s efficiency and reliability in any professional irrigation system.

FEATURES

• Genuine Rain Bird replacement solenoid coil for DV, and DVF series valves
• Energy-efficient 24V AC encapsulated design with low power consumption
• Built-in 90-mesh (200-micron) pilot water filter for debris resistance
• Captured plunger and spring prevent loss during servicing
• Fully sealed, weather-resistant body for long-term reliability
• Compatible with all standard 24VAC irrigation controllers
• Quick, easy replacement for existing Rain Bird solenoids

SPECIFICATIONS

• Voltage: 24V AC, 50/60Hz
• Inrush Current: 0.45A
• Holding Current: 0.25A
• Coil Resistance: 38 Ohms
• Filter: 90-mesh (200-micron) pilot water filter
• Compatible Valves: Rain Bird DV, DVF Series
• Operating Temperature: Up to 52°C ambient / 43°C water
• Connection Type: Two-wire lead (for standard AC controllers)
