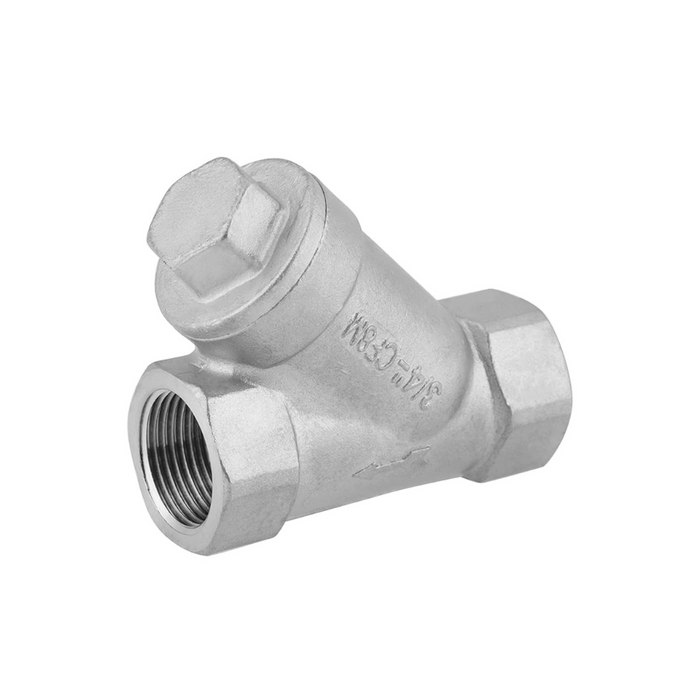

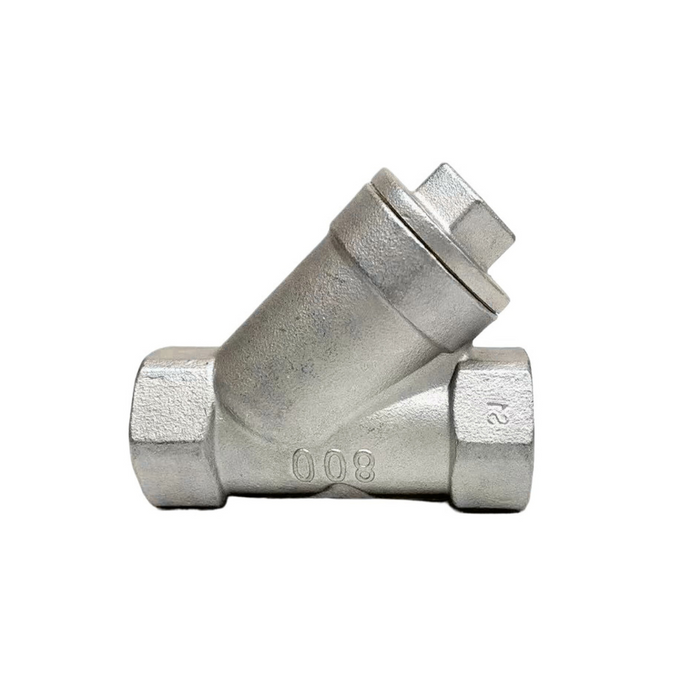

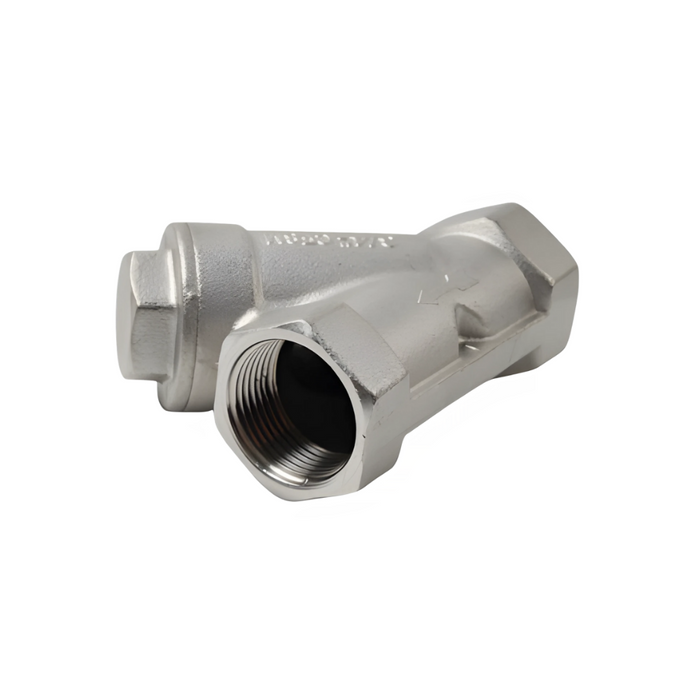

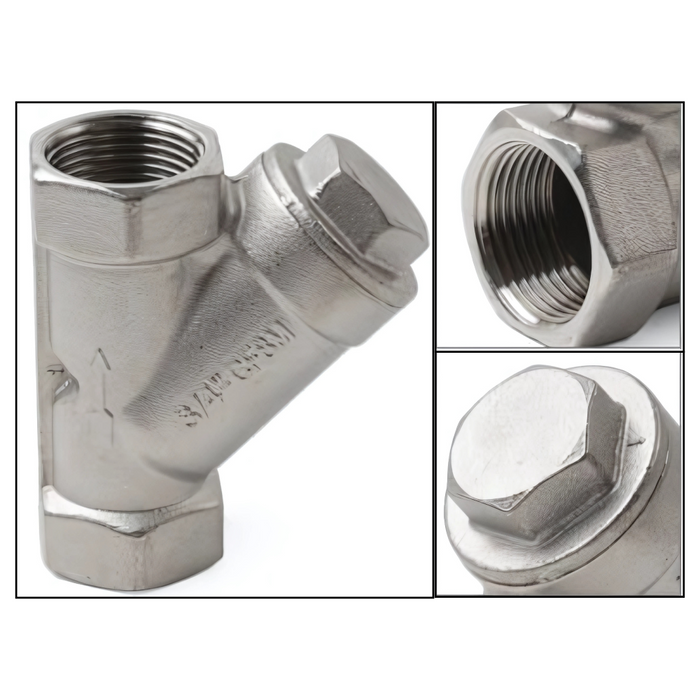

Stainless Steel 316 Y-Strainer Check Valve BSP

The Stainless Steel 316 Y-Strainer Check Valve BSP is a premium-grade dual-function valve designed to protect pumping and pipeline systems. Combining the features of a Y-strainer and a check valve in one compact unit, it provides reliable backflow prevention while filtering debris from the fluid stream. Constructed from high-quality 316 stainless steel, this valve offers outstanding resistance to corrosion, ensuring long service life in demanding environments such as irrigation, chemical processing, marine, food & beverage, and general industrial applications.

FEATURES

• Dual Functionality – Combines a Y-strainer and check valve for both filtration and backflow protection.
• Durable 316 Stainless Steel Construction – Excellent corrosion resistance in harsh or saline environments.
• Compact BSP Design – Easy installation into threaded pipeline systems.
• Removable Strainer Screen – Allows for quick cleaning and minimal maintenance downtime.
• Reliable Check Mechanism – Prevents reverse flow and protects pumps, meters, and downstream equipment.
• High Pressure Rating – Suitable for a wide range of commercial, industrial, and agricultural applications.

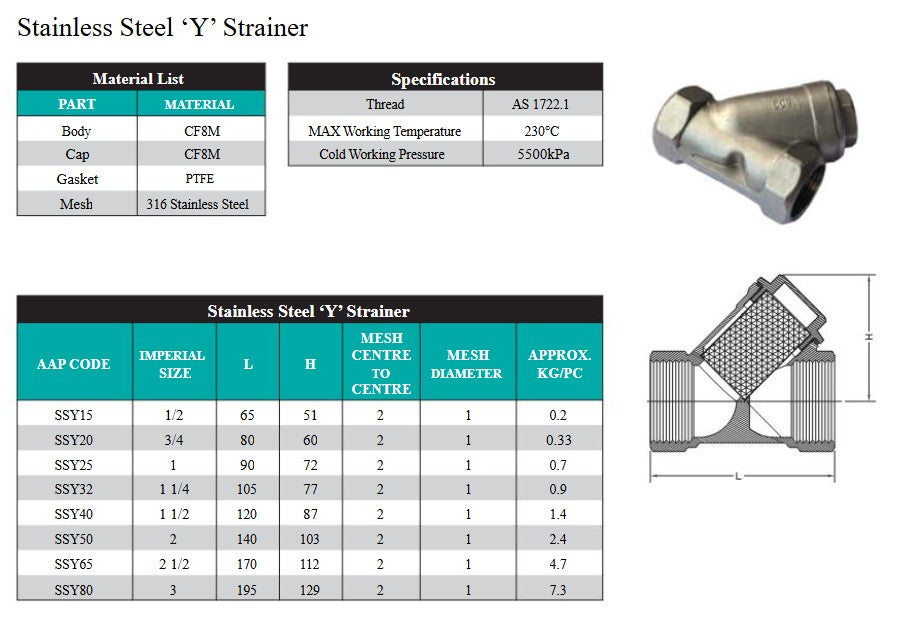

SPECIFICATIONS

• Material: 316 Stainless Steel body, cap, and internal components
• Connection: BSP threaded (Female)
• Sizes Available: 15mm – 80mm
• Design: Y-strainer with integrated check valve
• Service: Suitable for water, non-corrosive fluids, light chemicals, and compressed air
• Pressure Rating: Typically rated up to PN16 / 1600kPa (varies by size)
• Temperature Range: -20°C to +200°C (depending on media and installation)

APPLICATIONS

• Irrigation systems – Protects pumps, solenoid valves, and emitters from debris.
• Industrial processing – Safeguards sensitive equipment from particulate contamination.
• Food & beverage – Suitable for hygienic water handling and process protection.
• Marine & coastal installations – Corrosion-resistant solution for saltwater or brackish water systems.
• Plumbing & water supply – Provides backflow prevention and filtration in general pipeline systems.
• Chemical handling – Compatible with light chemicals requiring robust, corrosion-resistant components.

MODELS
