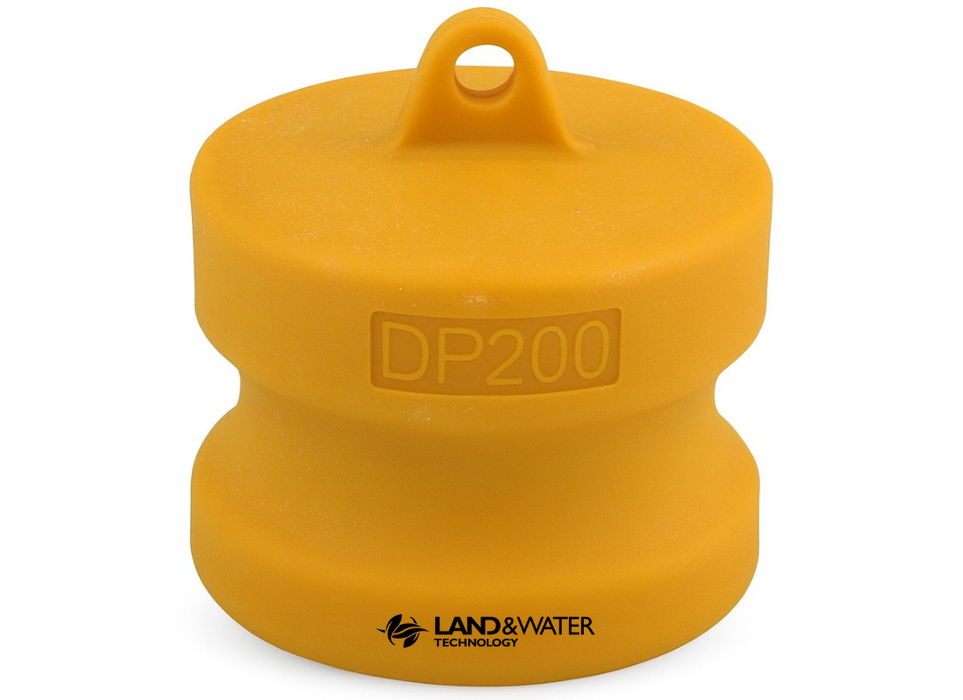

Type DP HR Nyglass Yellow Camlock Dust Plugs x Male

Nyglass (Glass Filled Nylon) is used widely by the agricultural and chemical industries.

Camlocks also called cam and groove couplings, are a kind of hose coupling used to rapidly connect and disconnect fittings on piping or hose, they come in a variety of materials to be used with different media and a variety of sizes to accommodate hose or piping diameter.

Camlock fittings are capable of carrying liquids, powders and granules and are interchangeable with all other cam and groove couplings made to the same standard (A-A-59326A – formally MIL-C-27487), ensuring compatibility with couplings made to the same specification.

Camlock fittings are categorised as:

• Type "A", has a male camlock end and a female pipe thread (BSP) of the same size.
• Type "B", has a female camlock end and a male pipe thread of the same size.
• Type "C", has a female camlock end and a male hose tail on the other.
• Type "D", has a female camlock end and a female pipe thread of the same size.
• Type "E", has a male camlock end and a male hose tail on the other.
• Type "F", has a male camlock end and a male pipe thread of the same size.
• Type "DC" is an end cap with female camlock.
• Type "DP" is an end cap with male camlock.

• Threads - ISO 228
• Maximum Temperature - 100 Deg C based upon the use of Buna (NBR) Seals
