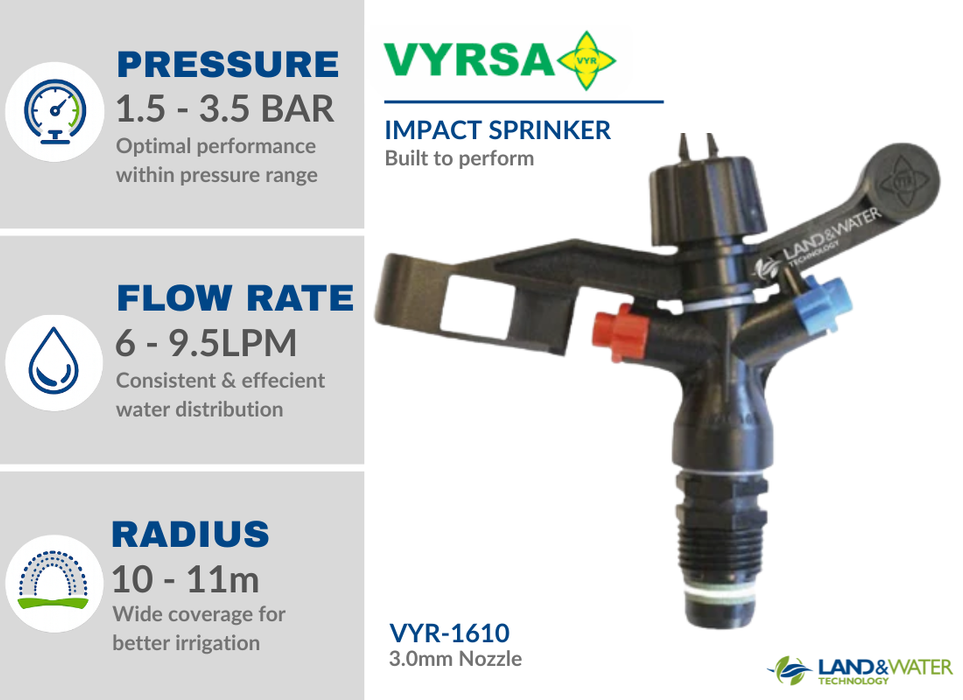

VYRSA 1610 Plastic Full Circle 15mm Male Single Nozzle 8deg Trajectory with 3.0mm Green Nozzle

The Vyrsa 1610 is a full circle low angle sprinkler for undertree and solid set watering systems. The sprinkler VYR-1610 is a ½” Male connection, low flow sprinkler and specially designed to operate under extreme temperature conditions.

The sprinkler is designed to work under flow ranges between 3 and 24 l/min and at pressures between 100 and 350 KPA, with a coverage range between 21 and 24 meters in diameter.

The sprinkler VYR-1610 can work with one or two nozzles with an average rotation time comes to be approximately 40 sec.

Features

• 15mm Male BSP thread
• Complete with 3.0mm Nozzle (green)
• Delrin - plastic construction
• Single nozzle
• 8º Trajectory
• Equivalent: NAAN 5024
• Individual nozzles available on request
• Inlet size: 15mm BSPM
• Spray Radius: 10.5m – 12m
• Flow rate: 2.8-24.2 LpH
• Recommended pressure: 150-350kPa
